The Berolina Liners consist of resin-saturated fiberglass and/or polyester webs between two waterproof and styrol-proof film tubes. They are ready to be installed upon delivery but can also be stored for several months.

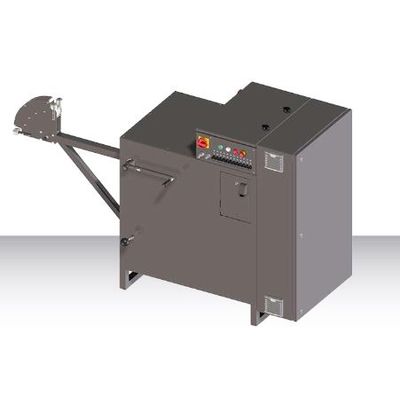

Cable reel for 180 m/590 ft curing cable (max. 200 m/656 ft cable length possible).Extension arm with deflection roller to ensure minimum bending radius of the cable. All connections are hard-wired• emergency operation via hand crank in case of power failure. PLC with control pane.

Cable reel for 180 m/590 ft curing cable (max. 200 m/656 ft cable length possible). Extension arm with deflection roller to ensure minimum bending radius of the cable. All connections are hard-wired. Emergency operation via hand crank in case of power failure. PLC with control panel.

Cable reel  for 200 m/656 ft curing cable (max. 230 m/755 ft cable length possible). stainless steel chassis. Cable reel speed 0.055-4.0 m/min, controllable via PLC/PC. Extension arm with deflection roller to ensure minimum bending radius of the cable. Emergency operation via hand crank in case of power failure. Tensile force measurement.

Robot: Axial camera Rl 4035 VB FW. Steerable carriage with 6 driven wheels D 63. Inclination sensor, display on monitor. Lateral inclination sensor for automatic position adjustment. Additional wheels D 53 and D 73. Pressure sensor with pressure drop alarm function. Strain relief. Lowering hook.

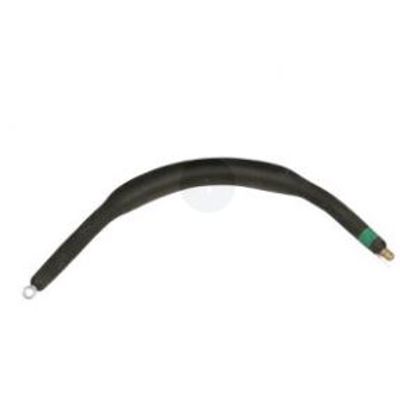

Bend packers thanks to their construction are suitable for repairing bend parts of pipelines at an angle from 45° to 90°. This construction and excellent rubber material of packers ensure that the repaired part is plain and without any bumps.

Flexible packers are provided with a singlelayer rubberized-fabric sleeve with metal faces with wheels at both their ends at an angle of 120°. The wheels ensure the stability of the packer in the pipeline. This design allows water to flow freely during the repair. The effective surface ranges is from 600 mm to 3680 mm. Their flexibility allows easy installation in the pipeline.

The hatliner packers are used to repair the house connections to the main pipeline. They are similar to the short packers. They differ mainly by the fact that a special hat can be mounted in the middle of the mantle. This hat can be inflated separately. Due to this system the repair of the connection is easy and efficient. The sizes of the hat packers and the hats can be combined with each other according to the dimensions of the pipe connection that needs to be repaired.

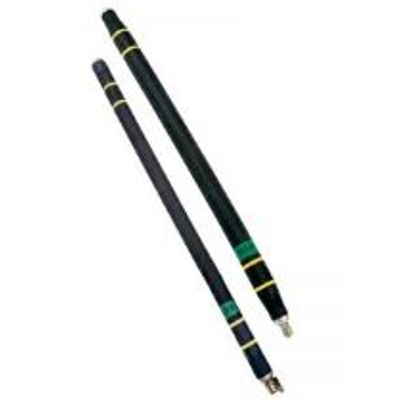

Lateral packers are suitable for maintaining and repairing smalldiameter pipes especially with house piping. They consist of a rubberizedfabric tube rounded at both its ends to facilitate manipulation in pipe bends. The effective surface ranges from 220 mm to 3720 mm.

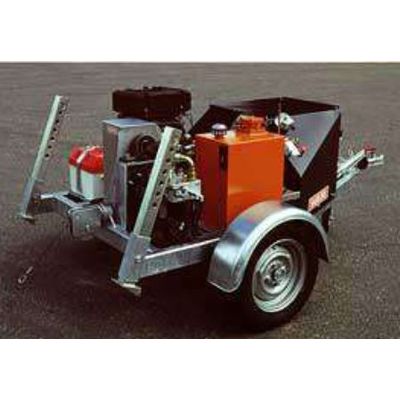

A modern winch specially designed for under-ground use. Maximum pulling force 2 tons.
