JBP - Model IMS UVA 12000 -UV-Curing Systems

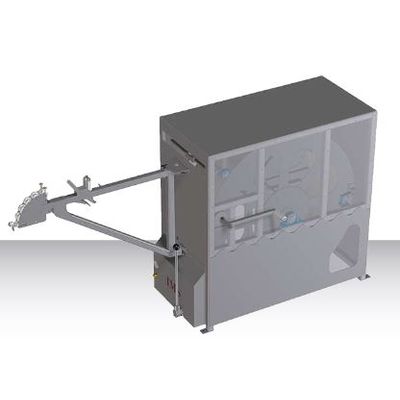

Cable reel  for 200 m/656 ft curing cable (max. 230 m/755 ft cable length possible). stainless steel chassis. Cable reel speed 0.055-4.0 m/min, controllable via PLC/PC. Extension arm with deflection roller to ensure minimum bending radius of the cable. Emergency operation via hand crank in case of power failure. Tensile force measurement.
