JIANGSU KITECH MACHINERY CO.,LTD. products

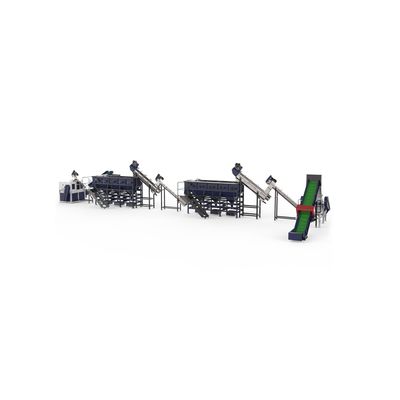

KITECH`s PP PE Film Washing System is designed for efficient and effective cleaning of various plastic films such as LDPE, LLDPE, and PP. Featuring a modular design, the system includes pre-processing, size reduction, washing, drying, sorting, and monitoring modules, allowing flexibility and customization based on specific needs. Advanced technologies, such as programmable control and near-infrared spectrum sorting, ensure materials undergo thorough cleaning and purifying processes. The system also supports real-time monitoring and connectivity to ERP systems for enhanced production management. Utilizing high-quality components, KITECH systems can operate continuously for extended periods while maintaining minimal downtime and reduced operational costs. Environmentally considerate, it has low energy, water, and labor consumption, making it an economically viable solution for recycling plastic films on a large scale.

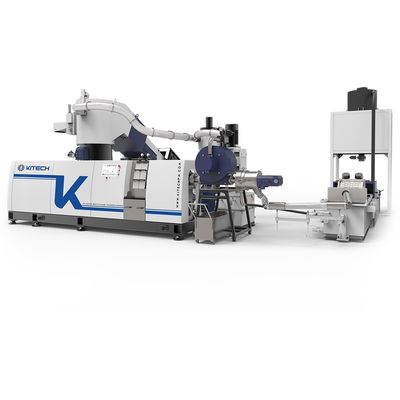

The 5G KCP Compacting Pelletizing System by KITECH is an advanced solution for recycling various plastic materials, including LDPE, LLDPE, HDPE, and more. This system integrates processes such as crushing, compacting, filtration, and pelletizing into a single, efficient stage. Compared to its predecessors, it boasts a 50% increase in throughput and a 20% reduction in energy consumption. The system`s modular design includes an optimized vacuum degassing system for effective removal of volatiles and self-cleaning laser filters that maintain high throughput without frequent screen changes. The screw design features a length-to-diameter ratio of 50:1, enhancing throughput, while a sophisticated controlling system allows for centralized monitoring and remote diagnostics. The water ring and other pelletizing solutions cater to different polymer MFI and user needs, producing high-quality pellets. This makes the 5G KCP an ideal choice for recycling operations focusing on efficiency and quality

The KCP Series PE PP Film Pelletizing Machine from KITECH is an integrative solution bridging crushing, compacting, and pelletizing in a single step for multiple applications including plastic film, raffia, filament, and foam recycling. Designed for efficient handling of LDPE, LLDPE, HDPE, and PP materials, the machine features a belt conveyor with adjustable speed, promoting effective material feeding. The system boasts a high-efficiency barrel and screw, engineered for optimal plasticizing performance and high output capacity, with durability enhanced via high wear-resistant alloy. Incorporating a dual vacuum degassing system, it efficiently removes low molecular moisture and ink residues. A modular filtration setup offers various filtering methods, including automatic self-cleaning, tailored to material impurities. With advanced European-designed water ring pelletization and an intelligent Siemens PLC control system.

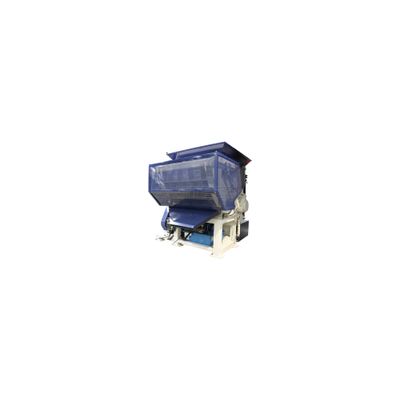

The AGS Single Shaft Shredder by Jiangsu Kitech Machinery is a specialized machine designed for efficient plastic and film waste processing. It features a 457mm diameter profiled rotor operating at 74 RPM, equipped with aggressive 4-way rotating knives mounted in machined grooves. This configuration ensures a high flow rate and low power consumption, optimizing output. The shredder incorporates a hydraulically operated ram that feeds material into the rotor`s cutting chamber, with load-related controls enhancing efficiency. A robust hydraulic system features high-pressure valves and volumetric flow controls tailored to input material requirements. Notably, the shredder`s pedestal bearing housings are mounted externally, preventing dust ingress and enhancing longevity. Power is transmitted through a drive belt connected to an oversized gearbox positioned at the rotor`s shaft end.
