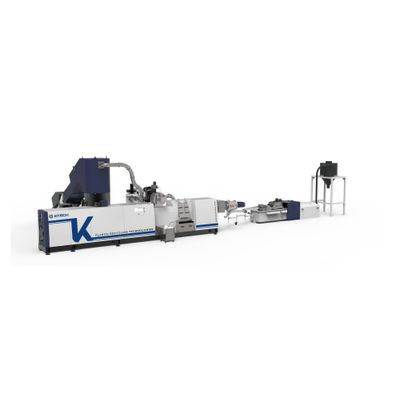

KITECH - 5G KCP Compacting Pelletizing System for Efficient Plastic Recycling
The 5G KCP Compacting Pelletizing System by KITECH is an advanced solution for recycling various plastic materials, including LDPE, LLDPE, HDPE, and more. This system integrates processes such as crushing, compacting, filtration, and pelletizing into a single, efficient stage. Compared to its predecessors, it boasts a 50% increase in throughput and a 20% reduction in energy consumption. The system`s modular design includes an optimized vacuum degassing system for effective removal of volatiles and self-cleaning laser filters that maintain high throughput without frequent screen changes. The screw design features a length-to-diameter ratio of 50:1, enhancing throughput, while a sophisticated controlling system allows for centralized monitoring and remote diagnostics. The water ring and other pelletizing solutions cater to different polymer MFI and user needs, producing high-quality pellets. This makes the 5G KCP an ideal choice for recycling operations focusing on efficiency and quality
- One stage with two times filtration cleaning
- High automation self cleaning system
- High capacity increased and low energy consumption
LDPE/LLDPE/HDPE/PP Films/bags/raffia, PP/PE/ABS/HIPS regrind flakes, EPS/EPS foam materials etc
The KCP series Plastic recycling compacting and water ring pelletizing machine combines function of crushing, compacting, filtration and pelletizing into one step.
Compared with old generation pelletizing system, the throughput has increased by 50% and the energy consumption ratio has decreased by 20%.
It provides best solution for LDPE, LLDPE, HDPE, PP, CPP, BOPP, PS, EPS, XPS, ABS, POM, PA film, raffia, filament, bag, woven bag and foam materials recycling.
- BOPP Film
- Bubble Film
- LLDPE Film
- Shopping Bag
- Washed Film
- Waste Bag
- HDPE Regrind
- Nonwoven Fabric
- EPS Foam
- Woven Fabric
- Filament & Yarn
- Squeezed Film
Machine Model: New 5G KCP180 Plus
Brand: KITECH
Applicable material: LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, PPS, ABS, PA, PLA
Capacity: 600-1500KG/H
Screw diameter: 100-180MM
Screw design: Single Screw
L/D ratio: 50
Screw rpm: 94-120
Screw material: 38CrMoAl
Gearbox type: High torque vertical
Motor brand: WEG/SIEMENS
Filtration system: 2
Degassing zone: 2
Pelletizer type: Water ring pelletizer
Total power: 450-954KW
Delivery time: 3-4 months ready for inspection
Guarantee: 1 year
Certificate: CE/UL/CSA
