Jiangsu Yianteng products

Product Features: Excellent catalytic activity and catalytic selectivity. Excellent alkali corrosion resistance.  Long working life. Low chlorine evolution potential.

Application areas: Metal foil, Electrolytic copper foil, Galvanized steel plate, Cathodic protection, Organic electrolytic synthesis, Chromium plating, Etching solution regeneration and Non-ferrous metal recovery, Cyclone electrolysis, Hydrometallurgy, HHO generator, Sewage treatment and other industries.

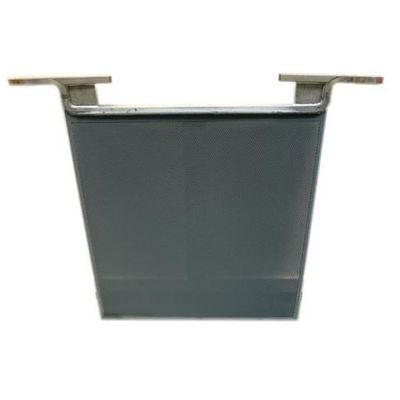

Platinum-titanium insoluble anodes are based on titanium metal as anodes in the form of nets, plates, rods, filaments, and tubes. The thickness of the standard platinum layer is 2-5µm. Under higher requirements, the thickness of the platinum layer can reach 20µm. The service life of the platinum-plated titanium anode depends on the working medium (electrolyte) and the current strength (current density) of the anode. The current density should not exceed 75A / dm2. Below this value, the wear of the platinum layer is very small, and the service life of the anode can also be estimated. According to experience, the wear of the platinum layer is about 1-4 grams per million amp-hours in a fluorine-free chromium plating solution. When the current density is higher than 75A / dm2 or using a fluorine-containing electrolyte, we recommend using a platinum-plated niobium anode (see Platinum-plated niobium anode).

The lead dioxide electrode has the characteristics of low resistivity, stable chemical properties, good corrosion resistance, good conductivity and can pass through large current. It has three-dimensional structure coating (precious metal oxide + α - PbO2 + β - PbO2), which greatly improves the adhesion of the coating. It can be used in electrowinning copper, nickel, cobalt and other fields in hydrometallurgy industry, as well as in electroplating, metallurgy, domestic sewage treatment, persulfate production, phenol wastewater fading treatment, oilfield wastewater, printing and dyeing wastewater, ammonia nitrogen wastewater treatment and other fields.

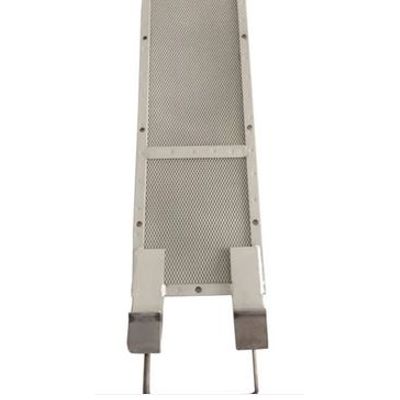

The platinum niobium mesh is coated with platinum on the niobium mesh, which is especially suitable for high-speed and high current density electroplating baths. The niobium mesh has excellent chemical resistance and electrical conductivity. The current that can be carried by a single area is titanium mesh 4-5 times, so it is the best choice for high plating of precious metals! The service life is 4-5 times that of platinum titanium mesh, and the bearing current is 4-5 times that of titanium mesh, so the comprehensive performance can save 2.5 times the cost compared with platinum titanium mesh. Industries used: aluminum wheel plating, precious metal plating, perchlorate

The conductive matrix of the BDD electrode contains a thin polycrystalline diamond layer. This newly added diamond coating is a new electrode material that exhibits excellent oxygen and hydrogen overpotentials, unique chemical stability, and strong wear resistance.

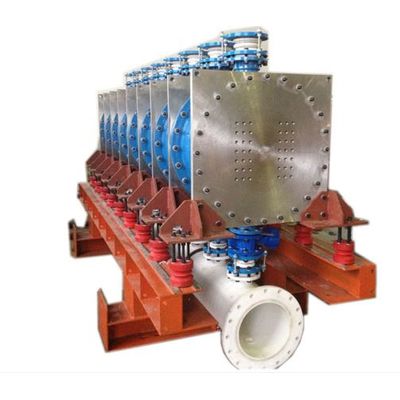

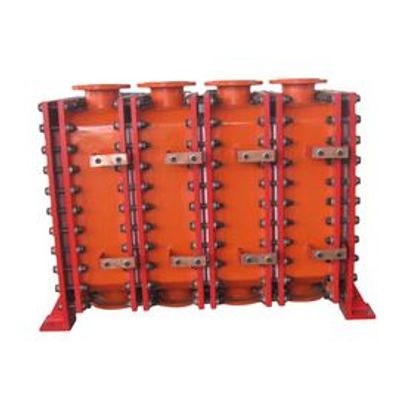

Based on the rich experience accumulated for many years, our company has concluded a sound design theory.It can cleverly design a variety of different reaction indoor and outdoor mechanisms according to different projects, different reaction mechanisms and conditions, and design to meet various media, A variety of electrolytic reaction devices with severe process conditions such as flow rate, reaction time, temperature, etc .; So far, our company has successfully completed Design and manufacture of electrosynthesis devices for various inorganic and organic substances such as diacid, ethanedinitrile, vanillin, cysteine, calcium gluconate, succinic acid, p-aminophenol, seawater desalination, ultrafine powder, etc. We sincerely hope to use our company`s expertise to develop more electrosynthetic products and make greater contributions to improving the technological level of the electrolytic industry!
