K PACK SYSTEMS P LTD products

We are one of the leading manufacturers and suppliers of TUBE SETTLER. The offered lamella settlers are specially designed for the filtration of raw water. Our offered lamella settlers are acclaimed for removing large molecules and particles from water. The offered lamella settlers utilize the physical and chemical barriers for water filtration. Features: Removes impurities from water, Stainless steel construction, Durable

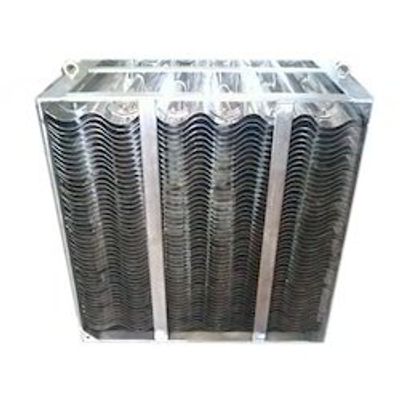

The cross flow plate pack consist of a number corrugated plates mounted parallel to each other at spacing of 2-8 cm based on application. The waste water containing the floating material and suspended solids passes in horizontal direction between the plates. Laminar flow conditions are established while the water flows across the pack from the inlet to the outlet. Laminar flow conditions are essential for the effective gravity separation of the floating material and suspended particles from wastewater. The course of passing of wastewater from pack inlet to pack outlet, the floating material floats to the top of the corrugation and rises up through the inclined plates to the surface of the system where it is removed by a skimmer. The sludge moves towards the bottom of the corrugations and slides down through the inclined plates. From there the sludge is collected in a hopper and will be discharged intermittently through a blow off value.

The tilted plate oil interceptors is an oil-water gravity separator, is suitable for oily wastewater treatment and rainwater run-off. Tilted plate oil interceptors enables high efficiency gravity separation with corrugated plates, providing excellent treatability with a high flow rate.The simple structure makes it possible to reduce the construction cost and facilitates maintenance.Tilted plate oil interceptors is mainly used to remove bulk oil from the water. The tilted plates are located at short intervals, providing high oil-water separation efficiency. This makes it possible to stably treat rainwater even when the amount of rainwater treated is two or even four times larger than usual.

We feel proud to introduce ourselves as one of the prominent manufacturers and suppliers of Tilted Plate Interceptors. The offered tilted plate interceptors is used in separation of free oil from effluent water or suspended solids for oily water treatment in an OWS (oily Water System). Our offered tilted plate interceptors is made from high grade raw material and advanced technology, for ensuring longer serviceability and durability.

We design , manufacture and supply complete solutions for your ETP needs. We have a strong reference list across multiple industries ranging from food, textile , refining, processing etc.

We are actively engaged in manufacturing and supplying optimum quality Corrugated Plate Interceptors. The offered corrugated plate interceptors are precisely designed and manufactured by utilizing quality approved raw material and modern machinery. These corrugated plate interceptors are checked against various quality parameters by our quality auditors to maintain set quality standards. In addition to this, we offer these corrugated plate interceptors at reasonable rate.

With our years of expertise and specialization, we are offering a wide range of Sequential Batch Reactors. SBR is an activated sludge wastewater treatment system which is used for removing dissolved and suspended organic material and nutrients. In SBR all the unit operations such as aeration, settling and decanting are achieved in a single reactor, all by automatic operations. Due to this new technology industrial wastewater can now be treated biologically in ideal conditions, regardless of flow or load variations. Phosphorous and nitrates can be removed biologically as well.

We are manufacturers of Sewage treatment plant using SBR ( Sequential Batch Reactor) & Membrane Bio Reactor(MBR) technology.MBR technology is based on the use of membrane systems combined with biological processes to get superior clear water discharge and it is commonly used in industrial and household wastewater treatment. MBR offers better discharge quality, smaller footprint area requirement. Treated water from MBR satisfies PCB norms.

Treated Water Quality: 90% REDUCTION, Type: Lamella, Industry: ANY, Treatment Capacity: ANY, Bridge Width: ANY, Tank Diameter: ANY, Country of Origin: Made in India

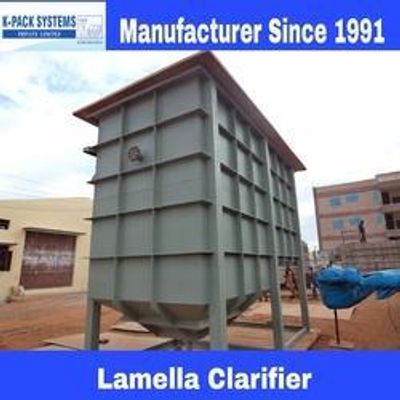

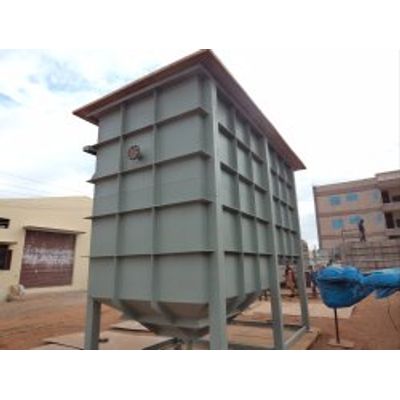

We are one of the leading manufacturers and suppliers of Lamella Settlers. The offered lamella settlers are specially designed for the filtration of raw water. Our offered lamella settlers are acclaimed for removing large molecules and particles from water. The offered lamella settlers utilize the physical and chemical barriers for water filtration. Features: Removes impurities from water, Stainless steel construction,Durable
