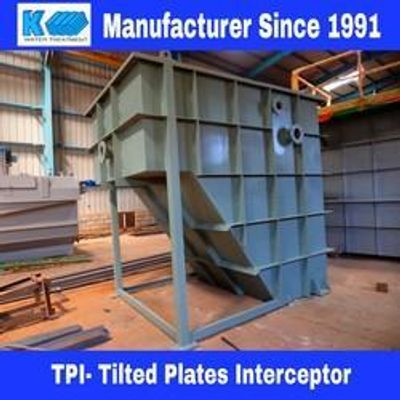

Tilted Plate Interceptor - TPI
The tilted plate oil interceptors is an oil-water gravity separator, is suitable for oily wastewater treatment and rainwater run-off. Tilted plate oil interceptors enables high efficiency gravity separation with corrugated plates, providing excellent treatability with a high flow rate.The simple structure makes it possible to reduce the construction cost and facilitates maintenance.Tilted plate oil interceptors is mainly used to remove bulk oil from the water. The tilted plates are located at short intervals, providing high oil-water separation efficiency. This makes it possible to stably treat rainwater even when the amount of rainwater treated is two or even four times larger than usual.
The Principle of Gravity Separation:
Separation by gravity utilises the density difference between oil and water. An oil globule (50 micron & above) in water will attain a constant rising velocity when the resistance to motion caused by the water is equal to the rising force created by the density difference.
The important characteristics for a separator using this principle are:
a) The distance through which the oil globules travel between two plates of the plate pack.
b) The rate at which the oil globules rise through this distance.
These two factors govern the resistance time in a separator and therefore, its size.
For efficient operation, the vertical distance travelled by the oil droplet should be made as short as possible.
The rising velocity is increased by the agglomerating small globules thus creating larger, faster rising oil globules (coalescence).
Any break up of these oil globules by even slight, local or general turbulence, will reduce the efficiency of the separator. Consequently, the flow through the unit and in the upstream piping system should be as laminar as possible. By using parallel corrugated plates inclined at 45-60 deg. the TPI optimises the conditions of short vertical travel under stable laminar flow and maximum separating surface area. The plates are used in "Counter-Current" mode to obtain a compact installation.
The TPI consist of a number of inclined corrugated plates mounted parallel to each other usually at spacing of 2 cm. The raw water containing the oil and suspended solids passes between the plates from top. Laminar flow conditions are essential for the effective gravity separation of the water, the oil and suspended contaminants. In the course of passing from pack inlet to pack outlet, the oil floats upwards into the tops of the corrugations and rises up the incline of the plate to the surface of the system where it is removed by a skimmer. The sludge moves towards the bottom of the corrugations and slides down the incline of the plate spacing. From there the sludge is collected in a hopper to be discharged intermittently through a blow off valve manually or settled sludge cannot recontaminate the treated water.
The oil droplets coalesce into larger droplets and flow counter-current through the pack into the surface. Here, a layer of oil forms which is then skimmed off through a slotted pipe skimmer.
DESIGN OF THE PLATE PACK
The plate pack consists of corrugated plates stacked parallel at 2 - 4 cm intervals. If desired the intervals can be altered afterwards by reducing or increasing the number of plates in the system.
The plates are mounted between 45 - 60 deg. to the horizontal. Consequently, collected oil flows upwards to the surface of the system and sludge will align into the sludge collecting hopper
APPLICATIONS-
MINERAL OIL REFINERIES; OIL EXTRACTION; OFFSHORE PLATFORMS.
-BALLAST WATER TREATMENT.
-PETROCHEMICALS INDUSTRY.
-GALVANIZING METAL AND MINING INDUSTRY.
-EDIBLE OIL REFINING.
-FOODSTUFF INDUSTRY.
-PAPER AND PULP INDUSTRY.
Additional Information:
Item Code: TPI
Pay Mode Terms: L/C (Letter of Credit),Other
Port of Dispatch: Mumbai or Chennai
Production Capacity: 4 PER WEEK
Delivery Time: 4-6 WEEKS
Packaging Details: Sea worthy packing or Polythene wrapping/Packaging will be in full compliance with International shipping standards in Wooden Package for Tilted Plates Interceptor.
Minimum Order Quantity: 1 Piece
Water Source: Commercial Waste Water, Industrial Effluent
Delivery Locations: ANYWHERE
Brand/make: K-Pack Systems Pvt Ltd
Automation Grade: Semi-Automatic, Automatic, Manual
Installation Service: Yes
Model/Type: TPI
Industry: Dairy Industry, Leather Industry, Pharmaceutical Industry, Slaughter House, Paper Mills, Chemical/Petroleum Industry, Distillery, Automobile, Sugar Industry
Capacity Inlet Flow Rate (cubic meter/hour): ANY
Treatment Stages: Primary Treatment
Feed Flow Rate (cubic-meter/day): ANY
Installation Type: Prefabricated, Complete Civil work with InstallationContainerized Plug & Play, Complete Civil work with Installation
Treated Water Quality: MORE THYAN 90%
Overall Dimensions (LxBxH) in meters: 2.5*1*2.5
Manufacturing Lead Time: 4-6 WEEKS
Material of Construction: Mild steel with epoxy paint/ Stainless steel
Control Module: Control Module Available
Color: TAILOR MADE
Material: Mild steel with epoxy paint/ Stainless steel
Certificates: ISO 9001;2008
Gross Weight: 2800
Name: TILTED PLATE INTERCEPTOR FOR OIL WATER SEPARATION
Warranty: 12 MONTHS
Certifications: ISO 9001;2008
Control Panel: ANYWHERE ACROSS GLOBE
