Kicab products

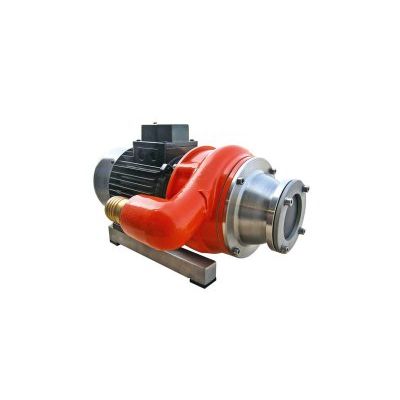

Multi-channel impeller and single chopping system. With frame and flexible coupling for standard electric motors.

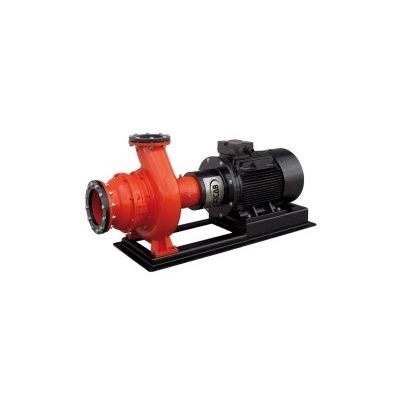

Multi-channel impeller and single chopping system. With frame and flexible coupling for standard electric motors.

Two-stage planetary gearbox. Blades in polyamide and fiberglass. Adjustable blades. Blade hub in stainless steel.

Containermixer for IBC containers / barrels with shaft and propeller in stainless steel.

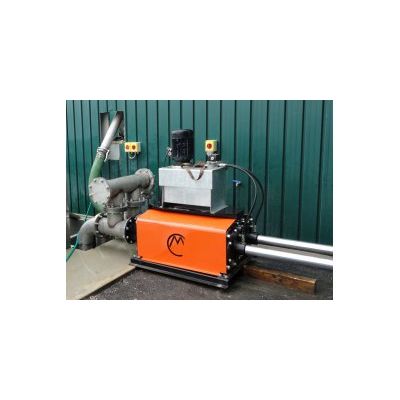

Can be combined with a BMC Macerator to form a system for maceration, homogenization, and loading for a biogas digester. It comprises a materials loading tank supplying the double pump pistons and an automatic valve system that permits alternating loading and unloading of the pistons.

Centrifuge HAUS are used in separation of the solid-liquid or solid-liquid-liquid suspensions. The machine is consist of a solid cylindrical bowl rotating at high speed, a scroll rotating in the same axis with a slightly different speed, gear box adjusting the speed difference and the body which carries all the rotating elements. The product is fed along the centre line to a fixed distribution room within the bowl and then accelerated into the bowl by centrifugal force through the feeding point. This centrifugal force then causes the suspended solids(the cake) to settle and accumulate at the bowl wall. The cake is discharged by scroll from the conical part meanwhile clarified solid and water or only liquid flows back along the bowl and is discharged through the cylindrical end of the bowl by plates which can adjust the level of liquids.

Bat DM Dynamic mixer provides complete mixing of chemicals in thick sludge or advanced mixing applications.

KICAB sludge mixer is a non stop mixer, which is to optimize the mixture of organic and inorganic flocculants and watery suspensions with different concentration. The mixer can also be mounted in which different media streams to be mixed before the flocculant is added. Flocculant added immediately before the mixer via a tangential injektorring with nozzles and mixed to a homogeneous suspension. Flocking reaction which occurs immediately after the flocculation agent addition is significantly affected by the energy (turbulence) that occurs in the mixer.

Capacity 2,5 – 350 m3/h. Pressure up to 24 Bar. Shaft sealing -mechanical seal. -stuffing box.

Stingray SBT mechanical belt thickenercombines traditional proven technology with new innovation, design & manufacturing. Mechanical thickening enables big savings in transport, dewatering & digestion efficiency. The sludge is led in through a unique polymer injection and mixing system. This ensures optimum effect without needing a flocculation reactor. The sludge on the belt passes a patented sleigh plate and retention ramp providing further control of the result.
