Low cost polypropylene level switch. Hermetically moulded, double chamber. Mercury free operated micro switch. Direct pump control up to 1.1 kW. Adjustable switch differential. Low specific weight of the floating body.

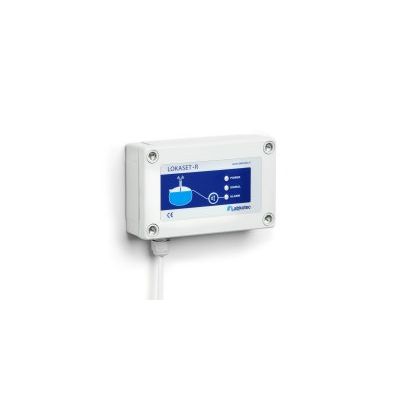

Lokaset R control unit is equipped with visual and acoustic signal alarms. The alarm can easily be forwarded with relay output to real estate automation systems or to Labkonet alarm monitoring system. The Lokaset 20 is a conductivity-operated limit switch. When using the SET/LV probe, the probe and its cable are provided with fault monitoring detection, indicating any breakage in the probe circuit.

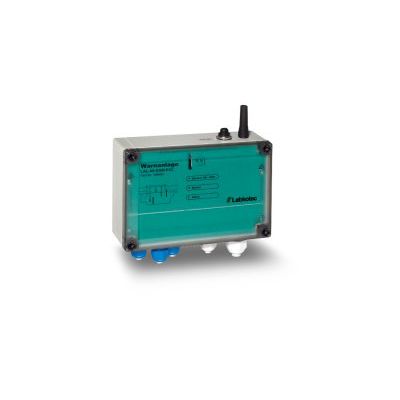

LAL-A6-GSM-EX3 Control unit for oil and petrol separators, for 230 V AC supply voltage; With built-in GSM modem. Sends SMS to up to three mobile phones. With visual alarm. Wall-mounted housing, IP67 protection. Connection of three digital sensors, type: LAL-1-D-EX, LAL8-D-EX and LAL9-D-EX. Intrinsically safe, for mounting in the safe area. Group, category, ignition protection class: II (1)G Ex ia IIB. Supply voltage 230 V AC.

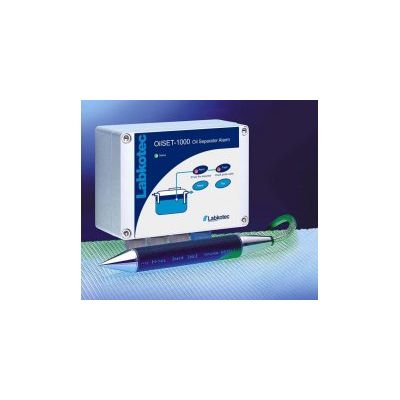

The OilSET-1000 level alarm instrument is specially designed for oil and water separators and grease traps. It is approved according to ATEX Directive 94/9/EC. The OilSET-1000 indicates when it is time to empty the separator and thus prevents harmful hydrocarbon emissions to the sewer system.

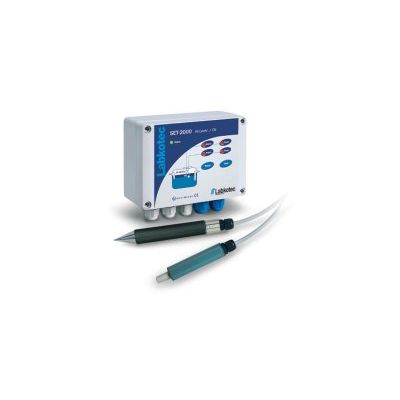

The SET-2000 Oil/Sludge is equipped with two probes, one indicates the oil layer and the other indicates when there is sand or sludge between the sensing elements of the SET/S2 ultrasonic sensor.

The SET-2000 Hi Level/Oil is equipped with two probes, one indicates the oil layer and the other indicates blockage detection. I.e. High level in case of sewer blockage or closure of the closing device.

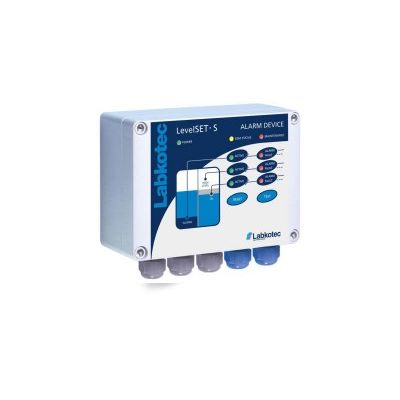

The LevelSET S oil separator alarm control unit was developed to meet strict regulations and demands of various environmental agencies throughout Europe. LevelSET S is equipped with Fail-Safe alarm facility, giving total system monitoring of all sensor inputs. LevelSET S recognises when an oil or sludge space is full, or if there is a high level condition within the separator due to a blockage.

Separator alarm system for applications where mains supply is not available: The new SolarSET alarm unit is a solar powered alarm and communication unit for monitoring the level of oil, sludge or damming in oil separators.

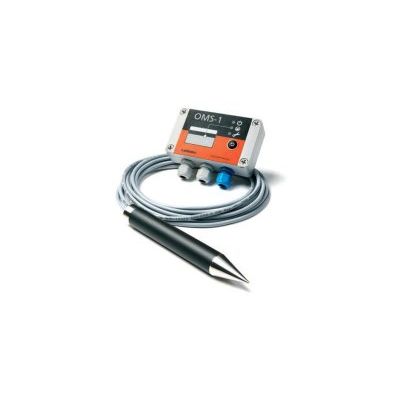

OMS-1 oil separator alarm device for monitoring oil layer in an oil separator. OMS-1 alarm device is speacially designed for oil separators. It indicates when it is time to empty the oil separator and thus prevents harmful hydrocarbon emissions to the sewer system.

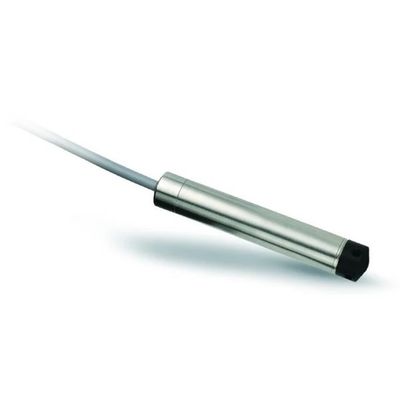

The measuring device is the DMU 08 pressure sensor, which meets both industrial and municipal water management requirements. It has a robust design and is easy to install. The probe’s accuracy is ±0.35% of the measuring range.
