Laiwu Huaya Polymer Sci.&Tech. Co.,Ltd products

Product specification: UHMWPE profile. Product color: according to the customer. Material: UHMWPE. Extrusion speed: 0—1m/hour(According to the product shape ,wall thickness and the corresponding changes in the operation). Center height: 1200mm. Operating direction: From right to left. Power: 3-phase 380V (± 5%) 50Hz three-phase five-wire system. Installed capacity: About 185KW (heating power about 100kw). Cooling water: ≤20? ≥0.3Mpa ~3L/min. Compressed air: 0.3m3/min >0.5MPa. Total length: About 18 m.

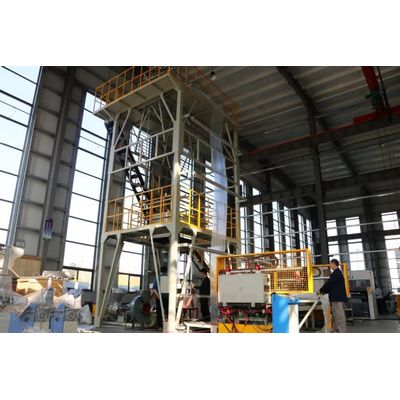

Three-layer co-extrusion blown film line by three single screw extruder, three layer composite co-extrusion blown film die head, cooling system, tractor, film reel and temperature and electric control system, mainly used in open width 2000-3400mmthree-layer co-extrusion film.

Conical double screw extruder : SJSZ65/132 : 1set. Die head & mould : 50,75,100,150 : 1 set. Stainless steel vacuum calibrating tank : 160x 6m : 1 set. Caterpillar haul-off machine : 3kw : 1 set. Planetary cutter : 2.2kw : 1 set. Stacker : 6m : 1 set. Plastic powder charger : ZJF300 : 1 set. Belling machine : 50--150 : 1 set. Mixer : SRL-Z200/500 : 1 set. Loader for mixer : ZD-1 : 1 set. Crusher : SWP400 : 1 set. Laser printer : 1 set.
