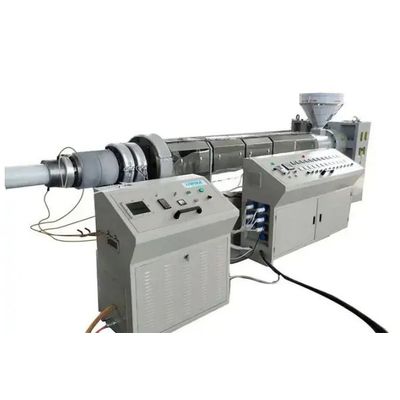

UHMWPE Pipe Extrusion Production Line

Product specification: UHMWPE profile. Product color: according to the customer. Material: UHMWPE. Extrusion speed: 0—1m/hour(According to the product shape ,wall thickness and the corresponding changes in the operation). Center height: 1200mm. Operating direction: From right to left. Power: 3-phase 380V (± 5%) 50Hz three-phase five-wire system. Installed capacity: About 185KW (heating power about 100kw). Cooling water: ≤20? ≥0.3Mpa ~3L/min. Compressed air: 0.3m3/min >0.5MPa. Total length: About 18 m.
