LEGEND MODEL T-414/S-414 gate valves are constructed of heavy duty bronze. They have a screw-over bonnet, non-rising stem, solid wedge disc and integral seats. The disc is fully guided on both sides for precise alignment. Recommended for commercial and industrial use on steam, water, oil or gas. May be repacked while in service under pressure.

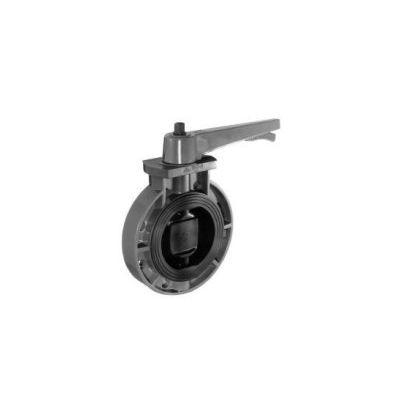

LEGEND MODELS S-650 AND S-651 PVC butterfly valves are constructed of ASTM D1784 virgin UPVC resin. Both models have excellent flow characteristics and provide a clear indication of disc position. Ideally suited for flow control using minimal piping space. Recommended for commercial and industrial applications such as sewage and water treatment, chemicals, marine, food processing, swimming pools, etc.

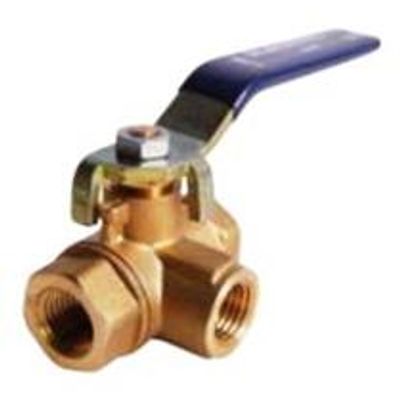

Traditional forged brass full port ball valve diverts media to the side-leg connection from either run connection. Directional arrow on handle indicates flowpath. Configurations and Sizes: FNPT x FNPT x FNPT, 1/4”- 2”. Cold Working Pressure (CWP): 600 PSI. Threaded end connections comply with ANSI/ASME B1.20.1.

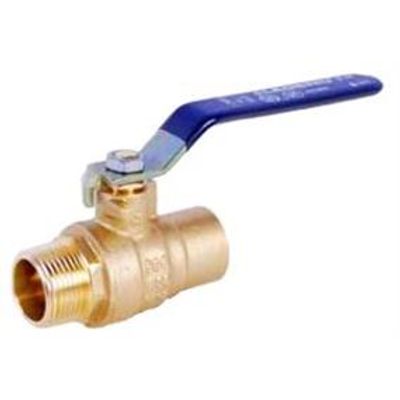

No lead forged brass full port ball valve for transitioning from a tank or boiler directly to copper tube. Configuration and Size: MNPT x Sweat, 3/4” x 3/4”. Saturated Steam (WSP): 150 PSI. Cold Working Pressure (CWP): 600 PSI. Threaded end connections comply with ANSI/ASME B1.20.1. Sweat end connections comply with ANSI/ASME B16.18. Third party certified no lead ANSI/NSF 61-G, IAPMO.

Traditional forged brass full port ball valve, 3/4” FNPT x 3/4” GHT. Garden hose includes GHT cap with gasket and tethered to valve end. *Capped GHT connection is rated 125 PSI. Saturated Steam (WSP): not recommended for steam applications. Cold Working Pressure (CWP): 600 PSI. Threaded end connections comply with ANSI/ASME B1.20.1. Garden hose end connections comply with ANSI/ASME B1.20.7.

LEGEND MODEL T-431 steam angle radiator valves are constructed of heavy duty bronze. They have a screwed bonnet, rising stem and composition disc. LEGEND MODEL T-431YB (Yellow Brass) is the same heavy pattern as the T-431 except it is brass instead of bronze. Each valve is tested twice: air under water, in the open and closed position .

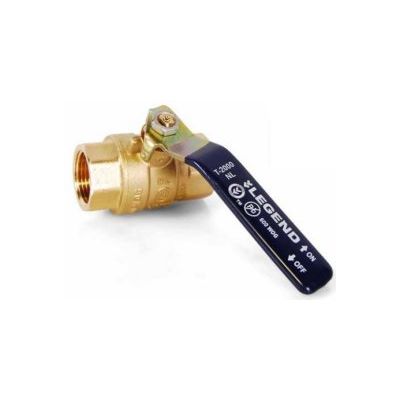

The 2000 series ball valve have both a PTFE packing gland with nut and an EPDM O-ring seal stem design. The full port ball valve body, end adaptor and chrome plated ball are constructed of forged brass. The stem is bottom loaded, thus blow-out proof. The EPDM O-ring stem and PTFE seats reduce friction when actuating the valve making it easier to turn. The vinyl covered, zinc plated steel handle and nut resists corrosion. The 2000 series ball valves have a large pattern body for tremendous durability in various residential, commercial and industrial applications. The 2000 Series valve design is offered in a several configurations and brass alloys for a wide range of uses in potable water and gas systems. Every valve is pressure tested at the ISO certified manufacturing facility. The T/S-2000NL valve in sizes 1/4”- 1” have a no lead forged brass ball; whereas, valve sizes 1-1/4”- 4” have a 304 stainless steel ball.

Legend has the most expansive offering of compact, durable and labor saving full port PEX ball valves. All Legend PEX ball valves feature the dual O-ring stem design that requires no packing nut removing the potential for call backs. The valves are constructed of binary brass to meet all no lead requirements. Three models are configurations based on the T-1001 model which feature dual Viton O-rings, a corrosion resistant Dacromet coated steel handle, and are constructed of no lead binary brass. These include the T-806NL and T-805NL. The T-2005NL, T-2006NL, T-2007NL, T-2008NL, & T-1960NL are based on the T-2000NL Full Port Ball Valve. These PEX models feature dual EPDM O-rings, zinc plated steel handle and are constructed of binary brass which are also dezincification resistant. All valves are third party certified no lead ANSI/NSF 61-G, NSF or IAPMO.

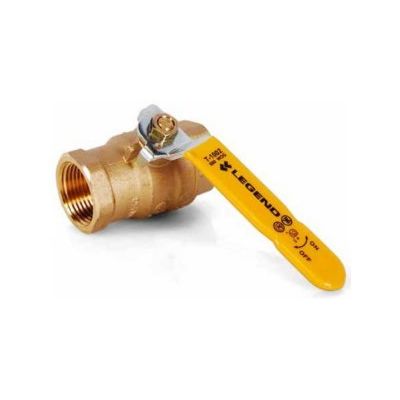

The 1002 Series Full Port Ball Valves are made of durable forged brass for lighter weight and greater strength. The stem is bottom loaded, thus blow-out proof. The gland follower design has a PTFE stem packing. The valve body, end adaptor and ball are forged brass. PTFE seats reduce friction, makes a positive seal and improve seat wear. The chrome plated steel handle has a vinyl covered sleeve. Every valve undergoes pressure testing. The 1002 Series is offered in a variety of configurations. The Legend 1002 ball valve series has been manufactured for more than twenty years in the same ISO certified manufacturing facility using best-in-class TQM processes. The T/S-1002 is constructed of UNS 37700 brass alloy. The T/S-1002NL is made using no lead binary brass alloy

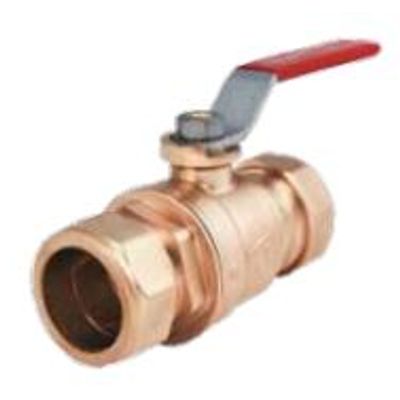

T-1009NL No Lead Forged Brass Compression x Compression Maintenance-Free Full Port Ball Valve. Maintenance-free dual o-ring full port ball valve with compression ends for convenient installation onto copper tubing. Constructed of no lead binary brass. Configuration and Sizes: Compression x Compression, 1/2”, 3/4”, & 1”. Third party certified no lead ANSI/NSF 61-G, NSF.
