Legend - Model T/S-1002 -Full Port Ball Valves

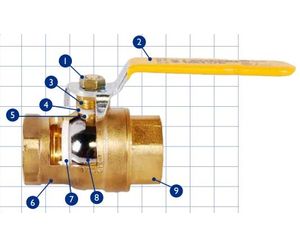

The 1002 Series Full Port Ball Valves are made of durable forged brass for lighter weight and greater strength. The stem is bottom loaded, thus blow-out proof. The gland follower design has a PTFE stem packing. The valve body, end adaptor and ball are forged brass. PTFE seats reduce friction, makes a positive seal and improve seat wear. The chrome plated steel handle has a vinyl covered sleeve. Every valve undergoes pressure testing. The 1002 Series is offered in a variety of configurations. The Legend 1002 ball valve series has been manufactured for more than twenty years in the same ISO certified manufacturing facility using best-in-class TQM processes. The T/S-1002 is constructed of UNS 37700 brass alloy. The T/S-1002NL is made using no lead binary brass alloy
