Leman Instruments products

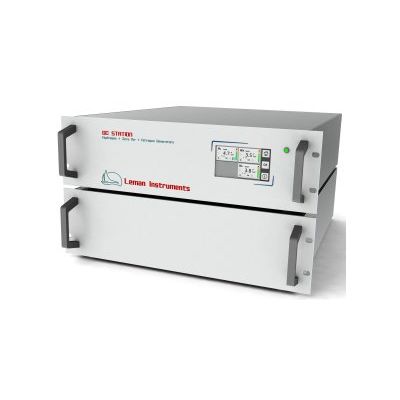

Characteristics: H2 Purity: > 99.9999%,< 0.1 ppm HC. No maintenance. H2 Capacity: 100,160 and 250 Nml/m. Output pressure: 8 bar maximum. Zero AIR Purity: < 0.05ppm HC, CH4 CO. AIR Capacity: 1 to 3 Nl/min. Output pressure: 5 bar max (100 psi max). Nitrogen Purity: < 0.05ppm HC, CH4 CO. N2 Capacity: 100 to 300 Nml/min. Output pressure: 5 bar max (100 psi max). Air source: GC STATION50R : external compressed dry Air . GC Station 50RC : onboard silent piston oil free compressor. Presentation: 19” 6U (2x3) rack casings. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: H2 Purity: > 99.9999%,< 0.1 ppm HC. No maintenance. H2 Capacity: 100,160 and 250 Nml/m. Output pressure: 8 bar maximum. ZERO AIR Purity: < 0.05ppm HC, CH4 CO. AIR Capacity: 1 to 3 Nl/min. Output pressure: 5 bar max (100 psi max). Nitrogen Purity: < 0.05ppm HC, CH4 CO. N2 Capacity: 100 to 300 Nml/min. Output pressure: 5 bar max (100 psi max). Air source: GC Station50L : external compressed dry Air. GC Station 50LC : onboard silent piston oil free compressor. Presentation: floor casing. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: H2 source: on board H2 generator. H2 Purity: > 99.999%,< 0.1 ppm HC. No maintenance. Mixture 40% H2 / 60% He +/- 0.25% H2. H2+He Capacity: 250, 500 and 750 Nml/min. Output pressure: 5 bar maximum. He source: external pressurized cylinder. Presentation: 19” 3U rack casing. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: H2 Purity: > 99.999%,< 0.1 ppm HC. No maintenance. H2 Capacity: 100,160, 250, 300, 500 and 600 Nml/m. Output pressure: 8 bar maximum. ZERO AIR Purity: < 0.05ppm HC, CH4 CO. AIR capacity: 1.5 to 6 Nl/min. Pressure: 5 bar max (70 psi max). Air source: FID Station50R : external compressed dry Air . FID Station 50RC : onboard silent piston oil free compressor. Presentation: 19” 3U rack casings. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: H2 Purity: > 99.999%,< 0.1 ppm HC. No maintenance . H2 Capacity: 100,160, 250, 300, 500 and 600 Nml/m. Output pressure : 8 bar maximum. Zero Air Purity : < 0.05ppm HC, CH4 CO. AIR capacity:1.5 to 6 Nl/min. Pressure: 7 bar max (100 psi max). Air source : FID Station50L : external compressed dry Air. FID Station 50LC : onboard silent piston oil free compressor. Presentation: stackable bench casings or floor casing. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: Purity: 99.995%,< 0.5 ppm HC. Capacity: 4.8, 7.2, 9.6, 12 and 15 Nl/min. Pressure: 10 bar max. Option: on board water deionization unit. Communication: Full colour display with touchscreen ; USB, RS485 and Ethernet.

Characteristics: Purity: > 99.9999%,< 0.1 ppm HC. Capacity: 100,160, 500 and 1000 Nml/min in in 19’’ rack casing. Pressure: 10 bar max (140 psi max). No maintenance. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: Purity:> 99.9999%,< 0.1 ppm HC. Capacity: 100,160, 250, 300, 500 and 600 Nml/min in bench casing, 1100, 2200 and 3300 Nml/min in floor casing. Pressure: 8 bar max (110 psi max). No maintenance. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

Characteristics: Purity: 99.9999%,< 0.5 ppm HC. Capacity: 3.3, 4.5, 6.6, 8.8, 11, 13 and 15.5 Nl/min. Pressure: 8 bar max. Option: on board water deionization unit. Communication: Full colour display with touchscreen; USB, RS485 and Ethernet.

LEMAN INSTRUMENTS study the development and production of instruments following the client’s specifications, based on standard physical modules and tested software.
