15 products found

LENSER Filtration GmbH products

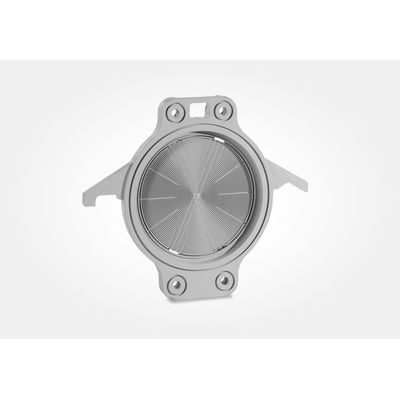

LENSER - LENSER i-Plate

The LENSER i-Plate offers you completely new perspectives on your filtration process. You will have new process data and be able to identify parameters to improve your processes. This will accelerate your cycles and power your business more efficiently. Direct suspension contact The LENSER moisture sensor is positioned directly at the filter cake. It‘s only covered by the filter cloth. Real time insights Precise measurement of the moisture in the filter cake for either online diagnostics or offline reviews. Customized service Process optimization through online monitoring of the filtration process can be customized easily.

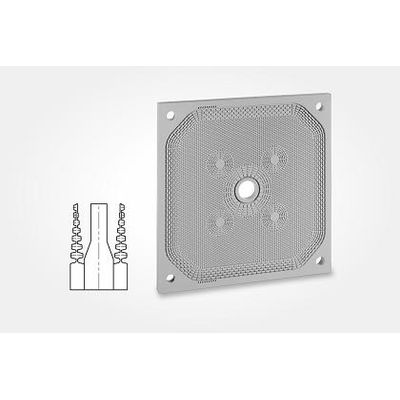

Membrane Filter Plate

LENSER membrane filter elements enable mechanical squeezing of the filter cake after the actual filtration process. This gives you clear advantages:
Higher throughput rate due to shorter cycle times
Higher dry solids content
Shorter filtration cycles
Reduced water consumption due to shorter wash times
Reduced air consumption during blow-drying
Sizes: 470 mm and from 800 mm to 2.440 mm
Cake thickness: From 15 mm to 50 mm
Filtration pressure: Up to 8 bar
Squeezing pressure: Up to 16 bar
Feed port position: centre, off-centre, corner, external

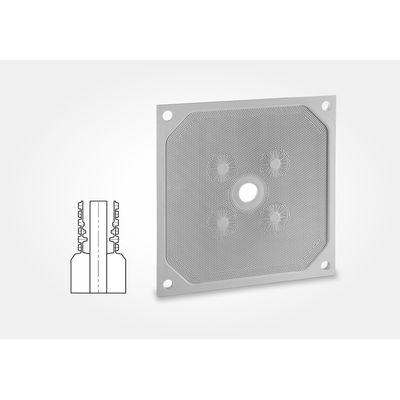

Recessed Filter Plate

General information and benefits:
Efficient standard equipment for filtration processes with low dry solids content requirements
Cake thicknesses are freely selectable according to the application and filtration conditions
Available in different sizes and materials for open and closed discharge and as gasketed design
Technical Details
Sizes: From 250 mm to 1.500 mm
Cake thickness: From 15 mm to 50 mm
Filtration pressure: Up to 16 bar
Feed port position: centre, off-centre, corner, external

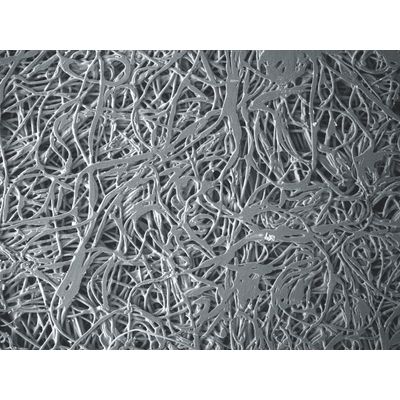

LENSER PRESS TEX - Liquid fabric filter - PRESS TEX Composite

LENSER PRESS TEX COMPOSITE This is a modern, specially built-up and finished short fiber construction. We differentiate between standard composite and pre-formed composite fabrics (LFC). The benefits are clear filtrate, high yield and easy mounting. Due to the high fabric density, cleaning cycles must also be considered here. LENSER 3-in-1 LENSER looks after all tasks related to your cloth assembly. With LENSER 3-IN-1 you get your filter elements and the associated filter cloths pre-assembled ready for installation.

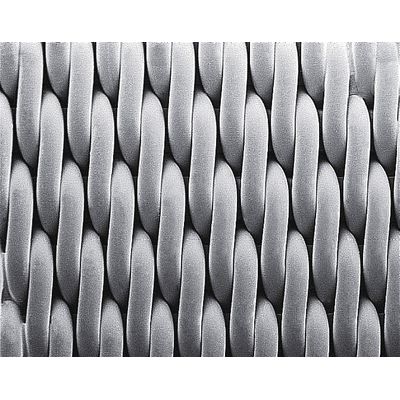

LENSER PRESS TEX - Liquid fabric filter - PRESS TEX Mono

LENSER PRESS TEX Mono The benefits of mono filament fabrics are minimum clogging, high throughput, excellent cake dryness and perfect cake release. However, It also has less tensile strength and less sealing properties at the frame area of the filter element. LENSER 3-in-1 LENSER looks after all tasks related to your cloth assembly. With LENSER 3-IN-1 you get your filter elements and the associated filter cloths pre-assembled ready for installation.

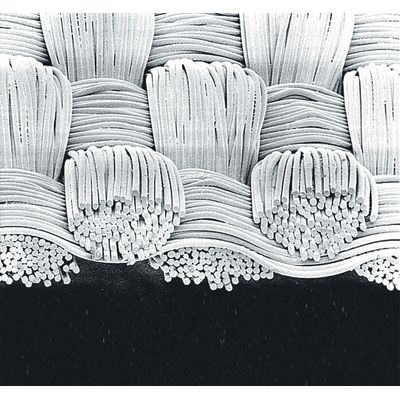

LENSER PRESS TEX - Liquid fabric filter - PRESS TEX Multi

LENSER PRESS TEX Multi The multi filament fabric are needed for robust solutions as well as good retention of fine particles. Due to the rough yarn structure, the cake sticks more strongly to the cloth. This means a greater risk of blinding and requires frequent cleaning cycles. LENSER looks after all tasks related to your cloth assembly. With LENSER 3-IN-1 you get your filter elements and the associated filter cloths pre-assembled ready for installation.

Polypropylene filter element - FILTROLIZER®

We manufacture custom-designed filter elements tailored to specific requirements.The advantages of LENSER custom-designed filter elements: low weight, high stability, chemical resistance and almost completely maintenance-free.
Features
Recessed chamber plate with heat exchanger functionality (for heating or cooling of the cake)
Optimum heat transfer to filter cake
High chemical resistance as standard thermoplastics are used
Both filtration and cake washing process feasable
Available as mixed pack (KX) combination plate or recessed chamber plate (KF/KA)
Available sizes 470 mm to 1,500 mm
Heating medium: Water, max. 95 °C (Steam and oils are not permissible)
Benefits
Temperature control on the filter cake
Drying of filter cakes within process
Prevention of crystallization in chemical production
Prevention of clogging filter cloths
Lower price compared to any metal versions

Membrane filter plate - KMZ 1000 UM bloc

The UM bloc design features ridge lines stepped to double pip height at the edges.
Advantages: High operating security, as the UM membrane also tolerates squeezing in a chamber that has been poorly filled or left empty by mistake

Membrane filter element - KMZ 1200 bloc

The recessed membrane facilitates even cake thickness and a good wash result.

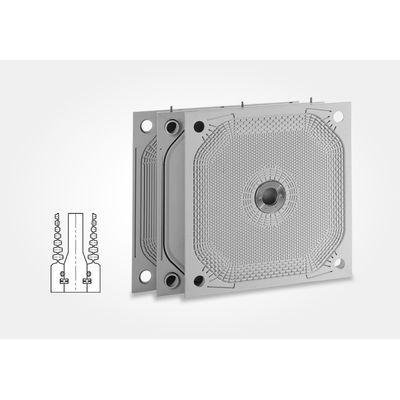

Membrane filter element - KMZ 1200 RUM

Exchangeable membrane filter elements enable simple membrane exchange.
You only have to replace the membrane rather than the complete filter element when the filter element is worn out. The body plate is retained.
The membrane halves on the KM RUM design are fixed to the carrier plate using clip strips.
