Löwener Vacuumservice AB products

UHV Systems

Löwener - UHV Systems

UHV system used for degassing of infra red camera CCD`s in their capsules. A series of smaller individual object chambers are attached to a larger main chamber. Each chamber has its own heating cover and regulator. All temperatures are monitored dual places for redundance and to minimize the risk of damaging the objects. The ultra high vacuum level needed for this application is obtained by an ion pump.

Process/Filling

Löwener - Combined System

Combined system for evacuation and leak testing of a heat exchanger. Combined system for evacuation and leak testing of a heat exchanger as well as filling it with coolant. Operator login is required and all production data are stored in the facility database. The system also incorporates regular tests using a known standard leak device, thus ensuring that the system meet the requirements.

Drying

Löwener - Versatile Drying System

Versatile system used for drying of nuclear reactor fuel containers. The system is also equipped with a Helium leak detector. All parts of the designed are carefully chosen for a long service life in restricted areas.

Helium Leak Testing Systems - Automatic Small Systems

Löwener - Model ASM 142 - Automatic Helium Leak Testing Equipment

Automatic helium leak testing equipment of fire extinguishers.

Löwener - Automatic Helium Leak Testing Small Systems for Fuel Pipes

With very small test chamber with pneumatically moved lid. Pipes are loaded with robot. Testing time, from shutting to opening chamber lid, ca 8 seconds. With ASM142 as leak detector. Rotary vane pump Alcatel 2021SD for fast pump down. PLC/PC Control system with HMI software.

Helium Leak Testing Systems - Automatic Big Systems

Löwener - Automatic Helium Leak Testing Big Systems

Automatic helium leak test system for aluminum casting for SF6-gas circuit breakers.

Löwener - Automatic Helium Leak Testing System with Two Chambers for LPG Tanks

With big roots and rotary vane pumps for fast pump down of chamber and test-object. With automatic helium leak testing.

Helium Leak Testing Systems - Other System

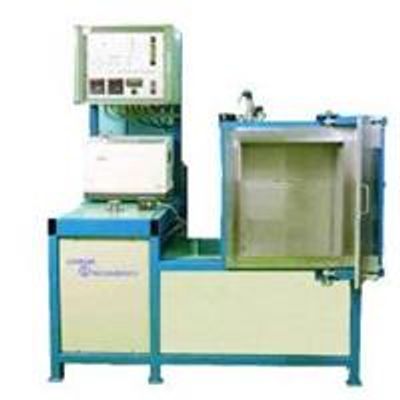

Löwener - Manual Helium Leak Detection Equipment

Helium leak detector Alcatel Adixen ASM 142. Vacuum pump Adixen 2033SD. Stainless steel vacuum chamber with inner diameter 400-900 and cylindrical length 500-1500 mm mounted on a painted stand. Stainless steel door which is very easy to move.

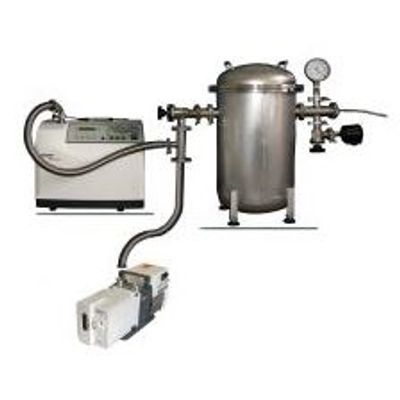

Löwener - Manual Helium Leak Test Equipment

Manual helium leak test equipment with helium leak detector, vacuum pump and vertical vacuum chamber.
