LOVATO S.p.A products

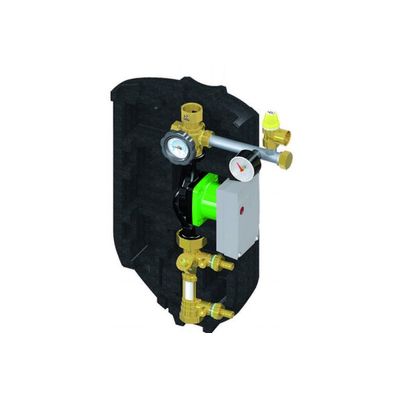

VERTIGO R-90 is a forced circulation return solar pump group with variable flow rate 2-12 l/min. The lateral position of the pump ensuring the full aeration of the hydraulic unit protecting it from high temperature.

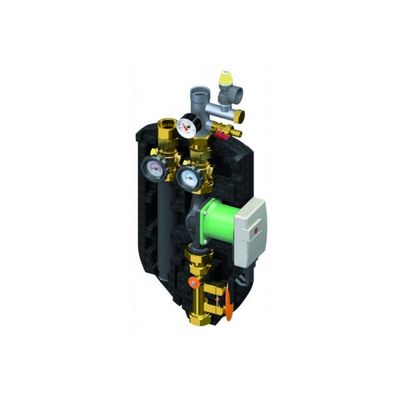

VERTIGO VRD-90 is a forced circulation return solar pump group with variable flow rate 2-12 l/min. To ensure maximum protection of the electronic control unit from heat, VERTIGO VRD-90 has a protective insulation that totally separates the hydraulic unit from the control unit. In addition, the front cover casing has air intakes that allow maximum ventilation of the electronic compartment. The lateral position of the pump ensuring the full aeration of the hydraulic unit protecting it from high temperature.

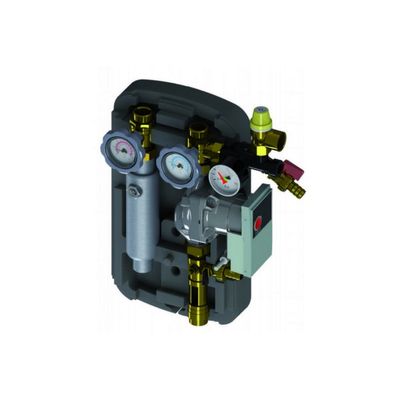

MAVERICK R-90 is a forced circulation solar pump group with 3 flow regulation ranges. Different electronic control and flow regulation models can be installed to meet different system requirements. The control unit can manage up to 15 different system configurations, preset and thanks to the pictogram display it can be used all over the world without language problems. MAVERICK R-90 can be installed directly on-wall or in a solar storage tank using the support brackets provided.

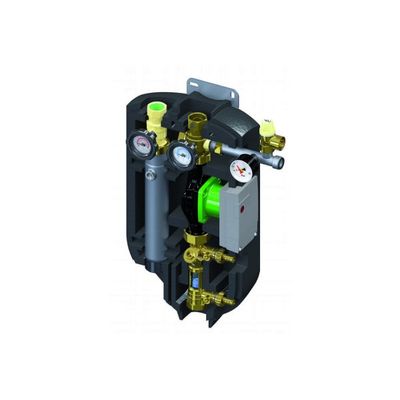

MAVERICK VRD-90 is a forced circulation solar pump group with 3 flow regulation ranges. Different electronic control and flow regulation models can be installed to meet different system requirements. The control unit can manage up to 15 different system configurations, preset and thanks to the pictogram display it can be used all over the world without language problems. MAVERICK VRD-90 can be installed directly on-wall or in a solar storage tank using the support brackets provided.

MAVERICK VRD-90 is a forced circulation solar pump group with 3 flow regulation ranges. Different electronic control and flow regulation models can be installed to meet different system requirements. The control unit can manage up to 15 different system configurations, preset and thanks to the pictogram display it can be used all over the world without language problems. MAVERICK VRD-90 can be installed directly on-wall or in a solar storage tank using the support brackets provided.

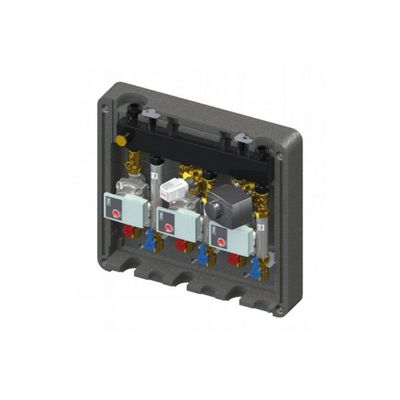

T-BOX is a compact distribution module for zone heating systems. It can manage two, three or four zones in wall-hung version. The zones can be controlled by 3 types of pump units: Direct unit (high temperature). Fixed point unit (constant temperature). Modulating temperature mixing unit (designed for the temperature control system).

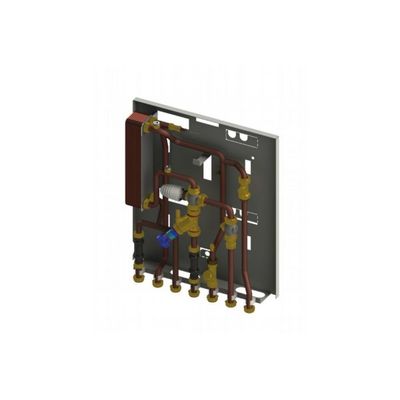

MACUK RSD PRO is a recessed and wall-hung heat interface unit for ON/OFF heating and for the instantaneous production of domestic hot water via a stainless steel plate heat exchanger. The module is suitable for installation in apartments and single houses managed by centralized systems.

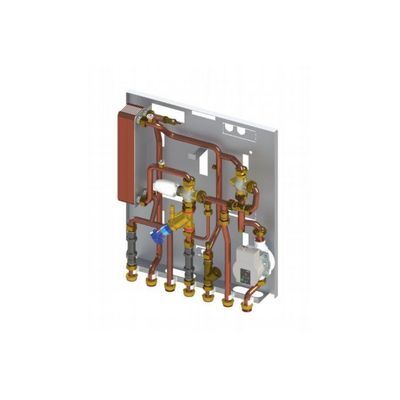

MACUK RSM PRO is a recessed and wall-hung heat interface unit for heating (high and low temperature) and for the instantaneous production of domestic hot water via a stainless steel plate heat exchanger. The module is suitable for installation in apartments and single houses managed by centralized systems. The installation is quick and simple: MACUK RSM PRO only needs the hydraulic connections on site.

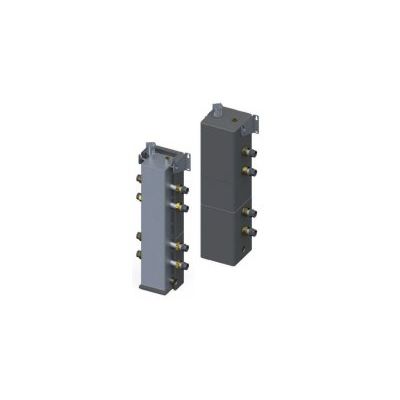

BOMBER is a inertial micro storage tank with zone distribution: its function is to work with heat pump and further support heat source. Its purpose is facilitates the functioning of the heat pump for covering the heat demand granting an optimized modulation and covers the peak loasds with the support of the ancillary heat source.

The management of the thermal solar system by controller LovaSOL MTDC is made through the analysis of the temperature difference measured by the sensors. The pump is switched on in funtion of the difference of the at measured and Δt set. The controller allows to manage 15 different basic systems.
