LU-VE Group products

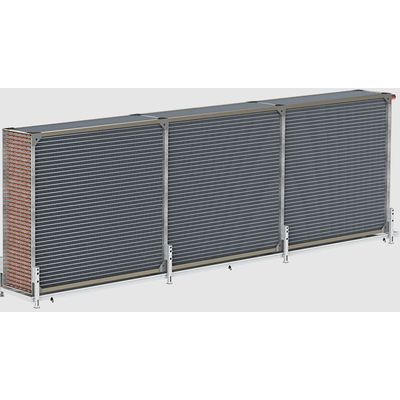

Alfa LU-VE Arctigo IC is a wide and flexible range of industrial air cooler coils for applications in medium to large cooling and freezing tunnels. The Alfa LU-VE Arctigo IC range offers a wide variety of coil configurations and a long list of options, always allowing to select the best model to suit applications in cooling and freezing tunnel installations such as slaughter houses, frozen seafood production plants, industrial bakeries, etc.

Applications: Process cooling, air-conditioning and commercial cooling. Cooling capacity: 35-1044 kW. Fans: Maintenance free EC-fans. Coil: Turbofin 5 aluminium fins 0, 15 mm, copper tubes diameter 12 or 16 mm, fin spacing 2,1 mm. Casing: Powder painted galvanized steel, corrosion class C4. Cooling media: Water/glycol mixes and others. Air direction: Vertical or horisontal. Accessories: Control systems, epoxy-coated fins, extended legs, Whisperer, water spray systems etc.
