Luxor Tech products

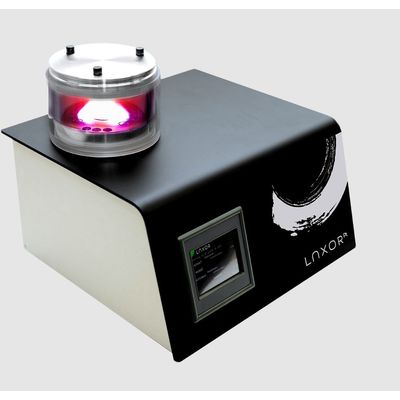

Model LUXORAu - Advanced, Fully Automated Sputtering Device

The LUXORAu is an advanced, fully automated sputtering device that applies a fine grain gold coating from 1 to 100 nm thickness. This allows you to get the very best SEM imaging quality from your samples. LUXOR’s unique A² technology creates a controlled plasma in the process gas. In the plasma, ions are accelerated by means of high voltage and directed onto the gold target. Finest gold atom clusters are thereby released from the target and coat your samples in a precise manner, resulting in an extremely uniform, thin and homogeneous gold layer. The LUXORAu is also renowned for its ease of use and quick, hassle-free operation.

Model LUXORPt - Highly Innovative, Fully Automated Sputtering Device

The LUXOR^Pt is a highly innovative, fully automated sputtering device which applies a fine grain platinum or gold coating from 1 to 100 nm thickness. LUXOR’s unique A² technology assures that the gold or platinum is sprayed in a highly controlled and precise manner, resulting in an extremely uniform, thin and homogeneous coating. This allows your scanning electron microscope to show the best possible image quality.

Accessories

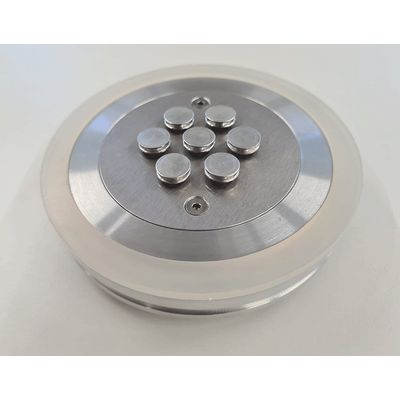

Standard Sample Holder

The stable LUXOR standard sample holder in heavy-duty design is delivered as a standard accessory with every LUXOR^Au or LUXOR^Pt metal coater. It can simultaneously hold up to 7 x Ø 12.5 mm or 3 x Ø 25 mm stubs or up to 1 x Ø 100 mm large stubs for metal coating. With its three elastomer feet, it is designed as a sample preparation table and ensures good stability. There is no need to reposition the prepared specimens. It is therefore ideally suited for flawless sample preparation.

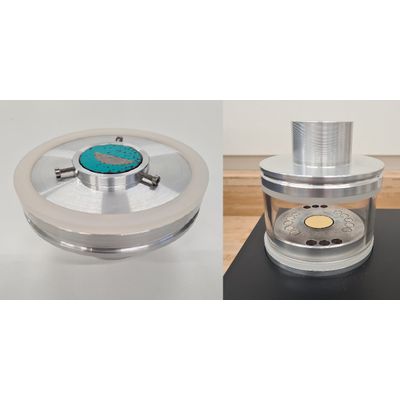

Sample Holder for Mounted/Embedded Samples

The LUXOR sample holder for mounted/embedded samples can hold all types of samples that are mounted or embedded into resins with diameter ranging from 25 mm to 40 mm and height from 10 mm to 50 mm.

Sample Holder for Cylindrical Samples

The LUXOR sample holder for cylindrical sample stubs is designed to hold cylindrical stubs of diameters 9, 12 and 25 mm. These stubs are often used in HITACHI and JEOL electron microscopes. This holder has 3 positions in which different combinations of 9, 12 and 25 mm diameter cylindrical stubs can be coated.
