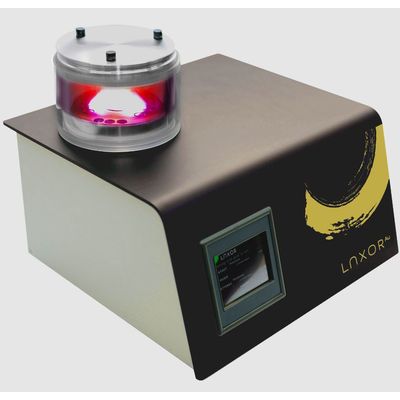

Model LUXORAu -Advanced, Fully Automated Sputtering Device

SHARE

The LUXORAu is an advanced, fully automated sputtering device that applies a fine grain gold coating from 1 to 100 nm thickness. This allows you to get the very best SEM imaging quality from your samples. LUXOR’s unique A² technology creates a controlled plasma in the process gas. In the plasma, ions are accelerated by means of high voltage and directed onto the gold target. Finest gold atom clusters are thereby released from the target and coat your samples in a precise manner, resulting in an extremely uniform, thin and homogeneous gold layer. The LUXORAu is also renowned for its ease of use and quick, hassle-free operation.

Most popular related searches

oil mist filter

borosilicate glass

scanning electron microscope

laboratory homogenizer

The LUXOR^Au is typically used for SEM imaging applications up to 100000x magnification where sample charging might be an issue, as the coating strongly reduces sample charging by increasing conduction.

The coater is designed to improve secondary electron emission. As a result, the microscope’s detectors will pick up more hi-res imaging details.

Another advantage is the reduced beam penetration, which significantly improves edge resolution. Furthermore, this prevents sensitive samples from being damaged.

OPTIMISED USER INTERFACE
First of all, the LUXORAu is remarkably easy to use. Using the built-in touchscreen, the coating process can be initiated with just a few clicks.

SUPERIOR GOLD COATING RESOLUTION
Field tests clearly show that the LUXORAu generates more homogeneous and smaller gold grains, compared to other coating instruments in the market. Furthermore, the A² technology ensures identical, reproducible coating results, day after day and year after year.

INCREASED SPEED & EFFICIENCY
The LUXORAu is able to process up to six samples in one go. And while the gold coating procedure is very precise, it is also remarkably fast.

ADVANCED SEM PROTECTION
The unique ‘upside down’ design of the LUXORAu makes sure that loose particles will be removed during the coating process. This way, your SEM is optimally protected.

ROBUST DESIGN, MADE IN GERMANY
Despite its modest footprint and elegant appearance, the LUXORAu is a robust, sturdy device. It is designed to be used intensively and run hassle-free for many years.

Au coating with air or argon
Maximum capacity: 7 x Ø 12.5 mm or 3 x Ø 25 mm stubs
Average coating time: 5 minutes (based on a 10 nm gold coating)
Additional vacuum & drying modes
Low energy dual stage pump

Vacuum & drying modes: 7 Pa to 150 Pa (continuously selectable)
Process time: 1 to 600 minutes (continuously selectable)
Gold layer thickness: 1 to 100 nm (continuously selectable)
Process chamber: Borosilicate glass Ø 100 mm x 150 mm height
Implosion shield: PET Ø 120 mm x 150 mm height
Vacuum connector: DN 16 KF
Gas supply: Air or argon (0,6 bar)
Dimensions: 340 x 340 x 290 (mm, W x D x H)
Weight: 11 kg

VACUUM PUMP

Can be ordered separately as “pump kit” including
Two-stage roughing-pump with a pump capacity of 4.8 m³/h
Metal vacuum hose, DN 16 KF, length 1 m
2 x fittings and 2 x seals DN 16 KF
1 x oil mist filter
