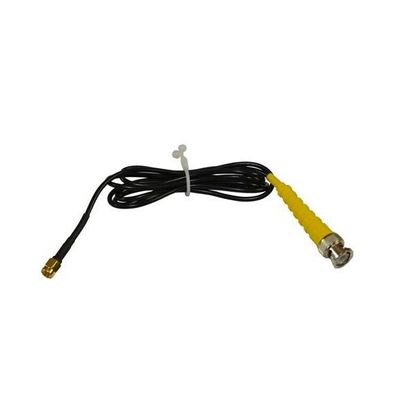

Connecting cable for accelerometer and C311R instrument for resonance frequency meter. SMA connector sensor side, 4 poles ODU connector instrument side, 1 mt length, interlaced conductors with TPE insulator, polivynil chloride PVC black sheath, highly resistant against usury in general.

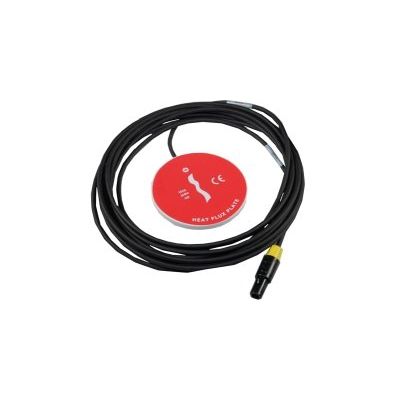

HFP01 serves to measure the heat that flows through the object in which it is incorporated or on which it is mounted. The actual sensor in HFP01 is a thermopile. This thermopile measures the differential temperature across the ceramicsplastic composite body of HFP01. Working completely passive, HFP01 generates a smalloutput voltage proportional to the local heat flux. Using HFP01 is easy. For readout one only needsan accurate voltmeter that works in the millivolt range. To calculate the heat flux, the voltage must be divided by the sensitivity; a constant that is supplied with each individual instrument. HFP01 can be used for in-situ measurement of building envelope thermal resistance (R-value) and thermal transmittance (H-value) according to ISO 9869, ASTM C1046 and ASTM 1155 standards. Traceability of calibration is to the “guarded hot plate” of National Physical Laboratory (NPL) of the UK, according to ISO 8302 and ASTM C177.

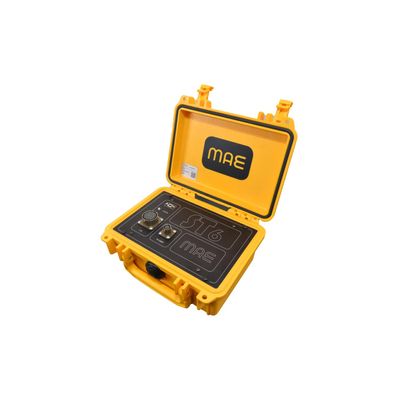

Seismograph for active and passive seismic, equipped with 6 channels, 24 bit resolution, extremely compact and easy to use. Instrument is managed through an intuitive application which must be installed on a PC or tablet with Windows operative system connected to the instrument through USB interface.

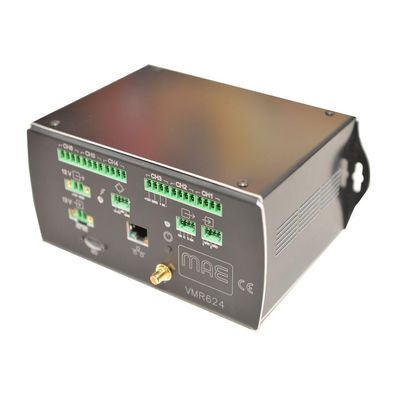

Stand-alone seismic digitizer specific for seismological studies and monitoring of seismic events. Instrument is designed for the automatic recording and saving of each seismic event on internal memory or sending to data collection center according to chosen mode.

Top-range seismograph equipped with 24-48-72-96 embedded channels for active and passive seismic surveys. X824S basic configuration integrates 24 channels and can be expanded with 24 channels modules, without external boxes, up to maximum 96 integrated channels.

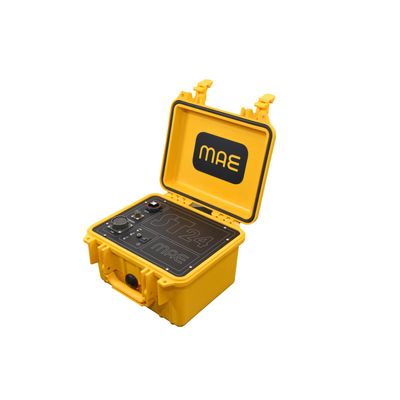

24 bit seismograph for seismic prospecting with refraction, reflection, active and passive MASW (Re.Mi.), SASW, Down-hole, Cross-hole, seismic tomography, HVSR investigation methodology. The unit is equipped with a capture card with 24 bit resolution. It is possible to serialize two units to reach 48 channels. Through the management software, to be installed on any PC or notebook connected to the acquisition unit, it is possible to set all the parameters relating to the type of seismic survey that you intend to carry out with maximum simplicity and speed.

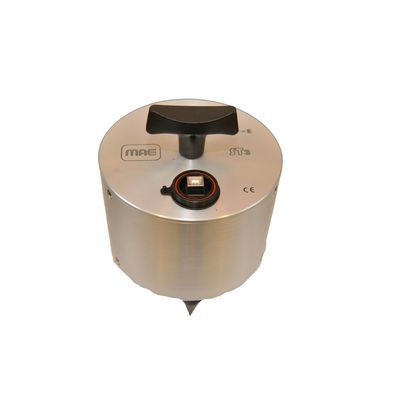

The ST3 instrument integrates within an acquisition board equipped with 3 channels with 24 bit resolution for each channel and a 3D sensor with geophones with a natural frequency of 2 Hz. The instrumentation is managed via a laptop or tablet PC connected to the instrumentation via USB connection.

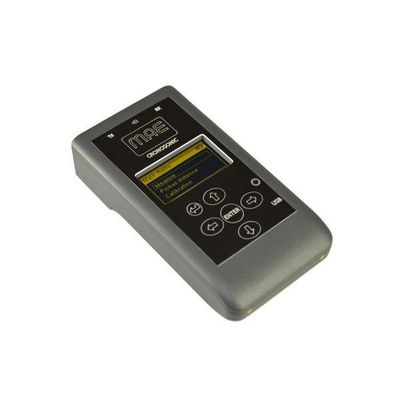

Cronosonic is an instrument for ultrasonic pulse velocity through transparency which can be used to investigate poles, truss, diaphrams, laboratory samples and many other structures made of concrete or stone. It performs measurements with direct, indirect and semi direct method. Very compact instrument is provided with display for realtime visualization of the time of fly (T.O.F.) and velocity of investigated material. Measurements can be transferred to a PC through USB connection.

WCH4 is an innovative modular wireless instrument for cross-hole tests on foundation poles. System core are motorized reels electronically controlled on which are mounted hig-power borehole probes for cross-hole investigations on foundation poles, diaphrams, and all those infrastructural cement or concrete works that could be verified by cross-hole tests, that is through discent in tubes prepared at casting and subsequently filled by water.

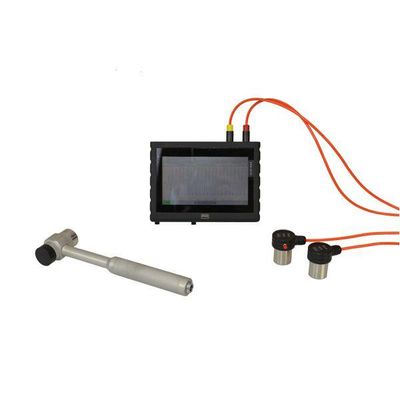

SONIC15 is a device for non Destructive Tests with ultrasonic pulse velocity and sonic tests on masonry through instrumented hammer. In spite of compact dimension of the unit, there is a wide monitor of 7’’ with integrated touch screen which allows to use it on site in immediate and effective way.
