Magnaflux products

Liquid Penetrant Testing - Accessories

Magnaflux - Multi-Station Process Control Digital Timer

Battery-operated, multi-station digital timer shows MS/HM and station number with audible and visual alarms for up to four (4) separate dwell times (penetrant, rinse, emulsification and developer) running at once. Simultaneous programming of up to four activities during liquid penetrant inspection, Large easy-to-read LCD screen, Count-up and count-down functions, Wall mountable.

Magnaflux - Refractometer

An easy-to-use, hand-held optical instrument for measuring the concentration of hydrophilic remover in water. Apply a small sample of solution to the prism face and take the reading by looking into the device at the built-in scale. Meets Pratt and Whitney and GE concentration specifications for hydrophilic removers.

Magnaflux - Dry Developer Spray Gun

Manual spray gun that delivers a light, even dry developer coating. Uses shop compressed air (dry). Features mix, jet and spread controls. 1.1 litre capacity.

Magnaflux - Hydro Wash Spray Gun

For pre and post rinsing of parts inspected with water-washable or post-emulsifiable penetrant. Air injection provides faster rinsing of hollow or rough surfaces. Perfect for areas with low or fluctuating water pressure.

Liquid Penetrant Testing - Consumables

Magnaflux - Water Washable Fluorescent Penetrant

A water-removable Level 1 penetrant, ZL-19 WW is designed for use on rough or unmachined surfaces such as castings and forgings to find larger discontinuities in non-safety critical components. It is ideal for inspecting automotive and general industrial components such as engine cylinder blocks, power train components, rocker arms, pistons, steering knuckles, etc. ZL-19 WW washes off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process, and the rinse water is easily treatable for simpler disposal. This economical fluorescent penetrant helps users reduce their over-all cost per part by reducing penetrant loss through drag-out, speeding up the washing and inspection process, and cutting rinse water costs.

Magnaflux - Water Washable Fluorescent Penetrant

Developed for testing rough machined surfaces, ZL-60D WW fluorescent water-removeable penetrant is ideal for finding indications in castings, forgings, extrusions and rough surfaces. This medium-sensitivity penetrant washes off parts quickly and easily, leaving less fluorescent background – even on rough surface – for clearer indications and better inspection reliability. ZL-60D is one of the most versatile “work-horse” penetrants, customers can use this one penetrant for a wiWW de range of applications on a range of parts to find many different types of defects, including cracks, seams, laps, cold shuts, laminations and porosity. Broad specification compliance further increase this penetrants flexibility. ZL-60D WW has excellent alloy compatibility and is safe to use on most engineering and aerospace materials, including aluminum, steel, nickel and titanium.

Magnaflux - Wet Method Fluorescent Magnetic Particles

A highly sensitive magnetic particle powder, 14A fluorescent mag particles are engineered to locate very fine discontinuities in critical parts and applications. Designed with strong fluorescent properties, 14A magnetic powder is made with a carefully optimised range of particle sises and shapes to ensure particles move quickly and easily to indications, while minimising background and particle clumping. The result is faster inspections with better reliability and greater confidence. A great choice for inspecting machined parts, welded parts, after secondary processing, critical in-service inspections and testing smooth surface finishes to find inclusions, seams, shrink cracks, tears, laps, flakes and cracks. Features Can be suspended in water or petroleum distillate (oil) vehicle High sensitivity Excellent fluorescent contrast Excellent particle mobility Optimised particle sise and shape distribution Durable particles Easily dispersed

Magnaflux - Water-Based Fluorescent Magnetic Particle Concentrate

14A Redi-Bath is a highly sensitive water-based magnetic particle liquid with for locating very fine discontinuities in critical parts during fluorescent mag particle inspection. A concentrated liquid with Magnaflux’s best-in-industry 14A magnetic particles with water conditioners and corrosion inhibitors, 14A Redi-Bath is designed to be diluted with water to make magnetic particle water bath. The ultra-sensitive 14A particles provide clear, bright, fluorescent green indications under ultra-violet black light for unbeatable inspection quality and accuracy, with superior corrosion protection. 14A Redi-Bath is an ideal choice for high-volume testing of machined parts, forgings and castings where the mag particle bath needs to be changed out frequently due to drag-in or heavy-use.

Magnetic Particle Inspection - Accessories

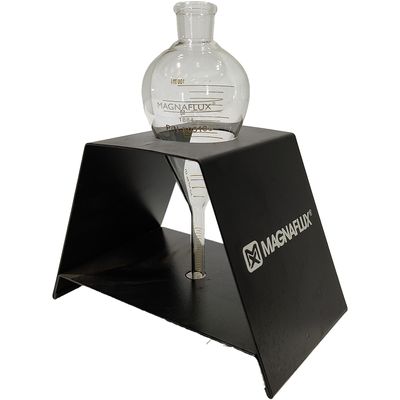

Magnaflux - Centrifuge Tubes

Our centrifuge tubes are individually calibrated to monitor the precise concentration and contamination levels of magnetic particles in MAGNAGLO® and MAGNAVIS® baths. Each tube comes with an aluminium stand.
