Mankenberg GmbH products

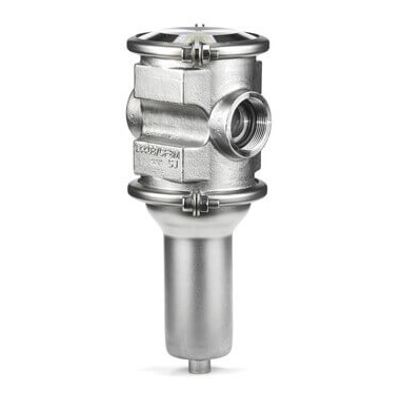

The pressure reducer DM 555 is a spring-loaded proportional control valve for universal application at small and medium flow rates. The valve body and medium-wetted internal parts are made of stainless steel (1.4404 / 316L) featuring excellent corrosion resistance. The valve cone is fitted either with a metallic or a soft seal.

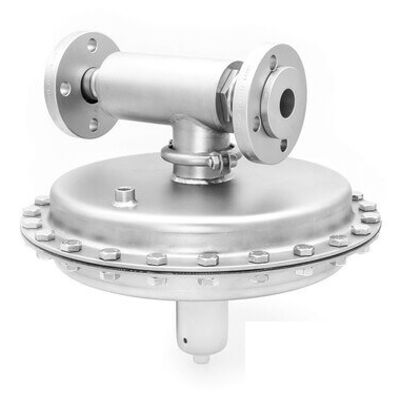

The pressure reducer DM 755 is a diaphragm-controlled spring-loaded proportional control valve for very small outlet pressures and medium volumes. The valve body and medium-wetted internal parts are made of stainless steel 316Ti and 316L featuring excellent corrosion resistance. The valve cone is soft-seated. Millibar control valve for small to medium flow rates.

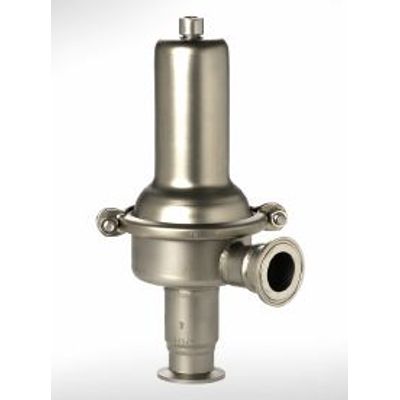

Single-seat, angled design suitable for small and medium flow rates | usable for liquids, gases and steam | completely made of deep-drawn CrNiMo-steel (316L) – surface finish possible up to Ra ≤ 0.25 μm | virtually pocket-free, is corrosion-resistant, lightweight and compact | elastomers as per FDA and USP Class VI, hygienic class HE5 | reduced preheating time for CIP/SIP procedures, less energy needed | adjusting screw as a function of display, easy-to-maintain owing to the clamp system | TRI-CLAMP connections or DIN/ISO clamp connections | can be actuated pneumatically, spring cap available with leakage line connection and adjusting screw seal

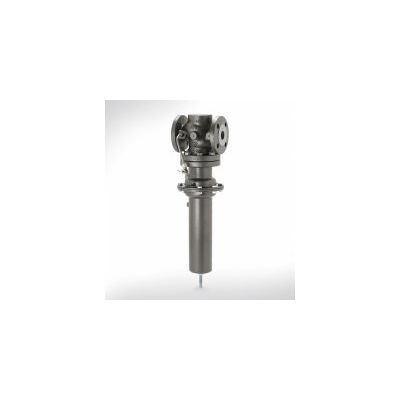

Balanced straight-way valve for medium and very high flow rates | useable for liquids, gases and steam | body made of GGG-40 or GS-C 25 | high precision thanks to integral control behaviour | response time can be adjusted by damping

Double-seat straight-way valve for high pressure and high temperature, high flow rates | usable for steam | body made of GS-C 25, GS 17 CrMo 55 | usable as soot blower with damping | especially sturdy, offers long maintenance intervals, a long operational lifespan

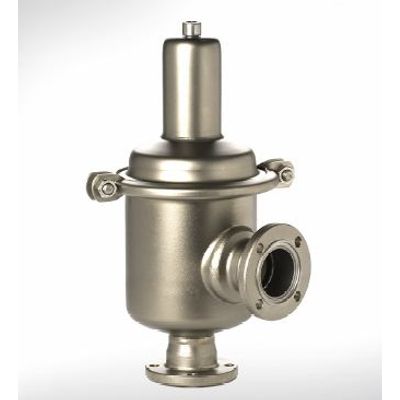

Double-seat angled valve for large flow rate | usable for liquids, gases, steam | completely made of deep-drawn CrNiMo steel (316L), surface finish possible up to Ra ≤ 0.25 μm | virtually pocket-free, corrosion- resistant, lightweight and compact | elastomers as per FDA and USP Class VI, hygienic class HE4 | reduced preheating time for CIP/SIP procedures, less energy needed | adjusting screw as a function of display, easy-to-maintain owing to the clamp system | TRI-CLAMP connections or DIN/ ISO clamp connections, any other available on request | spring cap available with leakage line connection and adjusting screw seal

Double-seat straight-way or angled valve for medium flow rate | usable for liquids, gases and steam | completely made of deep-drawn CrNiMo-steel (316L), surface finish possible up to Ra ≤ 0.25 μm | virtually pocket-free, corrosionresistant, lightweight and compact | elastomers as per FDA and USP Class VI, hygienic class HE5 | reduced preheating time for CIP / SIP procedures, less energy needed | adjusting screw as a function of display, easy-to-maintain owing to the clamp system | TRI-CLAMP connections or DIN/ ISO clamp connections, PTFE protective foil for diaphragms | can be actuated pneumatically | spring cap available with leakage line connection and adjusting screw seal.

The back pressure regulator UV 5.5 is a spring-loaded proportional control valve for universal application at small and medium flow rates. The valve body and medium-wetted internal parts are made of stainless steel 316L featuring excellent corrosion resistance. The valve cone is fitted either with a metallic or a soft seal.

Single-seat straight-way valve with balanced cone for temperatures up to 300 °C | usable for liquids and gases | body made of GS-C 25 or CrNiMo-steel | diaphragm-, piston- or bellowscontrolled | suitable for higher pressures

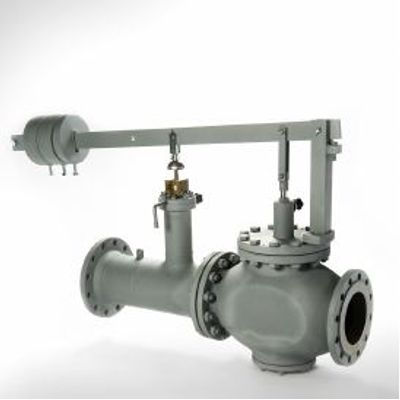

Cast Steel Sturdy Valves For larger air volumes, e.g. on sand filters, stainless steel float and lever control the valve shut-off, EB 1.11 with external float, EB 1.20 for maximum air volumes | valve cone with soft or metallic seal | body made of GGG-40, GS-C25 | for contaminated and foaming media, available with various coating types
