MAPIR CAMERA products

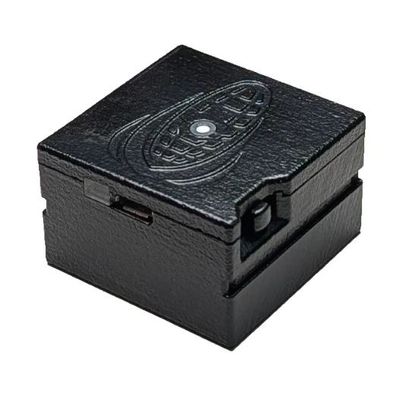

The DAQ-M is a versatile modular spectroradiometer equipped for field and laboratory applications, providing precise spectral measurements of ambient light from 340 to 1010 nm. It features a built-in rechargeable Li-ion battery, internal memory for up to 8,192 measurements, and Bluetooth Low Energy (BLE) for efficient power usage and convenient wireless data transfer. This device supports two primary measurement modes: irradiance and reflectance, enhancing its functionality for multispectral imaging and reflectance analysis. The DAQ-M's integration with the MAPIR SCANNER mobile application enables users to control sensor settings, assign unique identifiers, and perform real-time data visualization and storage. Its robust design ensures device-to-device repeatability and durability, with no moving parts and no calibration necessity, increasing its operational lifespan. The spectroradiometer's compact form factor and extended operating temperature range make it ideal for diverse environmental conditions and various mounting configurations.

The DAQ-M is a versatile spectroradiometer designed for a range of applications requiring precision light measurement. Equipped with a durable battery and built-in memory storage, it allows for extended usage without frequent power interruptions. Its Bluetooth Low Energy (BLE) radio facilitates seamless communication, making it ideal for fieldwork and reducing cable dependency. The device accurately measures ambient light spectra, providing essential data for correcting multispectral camera images. Additionally, as a field spectrometer, it helps in creating detailed spectral signature libraries. Its capability extends to functioning as a colorimeter and a PAR/lux meter, serving varied scientific and industrial light measurement needs.

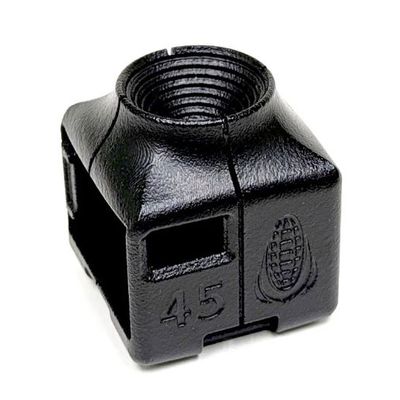

This 45 degree frame holder narrows the capture angle for the DAQ-M to 45 degrees. Simply pull the tab out and slide the DAQ-M fully in. A standard 1/4-20 tripod thread is included on the bottom for easy mounting. This is the perfect accessory to use the DAQ-M as a field spectroradiometer, allowing you to easily scan objects to document their reflectance signature. Use as a reflectance measurement tool requires scanning the white reflectance calibration target from any of our T3 or T4 target packages. Once the reference target and object(s) are scanned the data can be processed in our MCC software.

The Survey3W PRO Camera is designed for detailed multispectral imaging applications, housed within an industrial-grade IP67 waterproof casing that ensures durability even in harsh environments. It features the incorporation of an Advanced V2 GNSS GPS receiver, specifically the uBlox MAX-M10S, which provides enhanced geolocation data accuracy. The camera supports a variety of lens filter options, including RGB, OCN, RGN, NGB, RE, and NIR, catering to diverse imaging requirements. The adjustable manual focus wheel offers flexibility for precise image capture, complemented by an industrial m12 cable connection for reliable power and data signals. The device includes an external micro SD card port supporting up to 512GB, enabling substantial data storage without accessing the internal components. Its user-friendly design allows connectivity via a free Android application for remote control and image extraction, although it does not support USB data connections. The camera’s flexible installation options, including removable lens and rear door for easy access, make it a robust solution for both existing Survey3 users and new installations.
