Anodized ALU profile structure (thickness 15 Microns) Alloy 6060. The std conveyor configuration features h 80 mm side panels and switch/motor protector + cable and plug. Standard cut-proof, oil-proof belt with smooth green Polyurethane covering (ref. Pantone 320); vulcanized belt joint. Belt details: Hardness of PU cover: 92 Shore. Contact temperature: -10 +110 °C. Operating temperature: -10 +90°C.

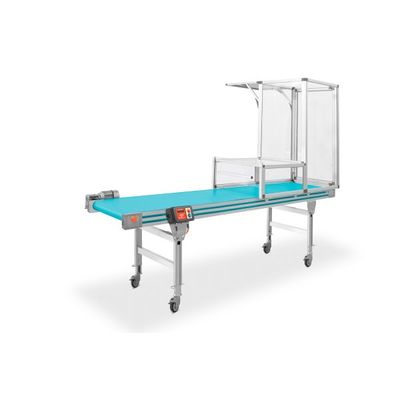

Standard Robot Guard; Made of structural aluminium profiles, section 45×25 mm, anodized. Panels in 5-mm thick transparent Polycarbonate

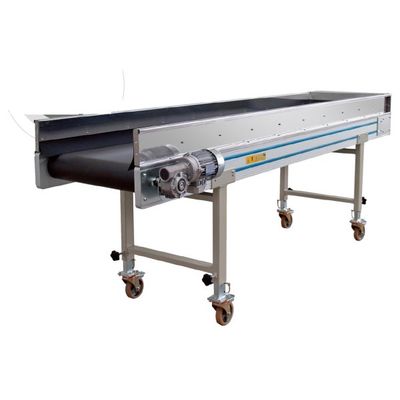

Anodized ALU profile structure (thickness 15 Microns) Alloy 6060. The standard conveyor configuration features h 80 mm side panels and switch/motor protector + cable and plug. Sturdy cut-proof, oil-proof belt in black Polyurethane; vulcanized belt joint. Minimum and maximum temperature resistance of belt: from -30 to 90°C.

Anodized ALU profile structure (thickness 15 Microns) Alloy 6060. Standard configuration with h 40 or 80 mm side panels. 20 / 30 / 50 / 76 / 100 / 113 mm diameter galvanized steel rollers, mounted at variable pitch depending in the required use. Mechanical stop at end of travel to stop the boxes.

Paddle separator installation on a mod. N-CPTR conveyor is the most frequent application. This configuration is identical to model N-CPST. Standard configuration with unloading chute, separator on the left and double Start and Stop switch/motor protector (one for the conveyor and one for the separator)

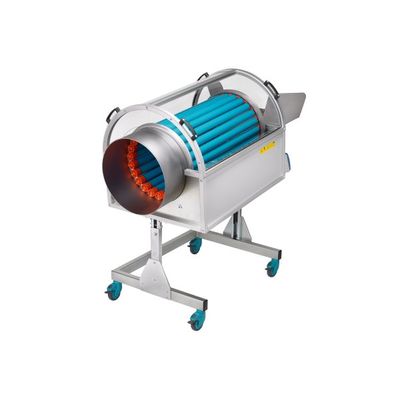

Standard: 24 rollers in PVC ø 50 mm length 800 mm. Standard equipment: MB Speed Control panel to regulate the rotation speed. safety protection for rotary drum rotation.

This model is tailored to suit the customer’s requirements and is designed for a specific product/sprue. Rotating drum in AISI 304 stainless steel sheet. MB Speed Control panel for controlling the rotation speed. Safety guard for the rotating drum. The diameter, positions of the holes and the optional equipment required are specially designed to suit the characteristics of the product to be separated.

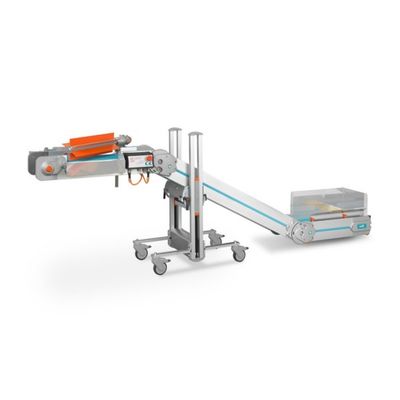

Anodized ALU profile structure (thickness 15 Microns) Alloy 6060. Standard configuration complete with: Polycarbonate tunnel to protect the elevator lane. Elevator hopper in 2 mm thick AISI 304 stainless steel sheet. Elevator unloading chute in aluminium complete with internal lining applied to the surface in contact with the product. Padlockable switch/motor protector + cable and plug. Standard cut-proof, oil-proof belt with smooth green Polyurethane covering (ref. Pantone 320) and h 30 mm heat-welded slats at 150 mm pitch; vulcanized belt joint. Temperature resistance: from -10 to +90°C

Anodized ALU profile structure (thickness 15 Microns) Alloy 6060. Standard configuration complete with: Polycarbonate tunnel to protect the elevator lane. Elevator hopper with external structure in aluminium profiles, painted sheet metal sides and internal panels in AISI 304 2 mm thick stainless steel sheet. Elevator unloading chute in aluminium complete with internal lining applied to the surface in contact with the product. Padlockable switch/motor protector + cable and plug. Standard cut-proof, oil-proof belt with smooth green Polyurethane covering (ref. Pantone 320) and h 30 mm heat-welded slats at 150 mm pitch; vulcanized belt joint. Temperature resistance: from -10 to +90°C.
