Metal Technik s.c. products

Power CNC machines (laser, plasma) in the gases is carried out underground gas bus in an industrial way station expansion of liquid oxygen and nitrogen from the high-pressure vessels with parownicami Messer. This enables us to produce without interruption technology in two shifts, large batches of parts in any configuration (no cylinders and beams). For this system, we have the telemetry system: remote monitoring, control and monitoring of the gas.

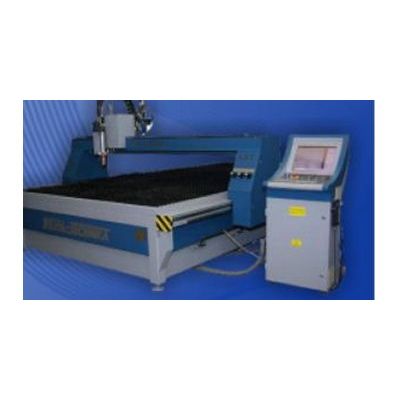

The machine is designed for cutting sheets of carbon steel by means of a plasma torch and a gas. The metal sheet (eg. Size 1500x3000 standard) placed on a CNC table, then draw detail, or to load or ready to the control program, speed setting database and start cutting. When you start automatically cutting pieces of sheet metal, according to the previously prepared program cuts. The height of the burner is automatically adjusted during cutting, to provide a uniform distance of the nozzle burner from the material being cut. Machine control is made on the basis of a program running under the Windows operating system and microprocessor controller ENB BALDOR, control work servosilników driving X and Y axes and the module holding the same height above the burner material.

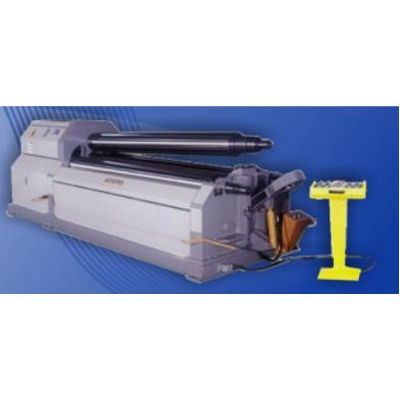

Wrapping sheet of 0.8 to 8 mm over a length of 3100 mm. The maximum sheet thickness 10 mm R = 400 N / mm2. 0- speed of 3.5 meters per minute. The rigid welded steel St-52. Digital display position of the side rollers.

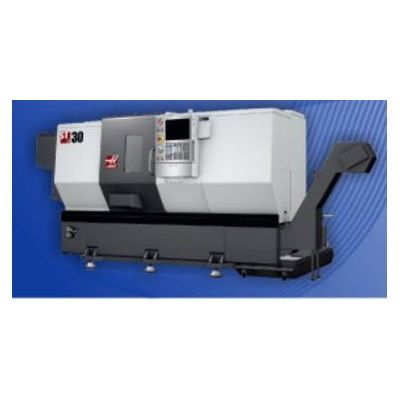

Haas CNC control system, microprocessor triple 32-bit I / O RS-232, USB, 100BaseT, memory capacity up to 750MB. The number of programs 500. Program execution speed 1000bloków / s, axis control two linear axes, optionally C and Y, interpolation G01, G02, G03, Min. 0.001mm resolution of input signal, output resolution 0,00018mm; max. cutting area 21 "x 26" (533 x 660 mm) rod of 3.0 "(76 mm) roll-31.75" (806 mm), the drive vector 30 hp (22.4 kW), 3400 rpm, spindle A2-6, the handle 10 "(254 mm), 12-position turret screw-type color LCD monitor screen 15", the memory lock switch, USB and rigid tapping. A standard set of tool holders with screw-type turret head or hybrid.

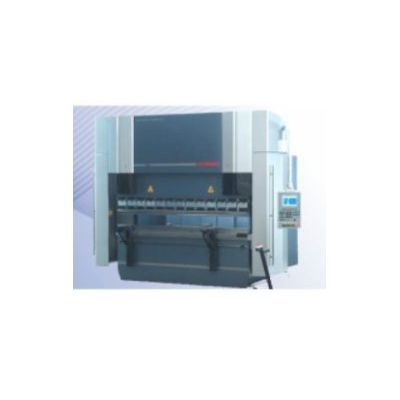

The basic parameters of the machine is 320 tons of pressure and maximum bending length 3050 mm. The specification of the particular machine allows different types of sheet metal bending at any angle and eight axes.

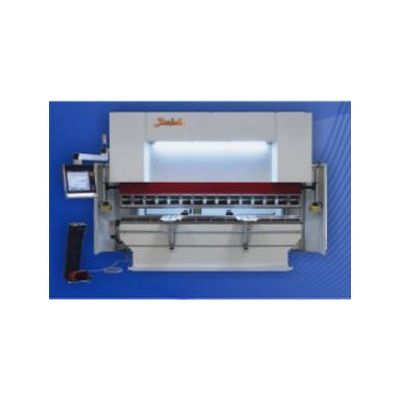

Press brake APHS model is very modern machine adapted to work with advanced controls CYBELEC company, which allows you to work with high accuracy in the 3 to 9 axes. The control is fully automatic CNC with linear encoders on each side of the machine. The machine can be equipped with automatic deflection compensation, which allows for precise bending the entire length of the working and adjustments in case of change parameters bent materials. The control allows you to program bending angles with an accuracy of 0.1 degree! The machine frame is made of high quality steel and is performed prior to installation test its strength. Electrical cabinet and all the circuits installed in the machine are the best brands in the industry. The machine offers great opportunities for the use of tools in the European system, and the system WILA and is prepared to work three shifts.

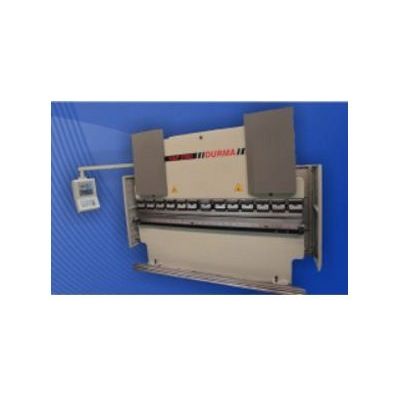

Press brake Durma HAP 2560 is provided with NC control, the upper punch and die universal 4 sided. The machine can work in automatic mode and perform the following steps programmed bending
