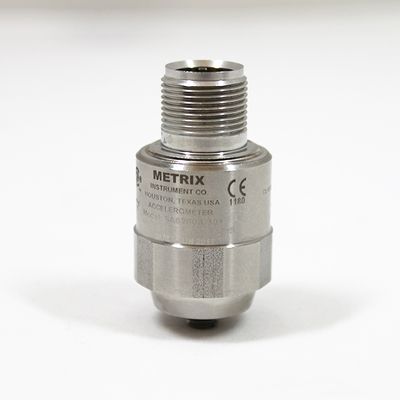

Metrix - Model SA6200A - General Purpose Accelerometer for Vibration Monitoring

The SA6200A is a versatile accelerometer designed for broad applications in vibration monitoring, in compliance with API 670 standards. This sensor features a broad frequency response ranging from 0.5 Hz to 10 kHz, ideal for a multitude of machine environments. It offers a measurement range up to 50g and mounted resonance at 13 kHz. The built-in amplifier delivers a constant, standard 100mV/g output, ensuring compatibility with existing vibration monitoring systems, electronic switches, and 4-20mA signal conditioners. Engineered with a temperature-stabilized piezoelectric core, the accelerometer ensures precision and reliability in its measurements. Encased in 316 stainless steel, it is electrically isolated from the sensing circuit, promoting durability and stability. Various mounting studs are available to fit different applications. Though the product lacks certain hazardous area certifications, it is built to high standards, serving efficiently within its certified limits.
