microTec Laborgeräte GmbH products

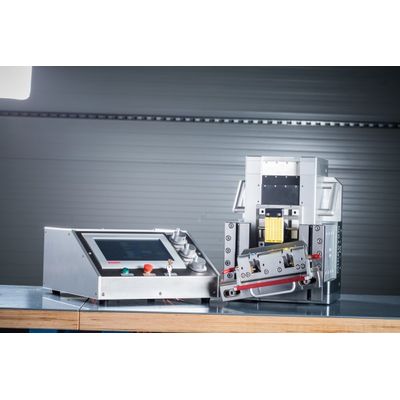

Sections/Knives/Feed; Section thickness ranging from 1 to 1,000 μm, adjustable in 1 μm intervals. Sectioning speed ranging from 1 to 125 mm/s, continuously adjustable. Vertical knife stroke distance: 60 mm. Knife retraction: freely adjustable from 0 to 1,000 µm. Knife clearance angle adjustment freely configurable from 0° to -25°. Knife declination freely configurable in both ways from 90° to 135°. Freely configurable collision protection level. Trimming function for fast trimming of samples with free configurable trim values. Individual sectioning window with freely programmable front and rear starting and finishing points. Manual knife movement via touchscreen or electronic handwheel.

Section thickness ranging from 1 to 1,000 μm, adjustable in 1 μm intervals. Sectioning speed ranging from 1 to 125 mm/s, continuously adjustable. Vertical knife stroke distance: 70 mm. Knife retraction: freely adjustable from 100 to 2,000 µm. Knife clearance angle adjustment freely configurable from 0° to -25°. Knife declination freely configurable in both ways from 90° to 135°. Freely configurable collision protection level. Trimming function for fast trimming of samples with free configurable trim values. Individual sectioning window with freely programmable front and rear starting and finishing points. Manual knife movement via touchscreen or electronic handwheel. Possible direct knife clamping without knife holder.

Section thickness ranging from 1 to 1,000 μm, adjustable in 1 μm intervals. Sectioning speed ranging from 1 to 125 mm/s, continuously adjustable. Vertical knife stroke distance: 70 mm. Knife retraction: freely adjustable from 100 – 2,000 µm. Knife clearance angle adjustment freely configurable from 0° to -25°. Knife declination freely configurable in both ways from 90° to 135°. Freely configurable collision protection level. Trimming function for fast trimming of samples with free configurable trim values. Individual sectioning window with freely programmable front and rear starting and finishing points. Manual knife movement via touchscreen or electronic handwheel. Possible direct knife clamping without knife holder.

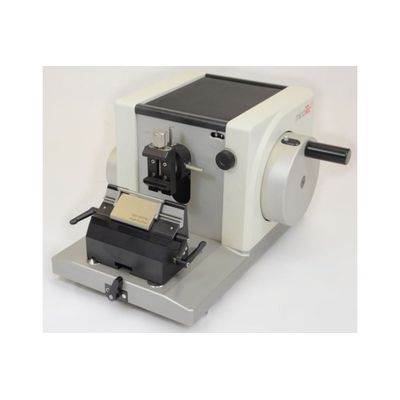

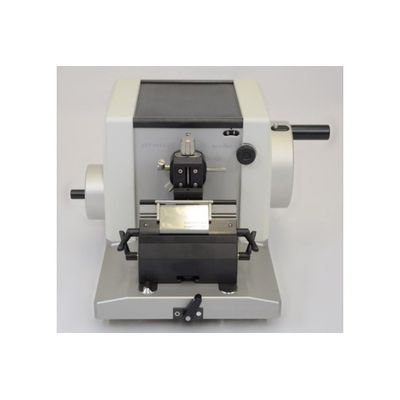

Micrometer and coarse mode system enclosed in a housing. Coarse mode on the left, next to safety clutch. Fine setting with collision guard. Optimal object guiding by means of backlash-free and maintenance-free cross-roller guides. Setting of cutting thickness from 0.5 µm to 60 µm in defined steps. Precise clamping for knife carrier with optimal shifting options. Security lock on hand dial.

Micrometer and coarse mode system enclosed in a housing. Coarse mode on the left, next to safety clutch. Fine setting with collision guard. Optimal object guiding by means of backlash-free and maintenance-free cross-roller guides. Setting of cutting thickness from 0.5 µm to 60 µm in defined steps. Precise clamping for knife carrier with optimal shifting options. Security lock on hand dial. Automatic object retraction.
