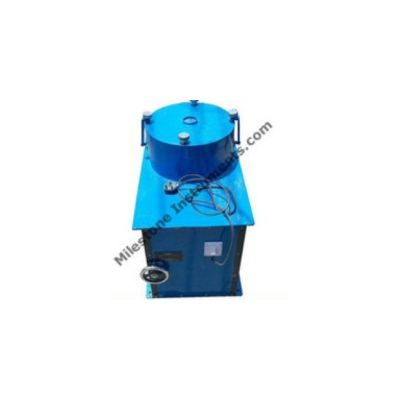

It has a removable, precision machined, aluminum rotor bowl, mounted on a vertical shaft. A filter paper disc is pressed in- between the rotor bowl and cover plate by tightening a knurled nut. The bowl assembly is enclosed in a housing mounted on a cast body. In the electrical operating model, the rotor bowl is coupled to a motor. The solvent may be introduced during test through a cup on the housing cover.

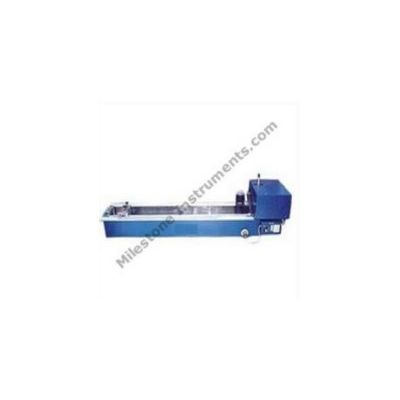

Electrically operated and designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a copper lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 5 cm/min and 1 cm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, AC supply.
