Modcon Systems Ltd. products

MOD-1040 Oxygen Analyzer is designed to provide accurate and reliable measurements of oxygen levels in high-pressure pipeline, making it ideal for a range of industrial applications. With its advanced optical sensor technology and rugged construction, MOD-1040 delivers precise measurements even in the harshest of conditions. Its user-friendly interface and intuitive controls make it easy to operate, while its compact design allows for easy installation directly on process pipe without any sample extraction.

The MOD-1060 Hydrogen Analyzer is an advanced solution for the precise measurement of hydrogen concentration in a variety of industrial and environmental applications. It is an online, in-line analyzer that can be directly connected to the process for continuous monitoring. Built using state-of-the-art sensor technology, the MOD-1060 is designed to ensure high accuracy and reliability under the most challenging conditions, including explosive atmospheres and fluctuating process environments.

MOD-1022 Hydrocarbon Gas Analyzer is a real-time hydrocarbon gas analyzer based on an advanced photonics platform. Calibrated for Hydrocarbon Gas composition monitoring and heating value analysis, this package is optimized for gas-phase product analysis containing C1– C6 alkane gases as typically found in refineries and the LNG industry.

On-line quality analysis of the crude oil properties is important to allow evaluation of the crude oils at any time. The newly redesigned MOD-4100 crude analyzer represents a breakthrough in crude oil on-line analysis. It is a single analyzer, that performs on-line a variety of different critical crude oil measurements to provide real-time analytical data, which is highly important for optimized operation processing of crude oils. The new design of the MOD 4100 analyzer system is based on a “Modular Package concept”. It is inspected and tested by the factory, and ready for immediate installation on-site. The following crude oil critical parameters can be measured on-line and correlated to ASTM:

The wide range of various organic and inorganic components makes it difficult to determine natural gas qualitatively and quantitatively. There is a very exact definition of quality together with exact control in the international natural gas business to guarantee that delivery agreements are exactly observed.

Modcon provides complete integrated analyzer systems and all related services from initial engineering through manufacturing, testing, and field start-up. Analyzers Systems are normally supplied and installed in special Analyzer Houses including air-conditioning, power distribution, lighting, termination and junction boxes, gas and flame detection, relevant piping, and wiring.

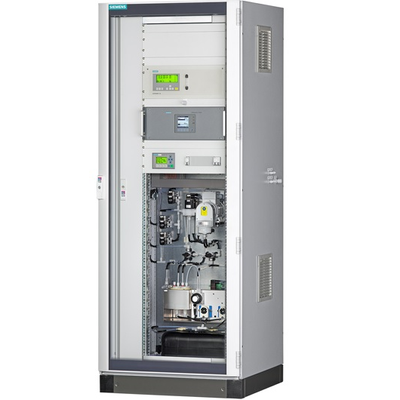

A Continuous Emissions Monitoring System is a complete measuring system with analysers, sample conditioning, and data acquisition incorporated within a single cabinet. The system comprises infra-red/paramagnetic analysers and advanced sample conditioning assembly to produce an accurate and reliable measurement of up to six measuring components simultaneously: O2, CO, CO2, NOx, SO2, and CH4.

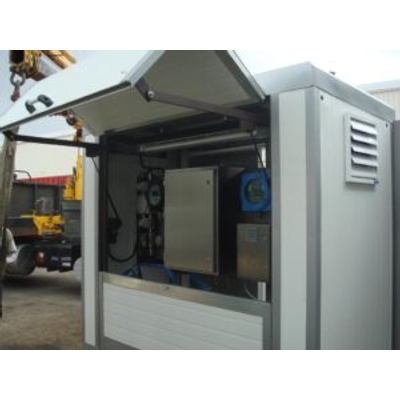

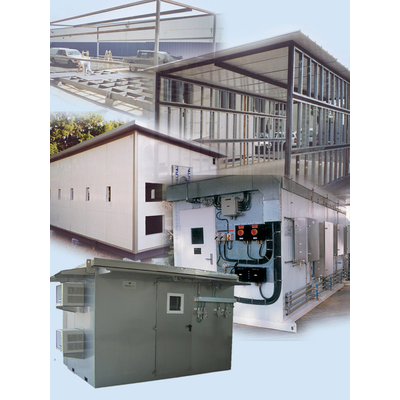

Modcon Analyzer Houses are versatile enough to accommodate virtually any combination of required analyzers, sample conditioning systems, and analyzer management systems.

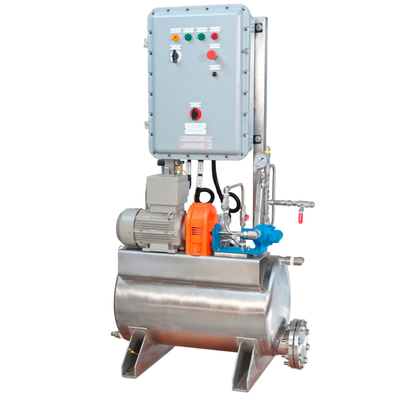

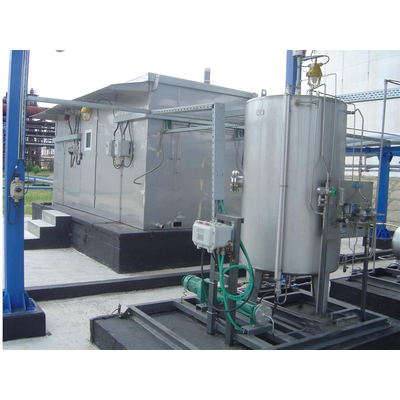

The Sample Recovery System offered by Modcon is designed to collect spent samples from on-line process analyzers and periodically return these samples back to the process lines.

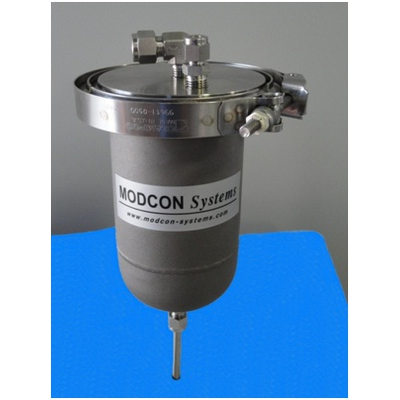

The Modcon MOD-100 Coalescer Filter was developed to provide reliable and efficient fuel and lubricating oil filtration system for mostly petroleum analyzer applications. It is used for separating water from insulating oil, jet fuels, diesel fuels, kerosene and gasoline. According to petroleum production standards the amount of water in fluids should be kept low concentrated. Water droplets causes turbidity for that reason it is advisable to carry out a mechanical separation for the water droplets before the on-line analysis.
