Monoxivent products

Spring hose reels offer a flexible way of removing vehicle exhaust from your shop or auto repair business. Ceiling mounts are the most popular type of set up. They allow hoses to be free hanging and positioned anywhere in the shop. There are some times where you might benefit from mounting on a side wall or even utilizing a floor mount. Always be sure to account for your desired length when planning your system setup.

4”, 5”, 6”, 8” high-temperature silicone Nomex or medium-temperature polyester hose standard. A variety of other hose options are available for special applications. Tube Type: 120-volt, 1-phase. Motor operated by spring rocker switch, by optional 2 or 4 button pendant, or radio remote control. Hose available up to 44 feet of 8 inch diameter on L-Series Reel. Three mounting options available: ceiling, sidewall or floor mount.

Hose diameters ranging from 8" to 18" diameter. XL Series up to 84″ wide drum and holds up to 65′ of 18″ diameter hose (motor operated). Three mounting options available: ceiling, sidewall or floor mount.

Designed for direct attachment to ductwork and is retractable with use of spring balancer and lifting elbow. Available with wall bracket and D Series Fan

The MONOXIRAIL System offers a versatile solution with an exhausting rail adaptable to a multitude of environments.

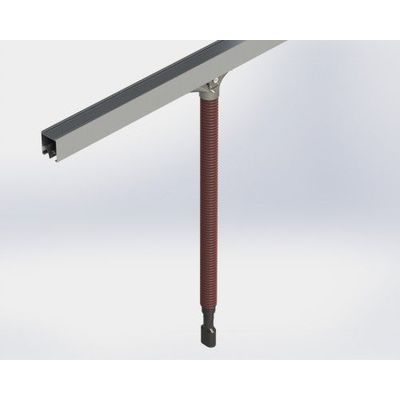

MONOXIRAIL Systems, with Simple Drops, are one of the most versatile indoor source capture solutions on the market today. Aluminum extruded extraction rail with sealing lips and mounting profiles to carry movable extraction trolleys. The extraction rail can be used with fully flexible hose systems. The Technorail modular concept caters for a wide range of applications and workplace environments. Straight-forward assembly, robust design with low pressure losses. Specification includes all necessary seals and clips.

MONOXIRAIL Systems, with Hose Reels, are one of the most versatile indoor source capture solutions on the market today. The rail combined with the hose reel creates a free and open work environment within numerous applications. The ALU models are geared toward higher air volumes and larger equipment.

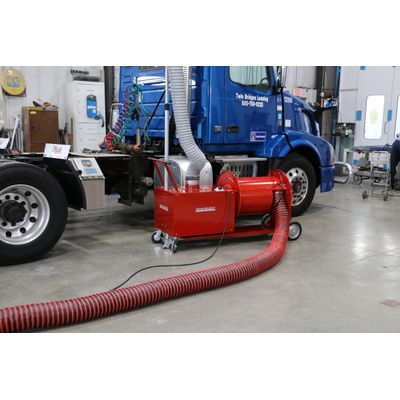

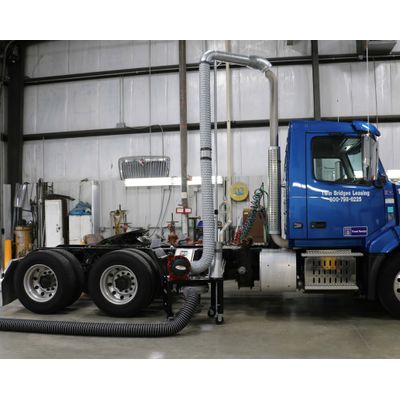

The Portable Fume ELIMINATOR was developed for use in shops where a conventional overhead or under-floor exhaust system is not practical. It is ideal for truck, bus, agricultural and construction equipment applications that require fume extraction.The ELIMINATOR is a compact, self-contained portable exhaust system. The compact base with a footprint of 30” x 30” makes storing the Portable Fume ELIMINATOR easy. Depending on the model, the vertical mast has a stored height of 90” or 120”. The adjustable mast can be easily raised or lowered to fit all top and mid-body exhaust pipes. Summary - BASIC BASE PLATE MODEL, without fan: Base plate, telescoping mast, vertical stack nozzle with straight end or 45-degree end

The Portable Fume ELIMINATOR was developed for use in shops where a conventional overhead or under-floor exhaust system is not practical. It is ideal for truck, bus, agricultural and construction equipment applications that require fume extraction.The ELIMINATOR is a compact, self-contained portable exhaust system. The compact base with a footprint of 20” x 28” makes storing the Portable Fume ELIMINATOR easy. Depending on the model, the vertical mast has a stored height of 90” or 120”. The adjustable mast can be easily raised or lowered to fit all top and mid-body exhaust pipes. For under chassis, simply uncouple the hose on the vertical mast and couple it to an under chassis clamping nozzle. For truck applications, the main vertical stack features a 45-degree end with an 8” opening.

The Portable Fume ELIMINATOR was developed for use in shops where a conventional overhead or under-floor exhaust system is not practical. It is ideal for truck, bus, agricultural and construction equipment applications that require fume extraction. The ELIMINATOR is a compact, self-contained portable exhaust system. The compact base with a footprint of 32” x 72” makes storing the Portable Fume ELIMINATOR easy. Depending on the model, the vertical mast has a stored height of 90” or 120”. The adjustable mast can be easily raised or lowered to fit all top and mid-body exhaust pipes.
