MWA Technology products

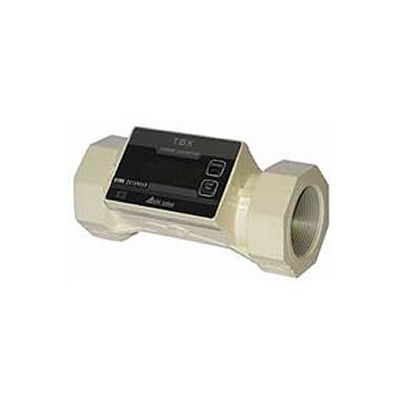

Providing gas even when your meter service is interrupted, a turbine gas meter is perfect for industrial applications where gas flow continuity is crucial,Using gas velocity for measuring the volume of gas within the meter, these inferential style meters limit the measure and lower gas flow rates. Our range of turbine meters are all, space saving, inline meters and a variety of options are available, including a biogas option, to suit your application. TBX low pressure drop turbine gas meters LCD display. Inline meter takes up less space. Self supporting in pipework. 50 mm meter same output as 3inch diaphragm meter.

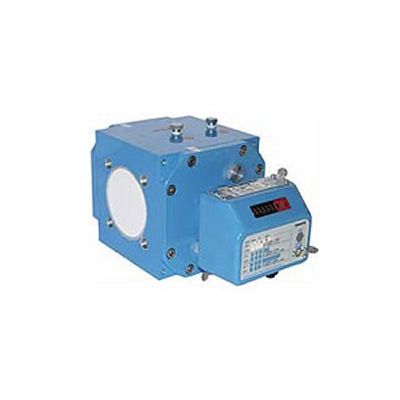

A highly machined precision piece of equipment, the rotary gas meter is a more precise instrument that handles higher pressures than diaphragm meters. These positive displacement meters are designed to measure gas, for custody transfer or technical measurement applications. CGR rotary gas meters range. Inline gas meters with wafer connections to suit PN16 flanges, ANSI 150 alternative. Fitted with low frequency pulse output as standard. Aluminium body, suitable for natural gas and LPG, – 20C to +60C. Nominal rangeability 1:50, Meters read in cubic metres, index can be head rotated through 360o.

Used in most residential and smaller commercial installations, the diaphragm gas meter can measure even a very small gas flow rate and is one of the most popular meters out there.A virtually continuous flow of gas is directed by internal gas valves which fill and expel gas. This advanced meter technology means that you can rely on gas meter accuracy for a long time to come. WIZIT diaphragm gas meters. Compact strong aluminium die cast construction. High sensitivity suitable for low gas flow rates. Suitable for Natural Gas, LPG, Air, Nitrogen and all inert gases. Pulse lead supplied & fitted.

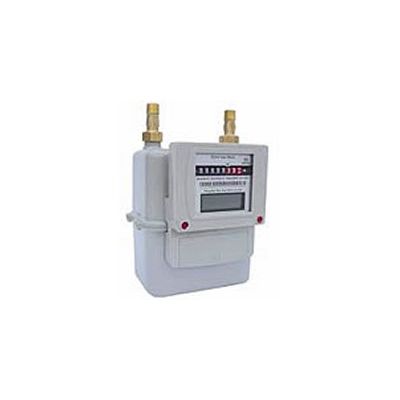

Generally installed in homes and other domestic settings a prepayment meter helps you to manage your energy use. And with no large unexpected bills you have better financial control over your energy bills with a diaphragm gas meter like this.Our gas prepayment meter range has digital or analogue displays that make reading a gas meter easy. Choose from a selection coin meters or a gas card meter to keep a close eye on your energy use. Prepayment card operated gas meter. Operation Prepaid Card System.

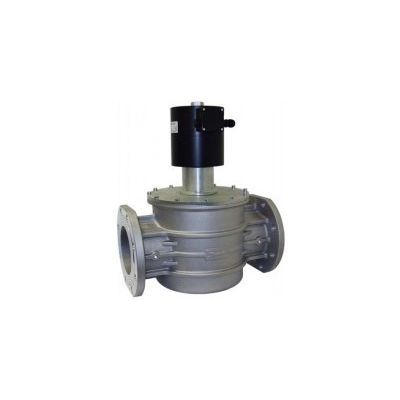

A gas solenoid valve is an electromechanical valve used to control liquid flow rate or gas flow rate.Thanks to the excellent reliability of our valves you will benefit from long term automated fluid and gas control that you can trust. Automatic and manual reset. 230v AC. Conforms to 90/396/EEC – Gas Directive, 94/9/EC ATEX Directive, 2004/108/ECEC certified to EN161, Electromagnetic Compatibility, 2006/95/EC Low Voltage. Inline connections, horizontal and vertical pipelines. For natural gas, propane and butane. Options – Closed Position Indicator Switch, 24v AC, 24v DC, 110v AC.

A gas pressure regulator matches the flow of gas to the systems demand for it, to ensure that you get the safest pressure for your application. Our range of domestic and industrial regulators includes a propane regulator, natural gas regulator, a butane regulator, Dresser Chatterbox Isolation Unit and an ISKRA meters logger. Gas regulators 60DJ, 80DJ, 1500DJ. Appliance and Domestic regulators, 90/396/EEC. Appliance/Pilot Regulator. Inline connections can be mounted in any position. Gas regulators for natural gas, propane and butane. Alternative outlet pressure springs available. Temperature -20 to 70C.

Cast aluminium inline gas filter. 50 micron filtration of gases for control applications. Max pressure 2.0 bar.

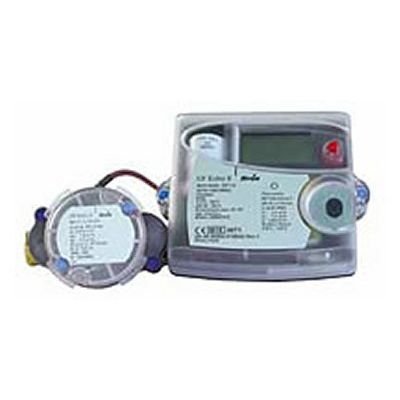

An ultrasonic flow meteris a type of flow meter that measures rate by using ultrasound. Our range of ultrasonic flow meters include: Itron, US and Kamstrup meters. Itron PL 2010. CF Echo II Ultrasonic Compact Heat Meters – 130C max. 1.5m cable length, mains powered, Pt100 temperature sensors. Heat meter (EN1434 & MID) with integrated ultrasonic flow part.

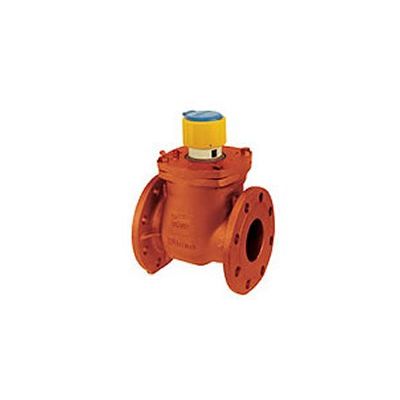

Our Elster UK, previously Kent Meters, flowmeter range is the perfect solution for your water systems management and commercial billing. With sizes from 2-8 inches these bulk flow meters, with pulsed output, monitor the water flow of large amounts of water. Elster metering is a leading manufacturer of innovative water meter solutions, so with an Elster meter you know you are getting the very best product for your hot water application.

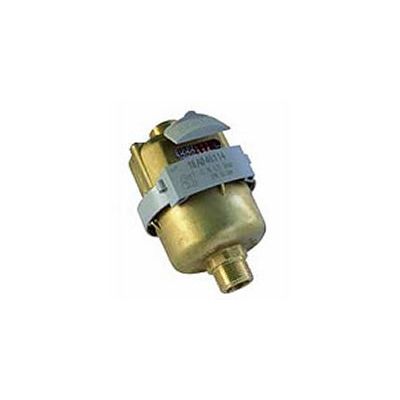

Our range of Elster, previously Kent water meters, and Itron cold water meters provide you with the very best quality at competitive prices. All are direct read meters with pulse kits, where applicable, and fittings from .5 to 4 inches. So you are guaranteed to find the right solution for your cold water system. As with any Elster meter, Kent meter or Itron meter you are getting seriously smart metering from cutting edge manufacturers.
