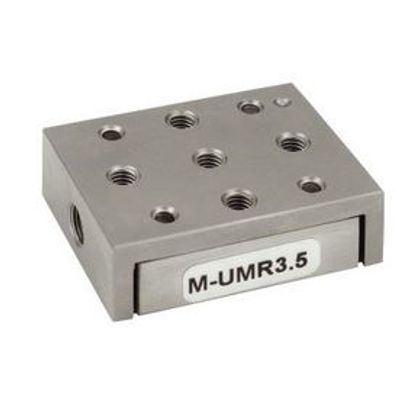

Linear Stage, Double-Row Ball Bearing, 5 mm Travel, M4. The M-UMR3.5 Precision Double-Row Ball Bearing Metric Linear Stage features steel construction for high stability and rigidity. The ball bearings and precision-ground bearing surfaces provide exceptional linear travel, with an angular deviation

Manual Rotation Stage, Steel, 46 mm Diameter, 4° Fine Travel, M4 and M6. The M-UTR46 Precision Metric Rotation Stage is ideal for ±2° fine-tuning angular orientation of any component after rotating it to an approximate angle. Ball bearings are preloaded in precision-ground, tool steel races for a smooth, accurate trajectory with minimum eccentricity. Disengaging the side-mounted clutch knob permits continuous 360° free rotation. Once the approximate angular orientation is obtained, a zero-backlash manual drive provides a fine adjustment of 4°. Scale markings and a vernier on the side of the rotation stage measure angular position with 30 arc min resolution.

Goniometric Stage, Lower, ±5°, 40 x 40 x 20 mm, M3 & M6. The M-GON40-L Lower Metric Goniometric Stage rotates an object about an axis, which is unobstructed by the stage itself, located over the center of the top platform. GON Series Goniometric Rotation Stages use an actuator-driven precision dovetail slide and are spring-loaded to reduce the backlash commonly found in similar worm-gear driven stages.

Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators. The M1 is an aperture version for 1 inch (25.4 mm) diameter optics. UPA-series adaptors, which are compatible with the M1 mount, allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment. This product is also available in 10-piece saving pack M1-PK .

The 8806 Picomotor Motorized Blank Plate Mount has five threaded 8-32 holes and four M4 holes so you can mount that unusual optic. This motorized version can be used horizontally as a low cost tip-tilt stage or vertically as a more traditional optic mount. The compact Picomotor housing adds only 0.75 in. to the overall thickness of this mount. The angular resolution is 0.7 μrad. This mount can be driven by our Open-Loop Picomotor Controller/Driver and requires an 8725 multi-axis adapter to connect to a controller.

Gimbal Mirror Mount, ULTIMA®, Center, 0.5 in, 2 Locking 80-TPI Allen-Keys. The U50-G ULTIMA^® Gimbal Optical Mount has a radically simple way of tilting an optic without translating its surface. Conventional gimbal mounts tend to be large and complex to allow high precision true gimbal motion at the optic surface. As a result, they are usually expensive.

Plano-Convex Lens, N-BK7, 6.35 mm Diameter, 6.4 mm EFL, 430-700 nm.

Plano-Concave Lens, N-BK7, 6.35 mm Diameter, -25 mm EFL, 430-700 nm.
