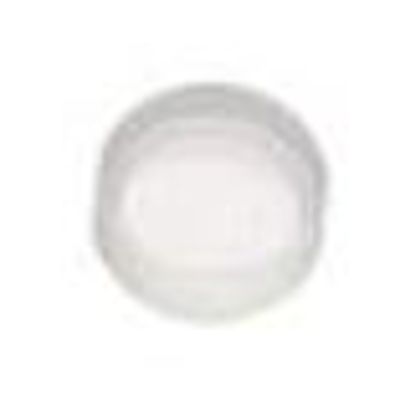

Newport - Model KPC010AR.14 -Plano-Concave Lens

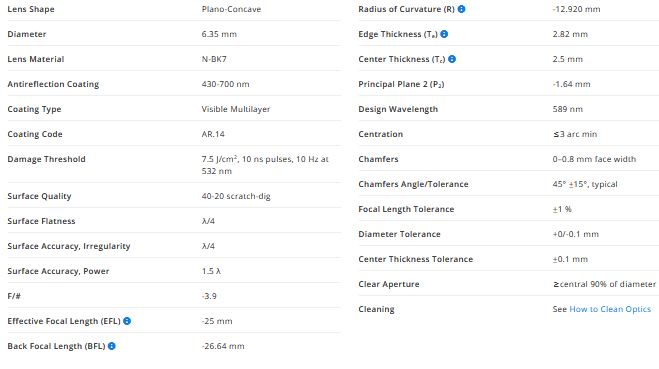

The KPC010AR.14 N-BK7 Plano-Concave Lens is a 430 to 700 nm anti-reflection coated, 6.35 mm diameter, N-BK7, plano-concave lens with an effective focal length of -25 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport`s N-BK7 precision plano-concave lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.
