Numak Srl products
Fuel Management System

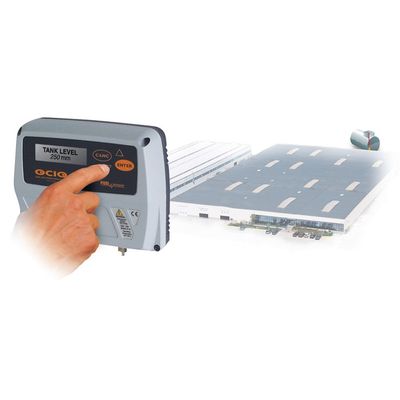

Numak - Level Indicator
Ocio is a system for the management of fluids in the tanks. The system register the static pressure by a tube in the tanks and visual the level of fluid of tank or volume. Management system for to control the level of fluid in tank.

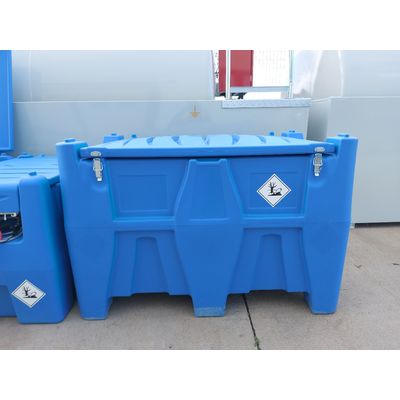

Transport Tanks - Transportable Tanks Light Series
Numak - Transportable Polyethylene Tank
Transportable tank complete with 40 Lt/min dispensing unit. equipped with 12 or 24 Volt electric pump, automatic gun in stainless steel , 4 m of rubber dispensing hose, stainless steel inserts, battery connection clamps, lid with lock. Capacity 220 liters: Dimensions 220 liters : Length 800 mm, Width 600 mm, Height 700 mm, empty weight kg.28. Capacity 440 liters: Dimensions: length 1200 mm, width 800 mm, height 700 mm, empty weight kg.51.

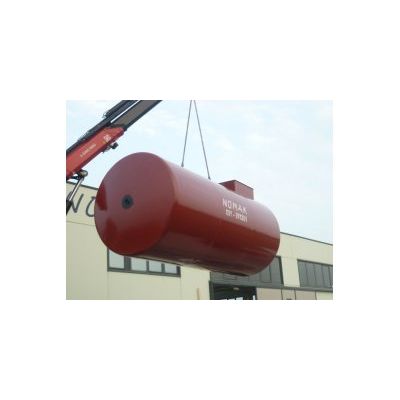

Buried Tanks
Numak - Underground Tanks
The underground tanks are the ideal solution for the storage of flammable liquids and not, cylindrical horizontal axis are divided into single and double wall and are used to implement self-service underground facilities in combination with various types of fuel dispensers and to our Management System Petrolcontrol. Our tanks are buils by using high-quality S235JR metal sheets MIG welded internally and submerged arc welded externally, they are all equipped with Test certification for Fire Service Dept., lt/cm comparative table, in conformity with prescriptions and modes established by the 31/07/1934 Ministry Decree and 246 Ministry Decree on 24/05/1999 and subsequent modifications (29/11/2002 Ministry Decree).
Tanks
Numak - Double Walled and Single Walled Underground Tanks
Double walled and single walled underground tanks for collection and storage of fuel, heating gas oil or generating sets, oil or mix, chemical liquids, water. The underground tanks are the ideal solution for the storage of flammable liquids and not, cylindrical horizontal axis are divided into single and double wall and are used to implement self-service underground facilities in combination with various types of fuel dispensers and to our management system Petrolcontrol.
NUMAK SRL - External Tanks
EXTERNAL TANK for diesel, approved by the Italian Ministry of the Interior with conteinment basin, distributor and protection roof

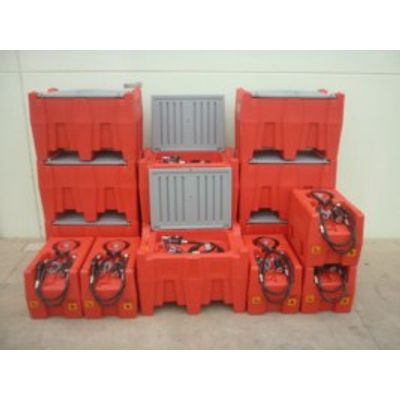

Light Portable Tanks
Polyehtylene Light Transportable Tank, approved ADR versions available, to transport gas oil in safety!
Numak - External Run Down Oils Collection Tanks
External run down oil tank, single walled, they are buils by using high-qulity S235JR metal sheet equipped with: Containment basin 100% 400x400 mm hatch with internal grid for filter dripping. Easy to remove, to allow inserting the suction pipe to drain the tank. Preset for galvanised sheet steel roof (optional) Level indicator Lifting eye bolts External varnishing Test certification Capacity 490 lt. - 1000 lt. - 2000 lt. - 3000 lt. - 5000 lt. - 9000 lt.

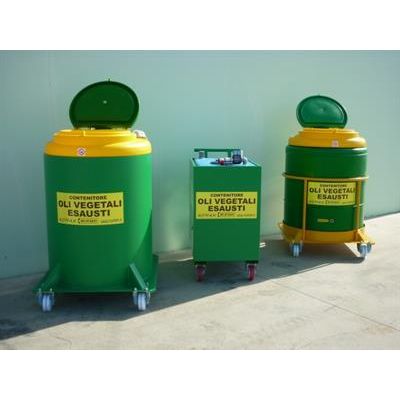

Wheeled run down oils collection tanks
Storage station for run down oil with wheels and internal retaining reservoir, easy to maintain even then full. Precise and safe storage station for run down oils to temporary manage run down oils; it presents a carbon steel reservoir of 3 mm, on pallets, threaded hatch, removable draining filter, watch level indicator. The stainless steel shut-off net, supplied with active carbons for the tank breathing, also avoids dangerous vapours while opening it. Unique printing, reinforced with anti-oil polyethylene, acid resistant, it is treated with anti UV agents to be permantly exposed to the atmospheric agents following the OSHNER, DIN and AFNOR rules.

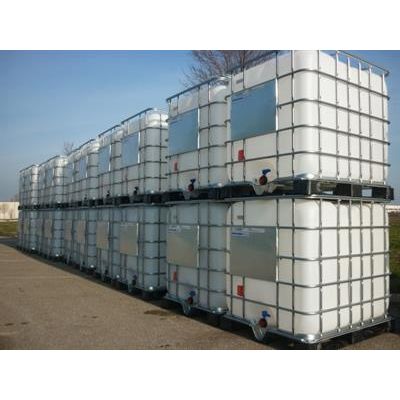

Pallet tanks
Polyethylene and UV-rays stabilised tanks (HDPE) for external storage. Proper for acids, resin, alkaline solutions, oils, not inflammable chemical substances, etc. Proper also for high density products, especially planned for transport and storage even if disposed on different levels. Built in galvanised iron cage assembled on wood pallet and equipped with valve. High Density Polyethylene (HDPE) is a perfect material to build containers for a wide range of products; there is no liquid that cannot be contained in these tanks. Thanks to its high resistance, it can be in contact with almost any chemical, petrol and pharmaceutical substances without being damaged.Meter

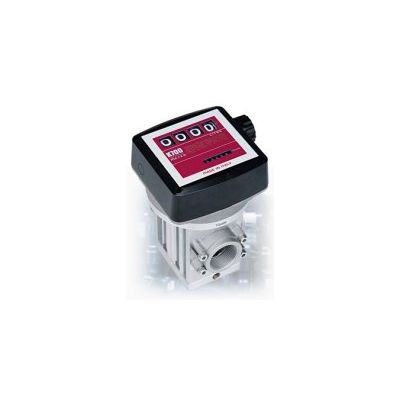

Numak - Mechanical Flow Meters
Volumetric flow meters with mechanical indicator for dispensing control of diesel fuel in high flow-rate plants. Thanks to the measuring system with oval gears, high accuracy over the entire flow rate range is achieved, in addition to low pressure losses.
