Numak - Model K700 -Mechanical Flow Meters
FromNumak Srl
Volumetric flow meters with mechanical indicator for dispensing control of diesel fuel in high flow-rate plants. Thanks to the measuring system with oval gears, high accuracy over the entire flow rate range is achieved, in addition to low pressure losses.
Most popular related searches
mechanical flow meter
flow meter
volumetric flow meter
flow meter calibration
flow indicator
flow calibration
pressure monitoring
- Mechanical flow meters with oval gears Range: 20 ÷ 220 l/min
- Mechanical flow meters with oval gears
- Fluid: Diesel
- Flow rates: from 20 to 220 l/min.
- Accuracy: ± 1% over the flow rate range (40÷200 l/min).
- Repeatability: 0,2%.
- Max. working pressure: 10 bar.
- Bursting pressure: 30 bar.
- Indicator:
- Partial with 4 digits (max 9999 litres), total with 7 digits
- Resolution: 0.1 litres
- Can be calibrated
- Aluminium measuring chamber

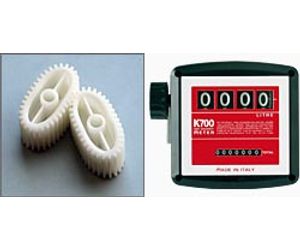

- Oval-gear measuring system.
- Gears made of acetalic resin.
- Aligned 1”BSP inlet/outlet ports
- Lid can be rotated to achieve four different flow directions.
- Mechanical indicator with rotating wheels with resettable partial and non-resettable total
- Available in litres and gallons.
- Flanged coupling from both sides
