OBM Machines B.V. products

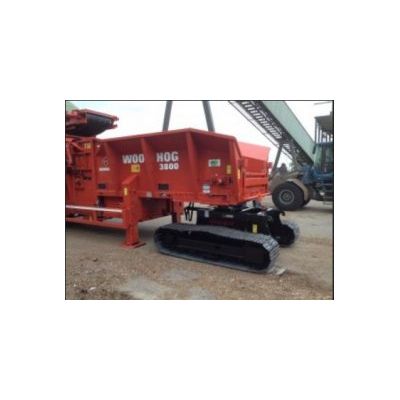

A machine on tracks has a strong preference during work, but for transport to other locations a wheeled model is more favourable, as then there is no need for a special low-bed trailer. Through the use of the OBM Moover both wishes were forged together.

Baler BOA, type 2100 75 (8) PR SD, 90 t press force, with REFUSE ram, HARDOX floor, yoc 1995, with only 9,163 operating hours, drive power 2 x 37 kW. Technical data baler: Manufacturer BOA. Type 2100 75 (8) PR SD. Year of manufacture 1995. Operating hours 9,163 hours, as of June 23. Pressing force main press 90 t. Operating pressure 280 bar. Dimensions of feed chute 1,620 x 1,080 mm. Filling volume / pressing cycle 2.4 m³. Bale dimensions 1,100 x 1,100 mm, length variably adjustable 800 up to 1,600 mm. Drive power 2 x 37 kW. Connected load 92 kW. Tying system 4-fold vertical, fully automatic, prepared for 8-fold cross binding. Throughput rates for quality:. B12 / B19 approx. 10 t/hour, bale weight up to 1200 kg/bale. Foil approx. 10 t/hour, bale weight up to 800 kg/bale. Hydraulic oil tank capacity 1,500 L. PLC control system Siemens SIMATIC S7-1500, renewal in 2020. Press dimensions built up with hopper 15,000 x 6,000 x 6,500 mm (l x w x h).

Baler BOA, type D225-165-D-5V/5H-1.6, 211 t pressing force, yoc 2022, only 1,568 operating hours, drive power 3 x 45 kW, with 10-fold cross tying system

Baler Paal, type Impress D225-165-D-5V/5H-1.6, pressing force 21 t, yoc 2022, only 1,486 operating hours, drive power 3 x 45kW, 10-fold cross tying system

Cardboard shredder Presto, type PZA, yoc 2011 and 2007, throughput volume approx. 130 m³/hour, drive power 7,5 and 2,2 kW, electrical connection 32 A

Bale opener and bale dewiring system, yoc 2015, only approx. 3,500 operating hours, throughput approx. 50 bales per hour, with weighing system

Cross Wrap Bale Opener Line, type BO 4000, yoc 2015, only 674 bales on three days were opened, throughput rate one bale in 45 seconds

Turn table wrapping line UNITECH S.r.l., type UNIWRAP 200 AE, yoc 2007, with top sheet despenser for fully automatic packaging of palletised goods
