Ocean Innovations products

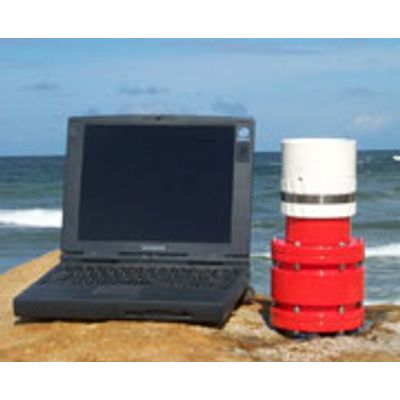

A compact, cost-effective meter with vector averaged current speed and direction. The Falmouth Scientific, Inc. 2-Dimensional Acoustic Current meter represents the state of the art in acoustic current meter design. Utilizing ultra-low-power solid-state design, the 2D ACM offers a very compact, lightweight measurement tool capable of high-accuracy horizontal current measurement. With internal data logging capability, long- term battery operation, internal electronic compass and tilt sensors, the 2D ACM is well suited for a broad variety of measurement applications.

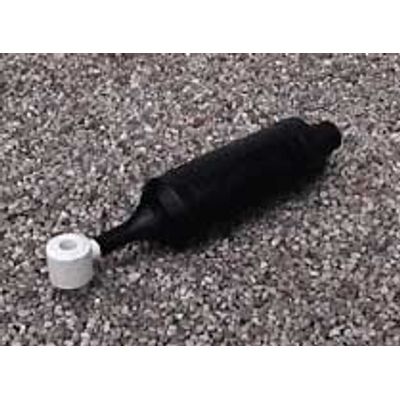

Shallow Water, Super Low Power, Directional Transducer. Range: Up to 350 meters. Depth: Up to 200 meters. Data Rate: 9600 to 19200 bits/sec.

Odyssey Systems specializes in ocean engineering and product development. Odyssey has capabilities in mechanical and electronic engineering, software development, and fabrication of electro-mechanical assemblies.

Focus on the job at hand with fast start-up and reacquisition times, 60 cm accuracy, and an easy-to see status indicator for power, GPS, and DGPS.The durable enclosure houses both antenna and receiver. 10 Hz update rate (20 Hz optional). Pitch/Roll accuracy 1° using tilt sensor. 60cm horizontal accuracy with SBAS (WAAS). 20mm horizontal accuracy with RTK.

Stainless steel welded frame:  22` w. x 34` l. x 28` h.Components of stainless steel, pvc, etc. appropriate for fresh and salt water application.Belt drive w/ variable tension.Weight: approx. 65 lbs. w/out towfish cable.Features `wheeled` portability and `dolly` style maneuverablility.Extendable fiberglass boom (extends approx. 20`).Cable aligner (manual rollerstyle)Powered by 24v dc motor w/12` power/switching cable w/ batter clamps and 25` remote (solenoid) switching able (extendable as needed).Includes 4ring slipring assembly adapted to purchaser`s equipment with appropriate connectors provided by purchaser.  Deck cable from slipring as needed but 25` as standard.System is appropriate for specified use with `Marine Sonic` SSPC sidescan sonar system (and others) with spool to accommodate 200m of 3/8` towcable.Deliverable ready to use with the installation of towcable.Custom features (300m spool, extended cables, etc.) at additional cost.
