FSI - Model 2D ACM -2-Dimensional Current Meter
A compact, cost-effective meter with vector averaged current speed and direction. The Falmouth Scientific, Inc. 2-Dimensional Acoustic Current meter represents the state of the art in acoustic current meter design. Utilizing ultra-low-power solid-state design, the 2D ACM offers a very compact, lightweight measurement tool capable of high-accuracy horizontal current measurement. With internal data logging capability, long- term battery operation, internal electronic compass and tilt sensors, the 2D ACM is well suited for a broad variety of measurement applications.
The instrument is available in either shallow-water plastic, or deep-water titanium housings. The 2D ACM also has the capability of adding a CTD module and can log up to two analog inputs from external sensors (e.g., DO, OBS, Fluorometer, Transmissometer).
- Compact, lightweight, low-maintenance construction
- Simple to operate
- 2-axis true cosine response velocity measurement
- Accurate velocity measurement with excellent low-velocity resolution
- Electronic magnetoresistive compass with 2-axis tilt sensor
- Temperature measurement capability
- Extremely long battery life with low-maintenance alkaline batteries
- Real-time output/display capability
- Long-term data logging to internal flash memory
- ASCII serial data output via RS-232 or RS-485
- Built-in real-time clock with on/off power control

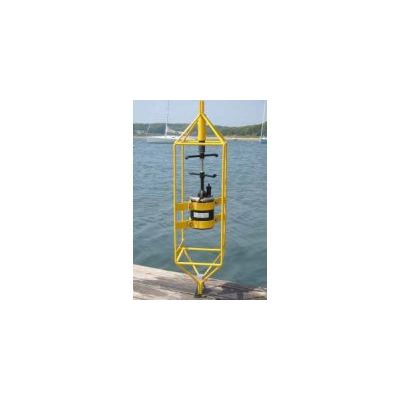

- 1.5-ton working strength mooring frame (optional 3-ton mooring frame)
- Optional conductivity, temperature, pressure sensor package may be added
- Choice of epoxy shallow-water or titanium deep-water housing
