Officine Piccini S.p.A. products

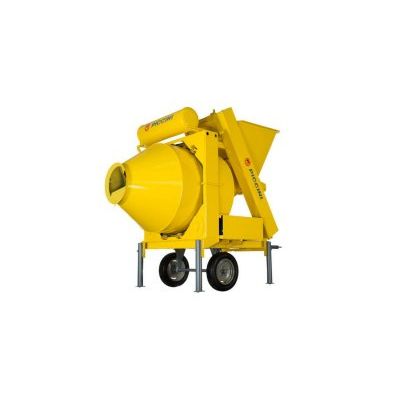

Drum capacity 500 lt, actual output 350 lt. Three-phase Lombardini electric engine HP 5.5. Compact and reliable reversing electric mixer with hydraulic tilting loading bucket, with over-dimensioned chassis. Easy to transport and assemble.

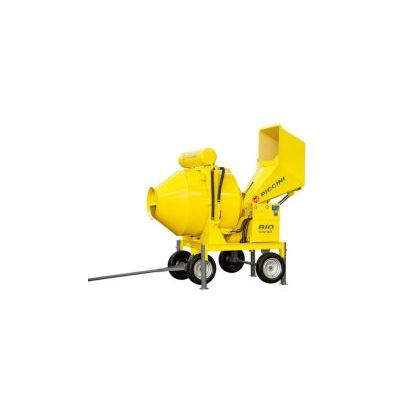

Drum capacity 800 lt, actual output 500 lt. Three-phase Lombardini electric engine HP 10. Compact and reliable reversing electric mixer with hydraulic tilting loading bucket, with over-dimensioned chassis. Easy to transport and assemble.

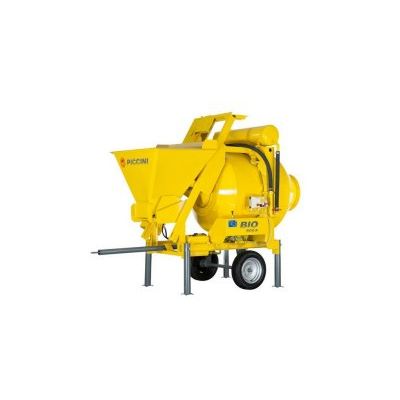

Drum capacity 500 lt, actual output 350 lt. Three-phase Lombardini electric engine HP 5.5. Compact and reliable reversing electric mixer with hydraulic tilting loading bucket, with over-dimensioned chassis. Easy to transport and assemble.

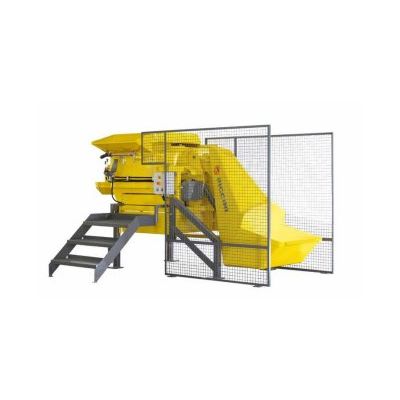

A complete range of planetary mixers with adjustable scraping arm or with hydraulic tilting loading bucket, with hourly productions from 5/10 m3 to 8/14m3. Separate weighing hopper for aggregates and cement with load cell, mixing blades, replaceable wearing plates on tank bottom and walls, hydraulic opening of discharging hatch, screw breaker’s hopper integrated in the machine, water dosing by impulse emitters and electrovalve, manual and automatic start/finish control, setting of aggregates and cement weight by computer. These are small and compact batching plants, suitable for productions of premium quality concrete in building plants. Simple to use, easy to transport and assemble.

Scraping arm batching plant, output 500 lt, hourly production ranging between 14/18 m3. No. 2 separate weighing hoppers with load cells, mixing blades, replaceable wearing plates on tank bottom and walls, hydraulic opening of discharging hatch, water dosing by impulse emitters and electro-valve, manual and automatic start/finish control, separate cement dozer, setting of weight of 4 aggregates + 2 cements by computer, Piccini Touch management system with unlimited numbers of recipes. Planetary mixer batching plant, compact and suitable for productions in building sites, and able to produce optimum and certified concrete. Simple to use, easy to transport and assemble.

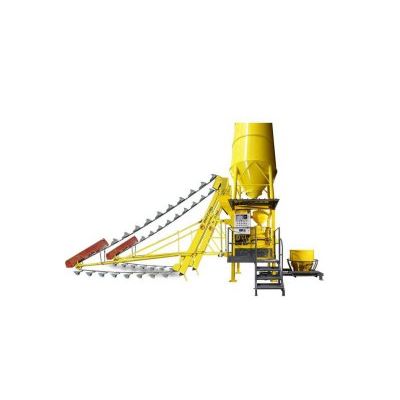

Scraping arms plant for loading truck mixers. Aggregates hopper dispenser up to 4500 lt output, cement dispenser with separate weighing by 1500 Kg, both with load cells, hourly production from 23 to 29m3. Aggregates/cement scale up to 20000 Kg, cement extraction from dispenser by screw, aggregates extraction by conveyor belt and supplementary spinous load belt directed to truck mixer. Water dosing with impulse emitters and electro-valve, manual and automatic start/finish control, weight setting of 4 aggregates + 2 cements by computer. A completely automatic plant for dosing aggregates/cement/water allowing direct loading into truck mixer. Particularly compact, simple to assemble and able to ensure optimal dosing for concrete output and quality.

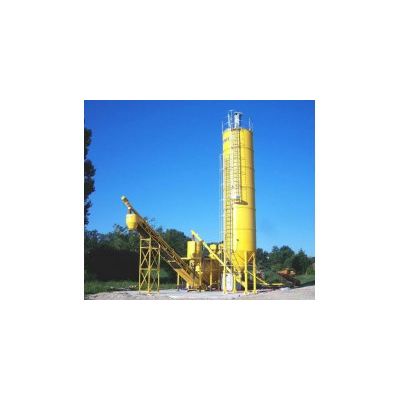

Scraping arms plants, with an hourly output ranging from 10 to 22 m3. Forced planetary mixer with skip, mixing paddles, replaceable tank bottom and walls, oleodynamic opening of discharging hatch. Weighing of aggregates with scales with load cells on skip, cement dispenser, pre-setting of weights by computer, with second arm up to 4 aggregates. Automatic water plant, 1.7 m discharge height, which can be increased to 4 m. Scraping arms plants for suitable for operations in building plant/sites and for loading truck mixers. Compact, easy to transport, use and assemble, capable of supplying a good output of prime quality concrete.

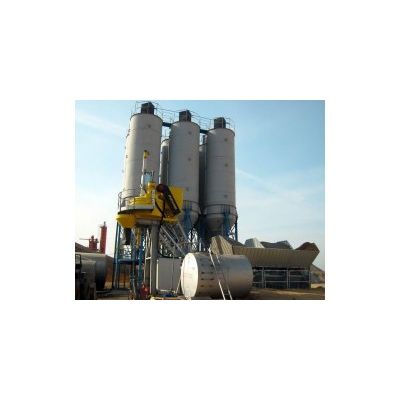

Total of 3 small-sized, hot dip galvanized aggregates storing hoppers, total capacity 42 m3, hourly production 40 m3, planetary mixer MRF 1000/S with load skip. Electric vibrator on sand hopper, double hatch for aggregates, cement dispenser 600 Kg, aggregates weighing scale 5000 Kg with compression loading cells. Pneumatic plant with compressor, water volume plant with electronic litre indicator and water pump. Piccini Touch management system with unlimited number of recipes, pre-arrangement for 2nd cement, for no. 2 additives and for blowing plant for no. 2 silos. Our most popular mobile batching plant for loading truck mixers. From Asia to Europe, in the African Continent and in America, it is the batching plant which best meets the needs of our clients. Completely hot-dip galvanized, compact and pre-cabled, it may be transported by sea in a single container, minimal foundations required for quick assembly and setting up.

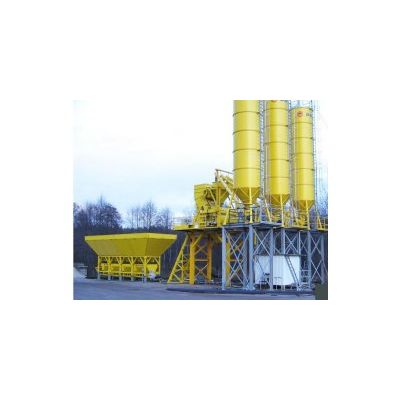

Four different batching plants models with productions ranging from 30 to 120m3:Planetary mixers on the first two models and horizontal axis mixers on the other two models, ranging from 3 to 4 aggregate storing hoppers, total capacity from 45 m3 to 120 m3. Electric vibrator on sand hopper and hygrometric probe, cement dozer, aggregates weighing scales with compression loading cells. Pneumatic plant with compressor, water plant consisting of high pressure pump, additives dispenser from 15 to 45 liters, double skip speed. Piccini Touch management system with unlimited number of recipes. Extremely compact plants, easy to use and to transport, both by sea and land, minimum foundation work required for assembly. They are capable of supplying high quality certified concrete.

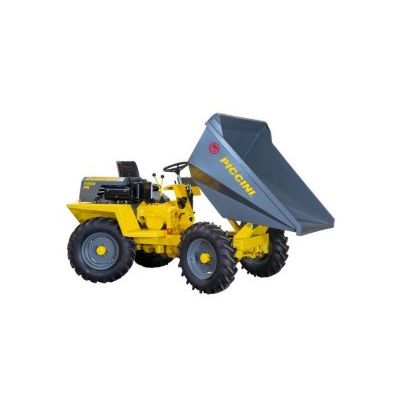

Hydraulic front tipping, bucket capacity 1000 lt in water and 1300 lt heaped. 2000 Kg pay-load 20 Hp – kW 15 2-cylinder air-cooled diesel engine with electric start. 4-wheel-drive, 4 steering wheels, hydraulic steering, 4 assisted disk brakes, disk type parking brake. Single disk dry clutch, 4 forward/reverse speeds with inverter clutch-type joints to protect differential axles. It is the machine for a building plant. Sturdy and easy to drive, capable of working in the most difficult environmental conditions. Easy to transport by road and sea (20’ box container). Machine destined to non-EEC markets.
