Oiltech Dredging Equipment
11 products found
Oiltech Dredging Equipment products

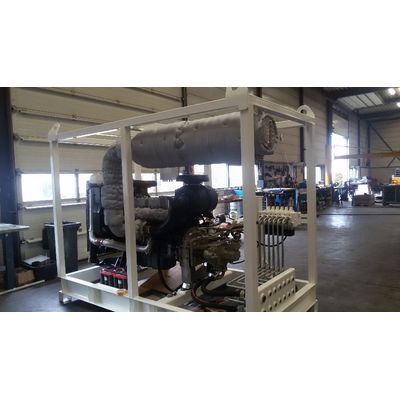

Oiltech - CSD-250
Specs: Hydraulic pump Kawasaki load sensing. Max hydraulic flow 600 l/min. Working pressure @350 bar max. Engine Doosan or catepillar (marine engine possible) +- 400 KW. Hydraulic tank 1200 ltr. Diesel tank 600 ltr. This power pack is a standaard workingset with only P and T (pressure, return, leak).
Oiltech - Get more Flow
Flow 125 m/hour @8 bar. Engine 70 Kw. Suction hose 200 mm. Pressure 80 MM. A bigger water jetpump is possible.
Oiltech - Sand and Gravel
The Jet Suction Sand Dredger is a specialized type of dredger that uses a powerful jet of water to extract sand and other sediment from the bottom of a water body. This dredger is commonly used for sand mining and excavation in rivers, lakes, and coastal areas due to its high efficiency and ability to operate in shallow waters. Our company offers top-of-the-line Jet Suction Sand Dredgers that are designed and manufactured to meet the specific needs of our customers. Our Jet Suction Sand Dredger is equipped with a powerful jet pump that creates a strong vacuum, which sucks up sand and other sediment from the bottom of the water body. The dredger also features a large hopper, where the extracted material is stored before being discharged onto a barge or shore. Our Jet Suction Sand Dredgers are designed for easy operation and maintenance, and are equipped with advanced hydraulic and electrical systems that ensure reliable performance.

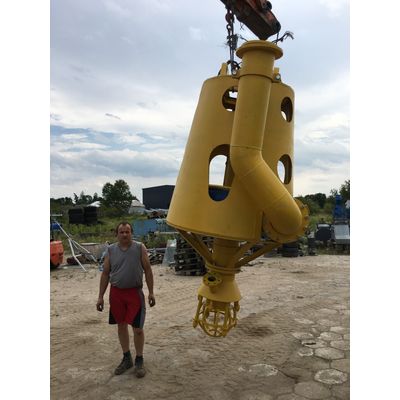

Oiltech - Submersible Dredge Pumps
DOP submersible dredge pumps are efficient, flexible and cost effective with a versatile tool designed for sand and gravel mining operations. This hydraulic driven submersible dredge pump is for sale!

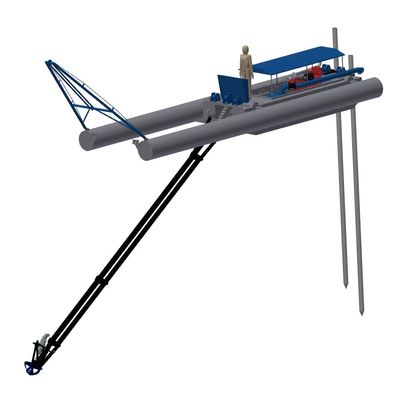

Oiltech - CSD 250
A Cutter Suction Dredger (CSD) is a vessel used for removing sediment, mud, and other materials from waterways and bodies of water. It employs a rotating cutter head to break up material, and a suction pipe to transport it to a discharge location. CSDs are used in a range of applications, including construction and maintenance of ports and coastal structures, creation of artificial islands and beaches, deepening navigational channels, and extracting minerals like sand and gravel. Our CSDs are designed to efficiently dredge hard materials such as rock, clay, and silt, and are available in sizes ranging from 6 to 20 inches to suit different project requirements. Our vessels can be customized for dredging depth, working capacity, and discharge distance, and offer a maximum flow rate of 6000 cubic meters per hour. We use high-quality materials and components in manufacturing to ensure longevity and provide ongoing maintenance and repair services to our customers.
Oiltech - The Reliable Solution for Sediment Excavation in Water Bodies
Are you struggling to remove sediment or mud from your water body? Look no further than our high-quality auger dredgers. With the ability to reach depths of up to 10 meters, our auger dredgers are designed to effectively remove sediment, sand, or gravel from the bottom of water bodies such as rivers, lakes, and coastal areas. Our auger dredgers are equipped with a rotating helical screw, or auger, which excavates sediment with ease. The dredger consists of a main pontoon, two smaller side pontoons, and an operator cabin installed on the main pontoon. A diesel-driven hydraulic power pack, located on the main pontoon, controls the side winches, hoisting ladder winch, and auger drive. The dredge pump, which is powered by a water-cooled diesel engine, ensures efficient operation during sediment removal and excavation. Our auger dredger is capable of handling materials with varying textures and densities, making it a reliable choice for sediment removal and excavation.
Oiltech - Efficient and Reliable Solution for Gold Mining
The Gold Dredge: An Efficient and Reliable Solution for Gold Mining The Gold Dredge is a suction dredger specially designed for gold mining. Its simple and robust design allows for easy assembly, disassembly, and transportation, with three pontoons - the primary pontoon and two side pontoons - powered by a diesel marine engine and a mechanical PTO that drives the dredge pump. The open cooling-water system ensures the reliability and efficiency of the diesel engine. One of the unique features of the Gold Dredge is its Jet installation, which can be switched between the dredger and the sluice box. The Jet uses water to create hydraulic riffles in combination with Hungarian riffles, improving the efficiency of the gold mining process and enhancing production. All equipment is located on the primary pontoon, making transportation and disassembly easy. The Gold Dredge can be operated by a single person, making it an ideal solution for efficient and effective gold mining.
Oiltech - Dredgers for Sand and Sediment Removal
A jet suction dredger uses high-pressure water jets to break down sediment and rocks in waterways. Our eco-friendly and efficient dredgers are designed for shallow waters and can clean reservoirs, sand stocks, docks, and harbors. They can be customized for specific needs and are powered by diesel engines. We offer comprehensive support services to ensure our equipment remains in good working condition.

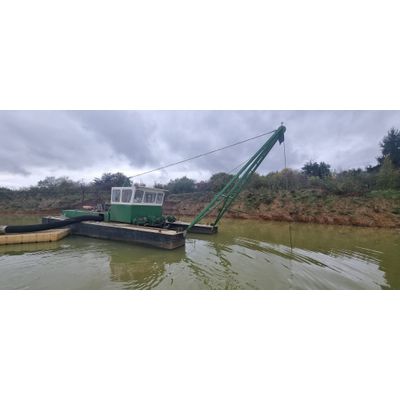

Operational and Reliable Dredger
Looking for a reliable and affordable dredger for your marine projects? Check out our latest offer! We have a used, second-hand, refurbished, and reconditioned dredger (overhaul in 2022) that is well-maintained and operational for sale. This used dredger comes with 1x Mainponton 8.0 meter x 2,5 meter and 2x Side Pontons 11.0x1.0x1.0 mtr, with a draft of 0.90 cm. The year of manufacture is 2015, making it a reliable and modern machine. The Warman dredge pump 10-8 F HG is capable of dredging 20% sand/gravel with a capacity of plus/minus 200-250 CBM per hour. It can dredge up to 10 meters deep at a rate of 250 CBM per hour (6,5-7 Bar) and up to 15 meters deep at a rate of 200 CBM per hour (6,5-7 Bar). The second-hand dredger is powered by a Mercedes 420 PK Engine and comes with a Dongi transfer case and a Daf 1160 engine met Stork WaterJetpomp @ 7 Bar 400 CBM. Don't miss this opportunity to own a high-quality dredger that will meet all your marine needs.
