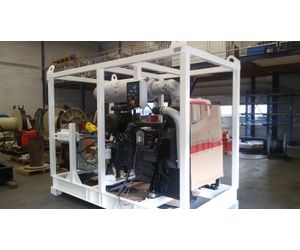

Oiltech - Model HPU -CSD-250
Specs: Hydraulic pump Kawasaki load sensing. Max hydraulic flow 600 l/min. Working pressure @350 bar max. Engine Doosan or catepillar (marine engine possible) +- 400 KW. Hydraulic tank 1200 ltr. Diesel tank 600 ltr. This power pack is a standaard workingset with only P and T (pressure, return, leak).
- We can supply the controls for your cutter suction dredger depending on your cutterhead, winches, spuds ect.
- 28 KW for Dop cutter
- 75 L/min @250 Bar
- 195 Kw for the Dop Dredge pump
- 483 L/min @250 Bar
- Max 40 KW cutter power for a cutter suction dredger
- Side winches 40Kn 0-15 mtr/min
A hydraulic power pack is an important device used in dredgers to provide hydraulic energy to various hydraulic systems and components. It is a compact unit that uses electrical energy to generate high-pressure fluid that powers hydraulic motors and actuators responsible for controlling various systems and components of the dredger, including the cutter head, dredging pumps, and hopper doors. As a crucial component of the dredger, the hydraulic power pack plays a critical role in ensuring the effectiveness of the dredging operation.
At our company, we specialize in designing and manufacturing custom hydraulic power packs for all types of dredgers, including diesel-driven systems for cutter suction dredgers. Our hydraulic power packs can control different dredging equipment such as cutter heads, boom winches, side winches, and spud systems. We also design hydraulic systems for DOP submersible dredge pumps, with a total installed power capacity of up to 1000 kW at 250 bar. If you need a reliable hydraulic power pack for your dredging operation, we have you covered with our expertise and customized solutions.
