Onslow Engineering Pty Ltd. products

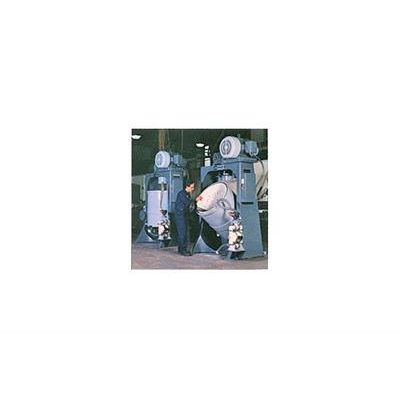

A unique but simple machine which is normally fixed speed and fixed batch size. A range of batch bead mills is available from laboratory size to 450 litre mill base capacity. The mill contains a charge of glass beads which, when agitated with the product, will achieve a fine dispersion on most pigments within 15-30 minutes. The product is then discharged via a specially designed valve incorporating a separator screen to retain glass beads.

The Roto-Scrubber is a simple but very effective machine used for the cleaning of mixing tubs from approximately 50 litre drums up to 1700 mm diameter and 1700mm overall height. The pneumatically operated brush head adjusts automatically to the tub size being cleaned. Because of the units effectiveness, a very minimal quantity of solvent is required to clean tubs. Interchangeable brush heads would be required for large ranges of pot diameters.

Scope: A floor-mounted hydraulic emptying press with optional dosing head and complete with hydraulic powerpack and necessary controls suitable for use in conjunction with special mixing vessels.

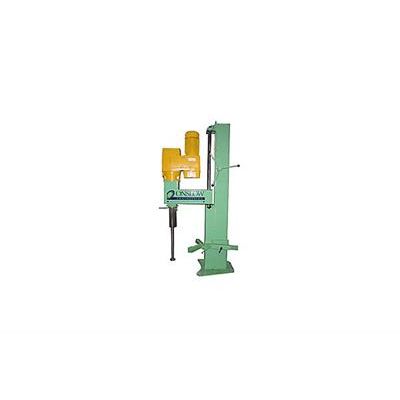

High Speed Cavitation disperser available in either mechanical variable pulley drive to the mixer shaft or inverter variable speed drive. Drive mounted on bridgepiece attached to the machine column and base assembly. Shaft speed infinitely variable between approximately 760 and 7700 rpm. Mixer shaft fitted with 50,75mm or 100mm diameter stainless steel rotor with rotor boss and nut. Variable speed unit complete with speed indicator. Drive pulleys and belt fully enclosed. Central column and disperser shaft of sufficient length to accommodate up to 20 litre containers. Base complete with clamp suitable for locating containers from 1 litre to 20 litre capacity. Drive motor increased safety for hazardous locations to Ex`e` Class 1, Zone 1 requirements or Ex’D’ for inverter type and suitable for any voltage world wide AC electricity supply. Unit with Quality polyurethane paint finish.

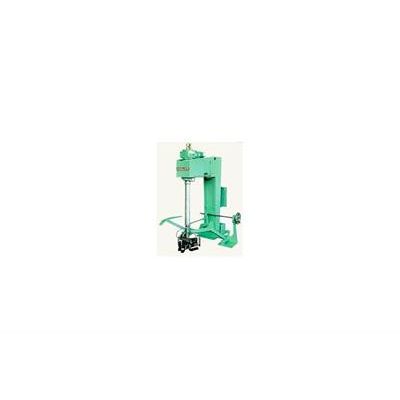

Heavy duty construction. Available in both Mechanical and Inverter Variable speed drives motor increased safety for hazardous locations to Class 1 Zone 1 requirements. Typical working Speed range 410-3280 rpm with speed indication. High performance stainless steel 200 or 250mm diameter cavitation rotor with rotor bosses & nut. Disperser head with twin columns supported in cast iron bearings. Counter balanced head with finger-tip manual elevation and height lock. Available with shaft guard, elevating interlock, and screw or chain type tub clamps, all with limit switches to interlock with disperser drive motor. Quality polyurethane paint finish.

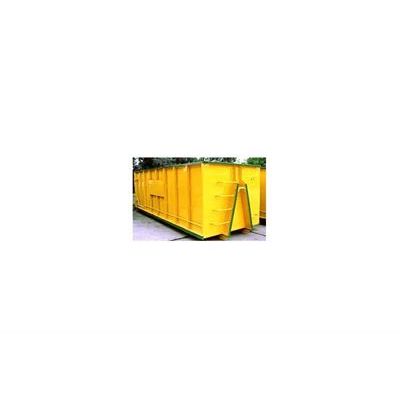

Portable Compactor / container
. 8.5 cubic metre to 25 cubic metre
. Suitable for liquids, sludge etc.Option of 240 or 660 cart lifter
. Complete with safety guarding and safety interlocks.

Container only removed for emptying
. 8.5 cubic metre to 25 cubic metre. Suitable for non liquid products. Option of 240 or 660 cart lifters. Complete with safety guarding and safety interlocks.

Onslow SORT-ON-THE-MOVE systems have been developed especially for the recycling sector. The recycle body matches the recommendations of Southern Sydney Waste Planning and Managment Board`s report entitled "Best Practice Focus on Waste Collection". WorkCover inspected and granted an approval for the workstation adaptation. Operators empty the separating compartments by means of pneumatically controlled chute doors. Sorting of the material is efficient because the sort platform is located between the worker and the receptacle, elimating the risk of glass breakage on roadways and paths.

Union Process manufactures a broad line of wet and dry grinding Attritors and small media mills. They also offer a wide
assortment of grinding media and provide toll milling and refurbishing services. Union Process is also the leading
manufacturer of Rubber Inks for balloons, swim caps and other rubber products.

More than 45 years manufacturing and developing machinery for the Paint and allied industries have allowed Oliver + Batlle S.A. to offer a wide range of high quality equipment and integral services to the market. Our design and manufacturing method encompasses 4 activities: Agitation, Grinding, Filling and Systems for all kind of products of médium and high viscosity. The study of projects involving production and filling lines including technical advice are included in our services.
