OPP IOT Technical CO.,ltd products
PCB UHF Metal Tag Atom Series

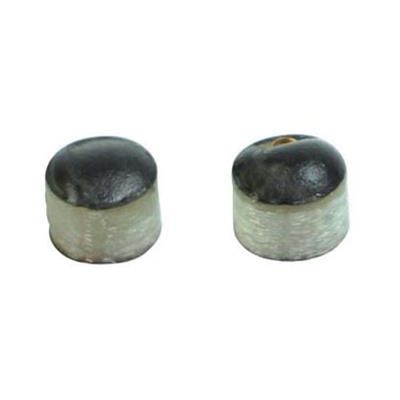

OPPIOT - Model Atom Series OPPD5 - UHF Metal Tag
OPPD5 is a small RFID tag for metal, characterized by small size (dia5mm) and available in UHF frequency (IC chip Alien Higgs 3). This smallest RFID tag for metal OPPD5 has been designed for special RFID applications, like asset management in the industrial context, the maintenance of tools and machinery, the automatic identification of small metal objects. It is possible to customize this small UHF tag with the encoding of the user memory and data association according to customer need.
OPPIOT - Model Atom Series OPP0603 - UHF Metal Tag
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write.
OPPIOT - Model OPP060302 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
OPPIOT - Model OPP0606 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
OPPIOT - Model OPP0803 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write.
OPPIOT - Model OPP1004 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write.
OPPIOT - Model OPPD10 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
OPPIOT - Model OPP1307 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
OPPIOT - Model OPPD13 - UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
