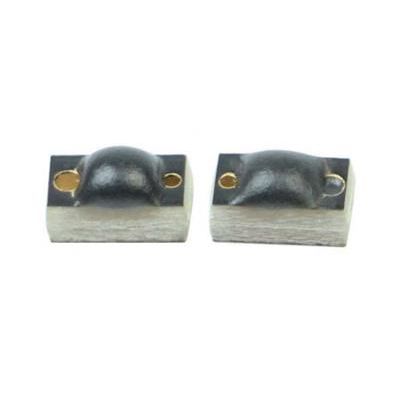

OPPIOT - Model OPP060302 -UHF Metal Tag Atom Series
RFID Protocol : EPC Class1 Gen2, ISO18000-6C. Frequency : US 902-928MHz, EU 865-868MHz. IC type : Alien Higgs-3. Memory : EPC 96bits (Up to 480bits) , USER 512bits, TID64bits. Write Cycles : 100,000times. Functionality : Read/write. Data Retention : Up to 50 Years. Applicable Surface : Metal Surfaces.
Most popular related searches
- Read Range (On Metal) :
- (Fix Reader:ThingMagic M6-E, 36dBm/4W) : 85cm - (US) 902-928MHz, on metal
- 80cm - (EU) 865-868MHz, on metal
- Read Range(On Metal) :
- (Handheld Reader: OP9908,R2000,33dBm/2W)
- : 50cm - (US) 902-928MHz, on metal
- 45cm - (EU) 865-868MHz, on metal
- Warranty : 1 Year
- Physical Specification:
- Size : 6x3mm
- Thickness : 2.0mm without IC bump, 3.0mm with IC bump
- Material : FR4 (PCB)
- Colour : Black (Red, Blue, Green, White)
- Mounting Methods : Adhesive, Screw
- Weight : 0.2g
