Orelis Environnement SAS products

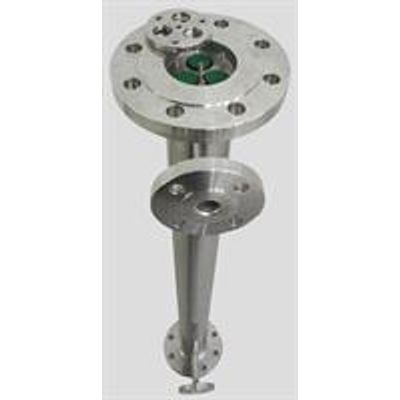

The housings or modules KLEANSEP consist of tubular ceramic membranes and are available in six versions may contain from 1 to 138 membranes. The modules are composed of membranes Kleansep assembled within a casing of stainless steel 316L. The tightness of the membranes in the module is ensured by gaskets available in various polymers (see table (5) of chemical resistance). Connection modules on installation is available in two versions: with flange or camp.

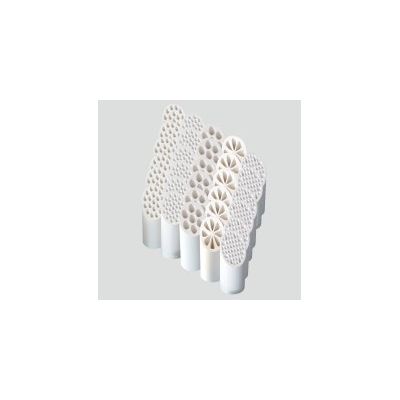

Tubular Ceramic membranes KLEANSEP are robust and offer unrivaled filtration performance. Kleansep ceramic membranes are available in a wide range of cutoff. They are used in the filtration of suspensions, emulsions and solutions. The robustness of the membranes allows the separation of organic and mineral particles, oils, polymers. The ceramic monolith with its highly selective membrane coating provides a high quality of separation.

Our range of membranes Pleiade also comes in modules Persep spirals.

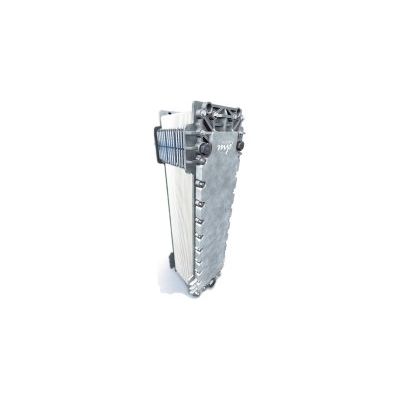

The modules are equipped with MP4 individual permeate collection plate by plate. This type of system allows, after visual inspection of the permeate, isolating a membrane module without stopping.

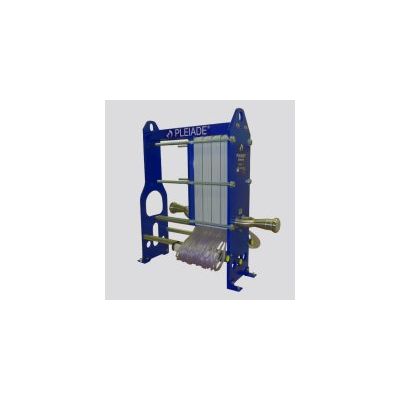

PLEIADE module is a stack of plates is completely adaptable to the volume of products to be filtered. The membrane Pleiade is clipped on a plate, polypropylene cone. The door-plate membranes are separated by nitrile seals. The surfaces of the module in contact with liquid are stainless steel 316L. The modules Pleiade compress the entire plate holder membranes to provide modularity, high performance, reliability, durability and low operating cost.

As its name indicates the MICROKLEANSEP™ module is a smalest replica of KLEANSEP™ module. It develops about 80 cm ² of ceramic membrane.

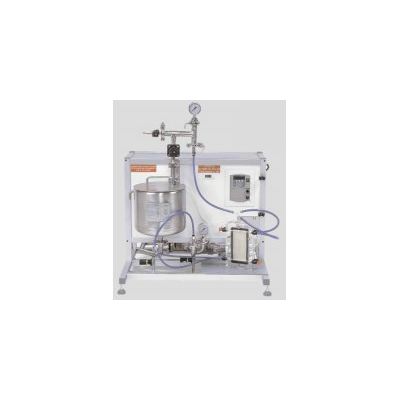

The minipilot works with tubular ceramic membranes and organic membranes, with a tank of 10 liters. Perfect for feasibility studies. 1 Pilot 2 membrane technologies: Microkleansep Module equipped with a ceramic membrane mineral. Rayflow  Module equipped with a flat membrane Pleiade. The versatile driver to test our range of organic membranes (Rayflow) and ceramic membranes (MicroKleansep).

The PLEIADE Rayflow  is an ultrafiltration module type plan, specially designed for the production of small quantities. Versatile, adaptable and very fast, compact module is the ideal tool for laboratory research.

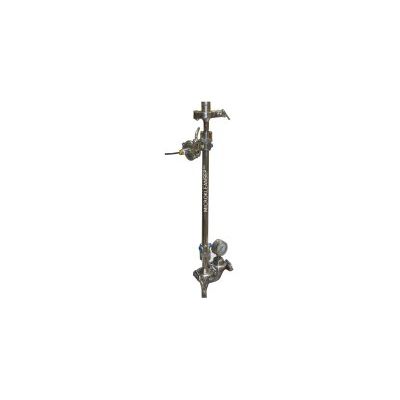

Micro Kleansep module uses ceramic membranes length 400 mm, outside diameter 10 mm and 6 mm inside. Specially designed for the production of small quantities. It is quickly adaptable and very compact, this module is the ideal tool for laboratory research.

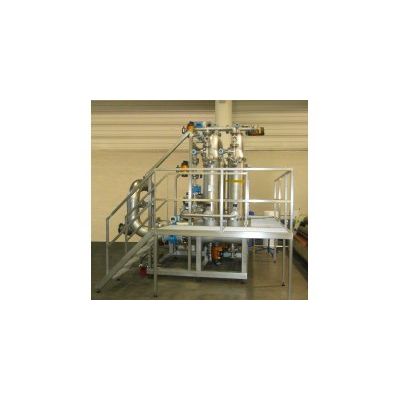

With the Kleansep UF loop in ceramics membranes: Compliance with standards and produced water requirements have never been easier!
