Orthos Liquid Systems, Inc. products

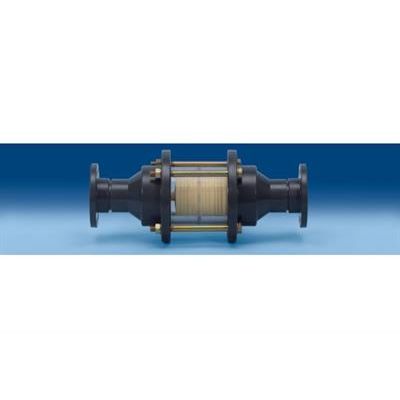

A resin trap is always there to protect you against losses – gradual resin loss that may escape your notice as well as a catastrophe that sends a large amount of resin down the line unexpectedly.

The Centurion monolithic underdrain delivers to utilities their demands of resiliency, reliability, and permanency with a life cycle cost that cannot be beaten.  Our robust, yet flexible, design provides an optimal solution for conventional water treatment, wastewater tertiary filtration, biologically active filtration, GAC adsorption and ion exchange, as well as denitrification.

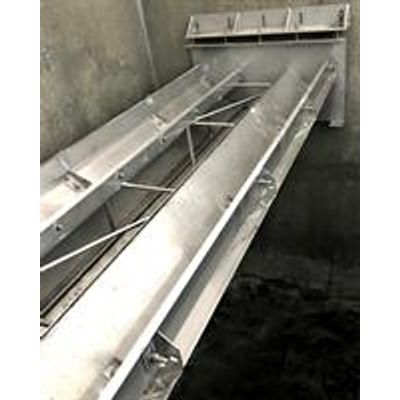

Poseidon Filtration Systems® Ortho-Wash™ process combines air scour and backwash to vigorously clean filtration media while lowering backwash rates and waste volumes. Ortho-Wash baffles, integrally-mounted as part of the backwash trough, prevent media loss by deflecting air and providing an adjacent quiescent volume to settle out lightweight anthracite or GAC. Negligible media loss occurs when air scouring and backwashing at prescribed rates. Ortho-Wash troughs with baffles are constructed of either 304 or 316 stainless steel to provide durability and maintenance-free service.

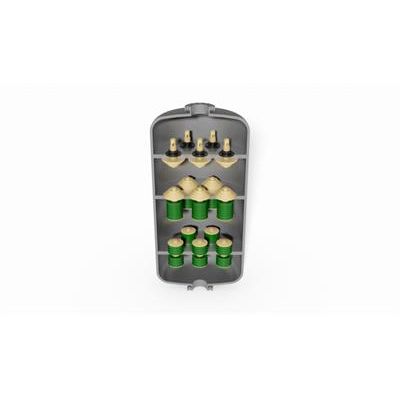

Primarily used in pressure vessels, false plate underdrains are the most straight-forward type of nozzle-based underdrain. Nozzles are affixed onto the underdrain plate using various methods (e.g., expanding ring, backup nut), depending on the design requirements and physical limitations.

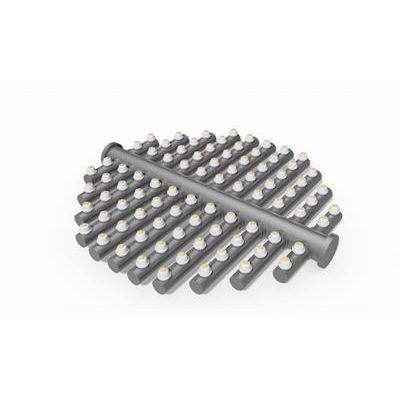

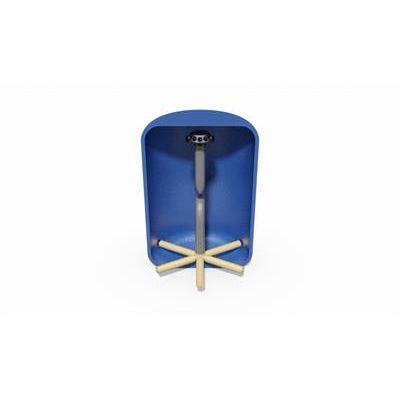

ORTHOS manufacturers tank internals for smaller, commercial-sized applications, such as swimming pool filters and water softeners. Our hub and laterals, tank heads, distributors, and drains are used for both collection and distribution systems.

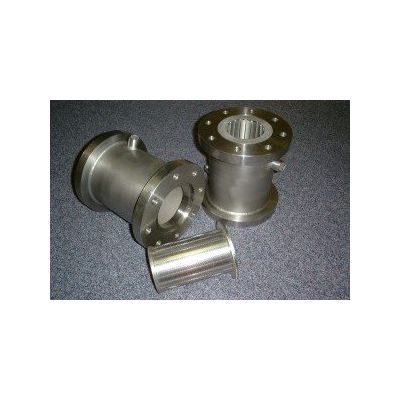

A resin trap is always there to protect you against losses – gradual resin loss that may escape your notice as well as a catastrophe that sends a large amount of resin down the line unexpectedly. Orthos resin traps are designed manufactured to meet your specific needs. Our flexibility in design has created many options for reliable and cost-effective construction. Whether you choose plastics, stainless steel, or exotic alloy options, the savings you realize in terms of resin retention and prevented system downtime will make the cost of the traps insignificant.

SCHLICK full cone nozzles ensure reproducible results. Spray pattern:  Circular or square full cone. Spray Angle:  30 – 120 degrees (customized designs from 5-140 degrees available). Capacities of 0.5 – 60000 l/min. Very even, circular or rectangular full cone. Blockage-resistant. Reproducible results. Very wide range of applications. Available with an additional head screw thread for screwing into a container, flange or pipe. Extremely easy installation.

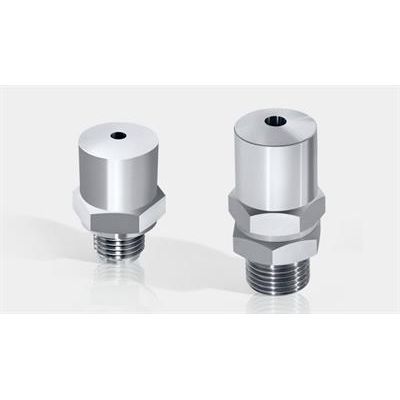

High capacity and constant spray pattern: Spray Pattern:  Circular hollow-cone. Spray Angle:  15, 30, 45, 60, 70, 78, 90, 120 degrees available (custom angles possible). Orafices: 0.3mm – 60mm. Capacity:  0.03 – 1400 l/min @ 3 bar of pressure. Designed for critical and extremely critical pressure relationships. Maximum reproducibility. Extremely easy installation/de-installation. Very wide range of applications.

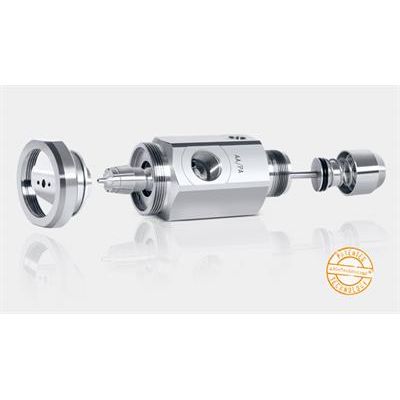

930 series – For all your industrial coating applications: Spray pattern: Oval flat-jet. Spray Angle: 10 – 90 degrees. Droplet size:  10 – 150 µm. Capacities of 0.016 – 1.5 l/min. Completely homogeneous and reproducible spray results. Extremely easy to adjust for maximum flexibility. Significant reduction in maintenance downtimes thanks to easy access to all components. Wide range of installation options thanks to modular construction. Maximum energy saving through adjustable pattern air. Functional components with a surface quality of Ra < 0.8. (also available as designs conforming to FDA).
