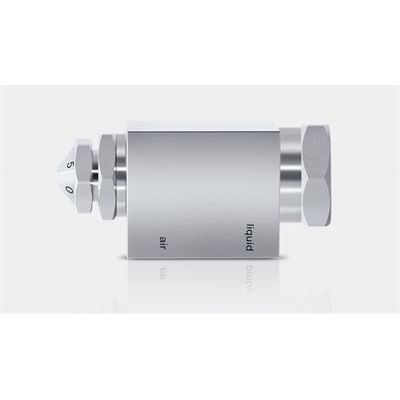

Model 970 Series -Full Cone Nozzles
970 Series – The ultimate nozzle specially for the lab. Spray pattern: circular full-cone (standard air cap): oval flat spray (flat spray cap). Spray angle:approx. 10° – 40° (standard air cap): max. 70° (flat spray cap). Droplet size:10 – 50 µm. Orifices:0.5 / 0.8 / 1.0 / 1.2 mm customized bore sizes 0.3 – 0.8 mm possible: customized design S4 max. 1.2 mm.
Most popular related searches
- Capacity:0.05 – 0.5 l/min
- minimum (S8): 0,028 l/h maximum (S4): 30 l/h
- Atomising air pressure:from 0.3 bar
- The standard air cap and flat spray cap can be quickly and simply changed by hand
- Finest atomization with drop size smaller than 10 micrometres possible
- Optimal spray result through precision adjustment of the air flow rate
- Extremely easy to adjust for maximum flexibility
- Significant reduction in maintenance downtimes thanks to easy access to all components
- Wide range of installation options thanks to modular construction
- Functional components with a surface quality of Ra < 0.8 (also available as designs conforming to FDA)
