Papantonatos S.A. products

PAPANTONATOS S.A. offers a complete range of wastewater pumps up to 115kW.  PXFLOW pumps have been specifically designed to be installation and maintenance friendly. They introduce a whole suite of features that make them the most useful and versatile pumps on the market

The PXGRIND2 pumps are equipped with a grinding system that effectively reduces all destructible solid pieces and fibrous materials, such as paper, textile, plastics, etc into small particles so they can be led away through pipes of relatively small diameter.

Papantonatos booster pumps use the technology developed to fit narrow wells. In a similar manner they can be adapted into an existing pipeline to operate as a booster pump.

PXchopper pumps are equipped with a chopping system,at the inlet to the pump. The chopping system can able to cut particles of any shape of proportion cutting up and expelling any destructible solid body in the waste-water thanks to an efficient chopping system made in stainless steel with  hardness 55 HRC

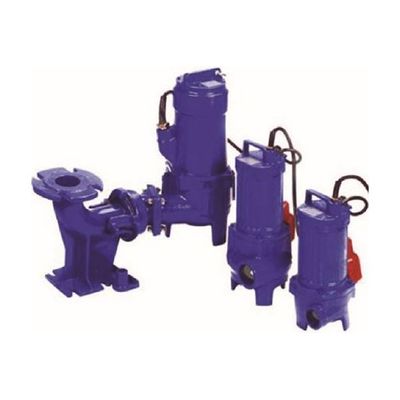

The PX0 and PX1-65 pumps are made of cast iron and are equipped with a vortex impeller that is designed for pumping wastewater and other contaminated liquids. The PX0 series, (single phase voltage configuration), is available with float switches and thermal protection or without them. The three phase voltage configuration can also be equipped with thermal protection upon the customer’s request.

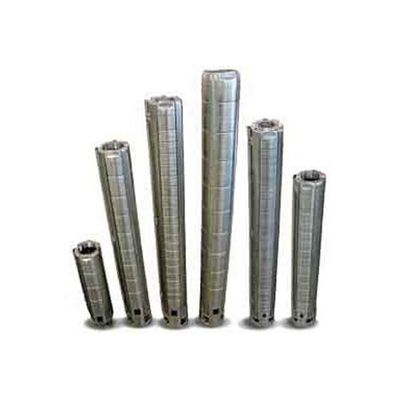

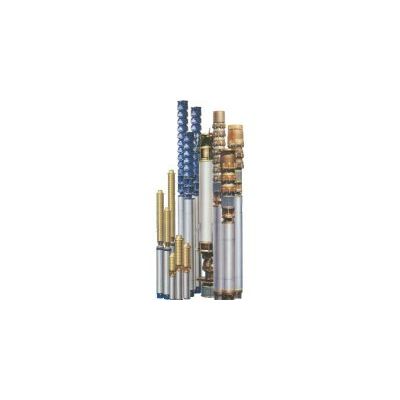

BRITEFIL-PAPANTONATOS submersible pumps are used for raw water supply, irrigation systems, groundwater lowering, pressure boosting and various industrial applications.

Epoxy coated aluminum motor stator casing. Epoxy coated aluminum outer casing. impeller in (410 Nitride Hardened or in SS 316). Outlet, strainer and hardware in SS 304. Double mechanical seals. Three thermal overload switches. Build in thermal protectors wired directly to built in contactor (S type). Field adjustable nitride rubber-lined diffuser/wear plate. Zinc Anodes. Slim line with outlet from the center (C type). Available in complete in stainless steel (C type).

Pleuger submersible motors have been providing succesful and reliable service since 1929. The three-phase motors are water-filled AC-Squirrel cage induction motors. Lubrication and cooling is provided by a filling of potable water or with a mixture of environmentally safe anti-freeze. The corrosion resistant stainless steel stator contains the aging resistant, waterproof insulated windings of high dielectric strength.
