Paratronic products

Water and Environment- Lightning protection

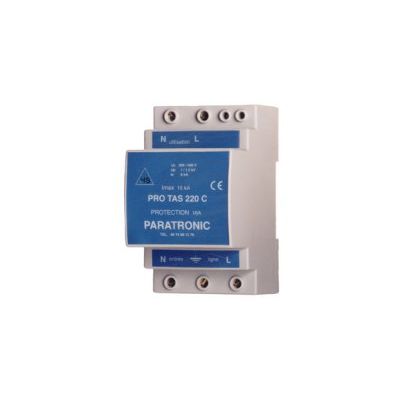

Supply Protections Electronic Equipment

Arresters for the protection of electronic equipment: Powered BT (400 or 230) or TBT (12 to 48V).

Water and Environment- Measurement Sensors- Pressure Transmitters

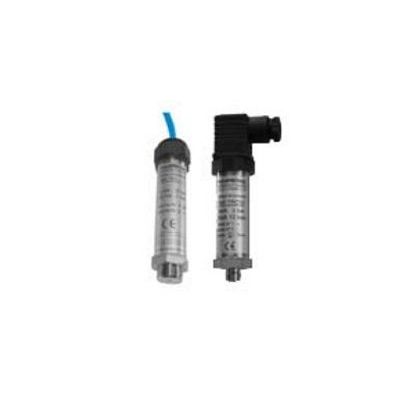

Model TPC - Pressure Transmitters

The TPC PARATRONIC sensors are designed for level or pressure of liquids pipeline measurement. Their designs and their options allow easy operation. Their use with aggressive liquids (seawater, low or high pH ...) Does not undermine the proper functioning. PERFORMANCE and SAFETY. Placed in a 316 L stainless steel body, piezo-resistive technology combined with PARATRONIC recognized quality electronic , confer their technical and economic performance. Available in 1/4 Gas (8-13) or evil half (15-21) Gas wrong, they fit over the existing piqueges. For applications in humid environments submersible, the IP68 option guarantees the durability of the sensors.

Water and Environment- Airborne Sensors

Radar Level Sensors

Designed to take measurements in natural environments.

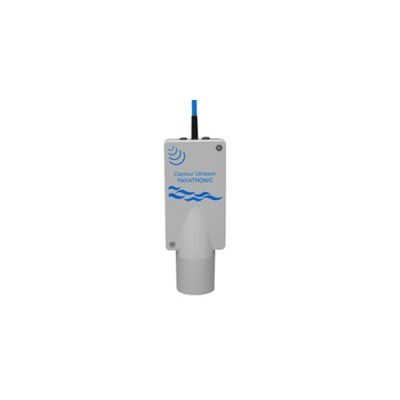

Ultrasonic Level Sensors

Applications: Simple solution for contactless level measurements. Reservoirs, sewage works, storm outlets, discharge channels are sites to which PARATRONIC ultrasonic sensors are perfectly suited. Option for servo-control of pumps by remote module. More than 5000 sites already equipped.

Water and Environment- Transmissions

Model TBR - Radio Transmitters

Radio transmitters autonomous or low-consumption

Water and Environment- Measurement Sensors- Immersed Sensors

Model MPXF - Small Diameter Sensor Immersed

Applications: Immersed probes MPXF, by their small diameter (less than 18mm) are particularly intended for level measurement in wells and piezometers.

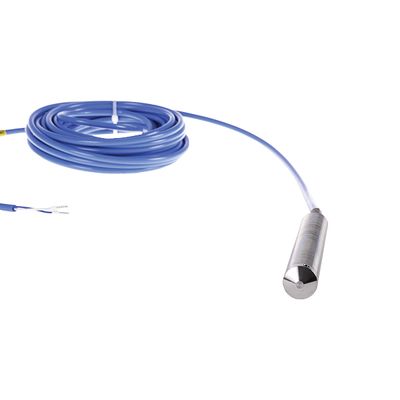

Model CNR - Immersed Sensors

Tank level sensor for Drinking water tank and sanitation

Sensors - Submersible Probes - Level Probe for Drinking Water / Waste Water

Paratronic - Sensors for Level Probe CNR + Cabsond

The CNR are immersed piezometric level sensors/probes for measurement in drinking water, sewage and rivers. Their measuring ranges, or full scale, extend from 0.5 m to 30 m of water, to be specified according to requirements. The sensors deliver a 4/20 mA signal or 20/4 mA as an option, on two wires, without capillary (CABSOND or CABFOR), powered from 6 to 38 Vdc, with a diameter of 21 mm. Their bodies are made of passivated 316L stainless steel. They have a good lightning strike resistance (higher than 20 kA), they are ACS certified (Attestation de Conformité Sanitaire) and are delivered with a cable anchor clampThey are ACS certified and are delivered with a plug for easy installation.
